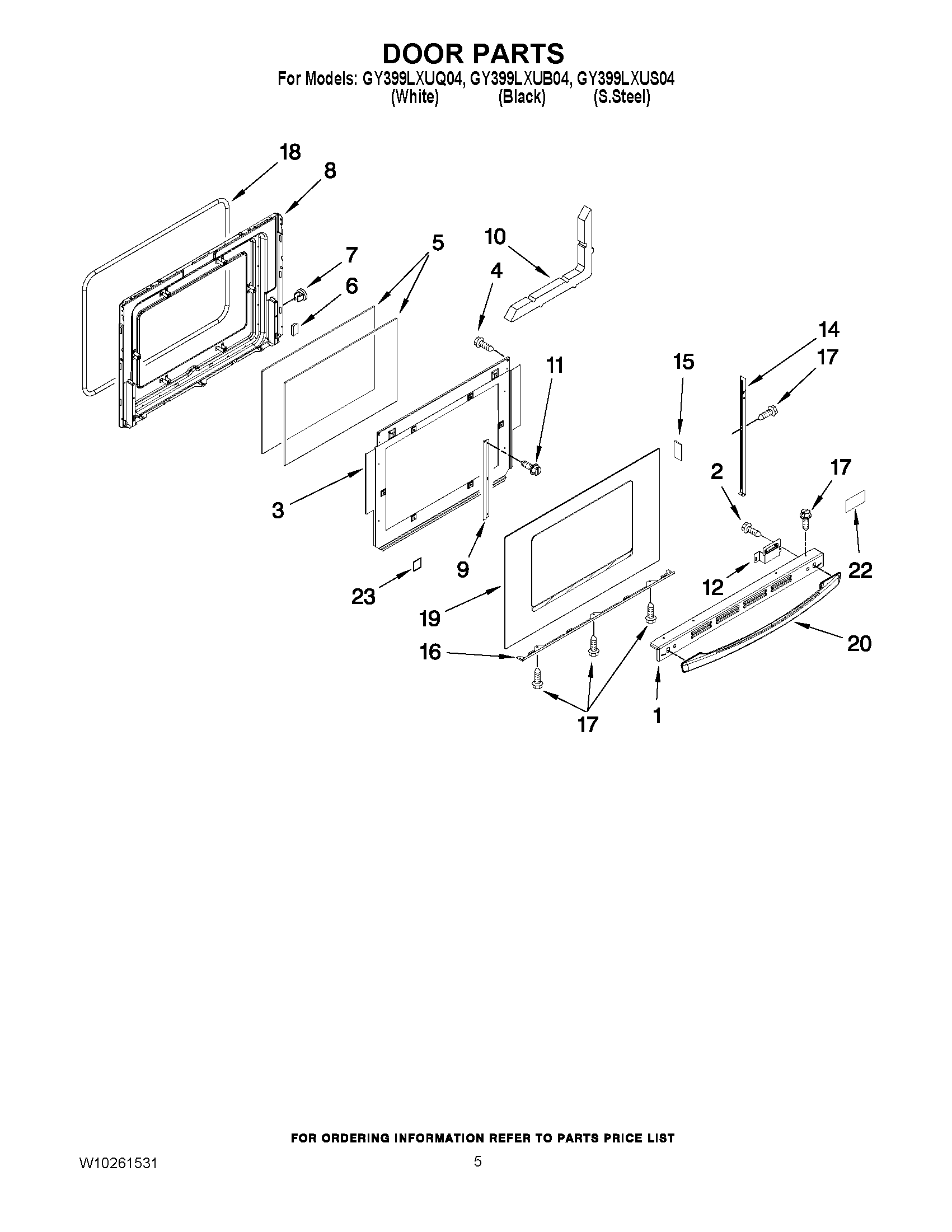

GY399LXUB04 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (Black)
1	Trim, Door Top (S.Steel)
1	WP3608F141-71 Whirlpool Door Trim
2	W11396735 Whirlpool Screw
3	3601F373-51 Whirlpool Baffle
4	SCREW
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74005546 Whirlpool RU Spacer
7	WP74001574 Whirlpool Snap Nut
8	Lining, Door
9	3801F886-51 Whirlpool Mounting Bracket
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	3801F832-45 Whirlpool Bracket
12	3801F831-45 Whirlpool Bracket Assembly
14	TRIM, DOOR SIDE (WHITE, LEFT)
14	WP3608F116-71 Whirlpool Door Trim
14	WP3608F117-70 Whirlpool Door Trim
14	WP3608F116-70 Whirlpool Door Trim
15	FOLLOWING PARTS NOT ILLUSTRATED,
16	WP3807F708-71 Whirlpool Support
16	Trim, Door Bottom (Black)
17	W11111008 Whirlpool Screw
17	W10828565 Whirlpool Screw
18	GASKT-DOOR OVEN
19	GLASS, DOOR (S.STEEL) (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
19	GLASS, DOOR (WHITE)
20	WPW10118430 Whirlpool Door Handle
20	WPW10144883 Whirlpool Door Handle
20	W10118431 Whirlpool Door Handle
22	NAMEPLATE
23	Spacer, Rubber
