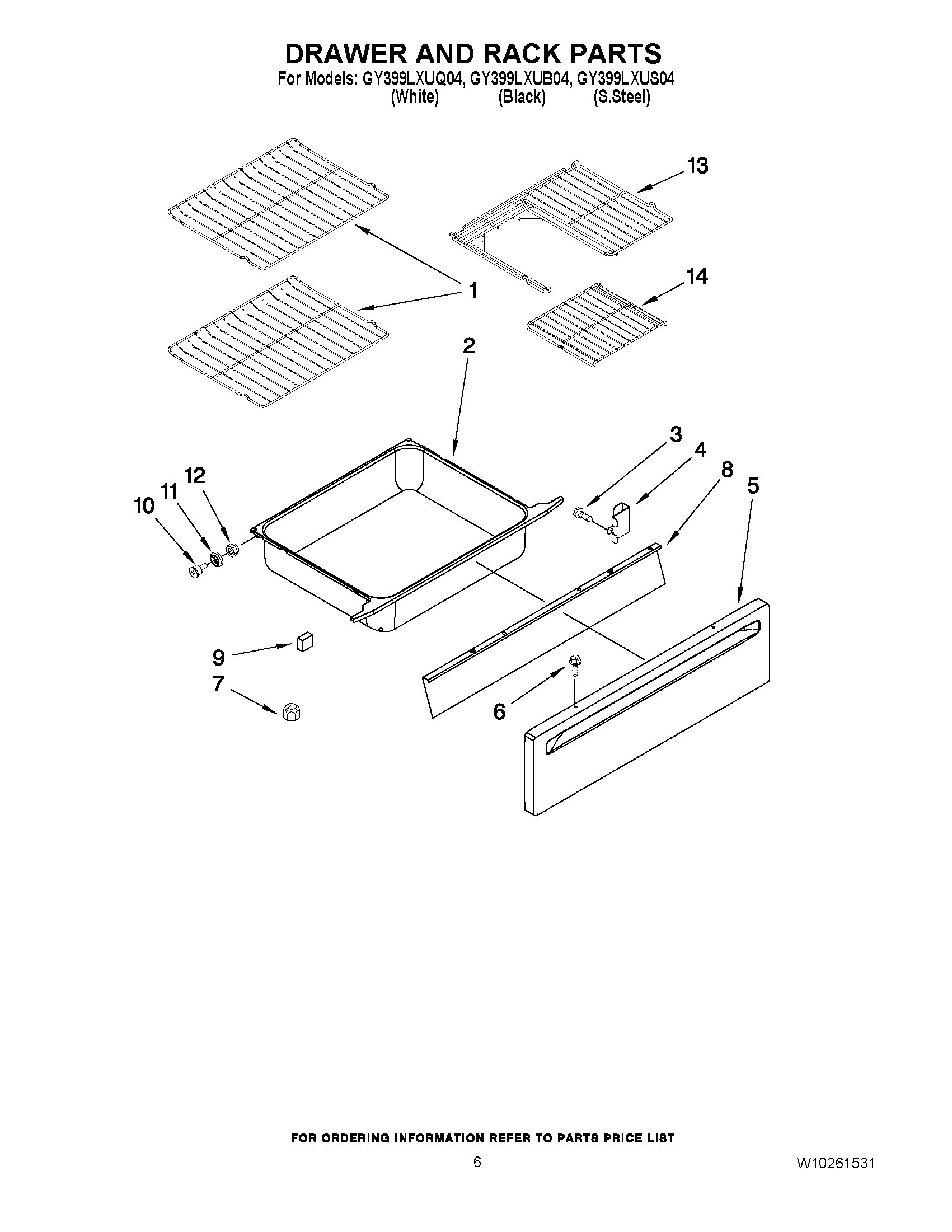

GY399LXUB04 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	Rack, Oven (2)
2	WP3405F037-80 Whirlpool Utility Drawer
3	WP7101P072-60 Whirlpool Screw
4	Bracket, Drawer
5	Panel, Drawer (White)
5	Panel, Drawer (Black)
5	Panel, Drawer (S.Steel)
6	W10828565 Whirlpool Screw
6	WP98008544 Whirlpool Screw Assembly
7	74005230 Whirlpool Oven Lock Nut (8-32)
8	Lining, Drawer
9	WP74005546 Whirlpool RU Spacer
10	WP74004078 Whirlpool Door Roller
11	Shaft, Roller (2)
12	WP488130 Whirlpool Air Conditioner Nut
13	WPW10273862 Whirlpool Oven Rack
14	Insert, Rack
