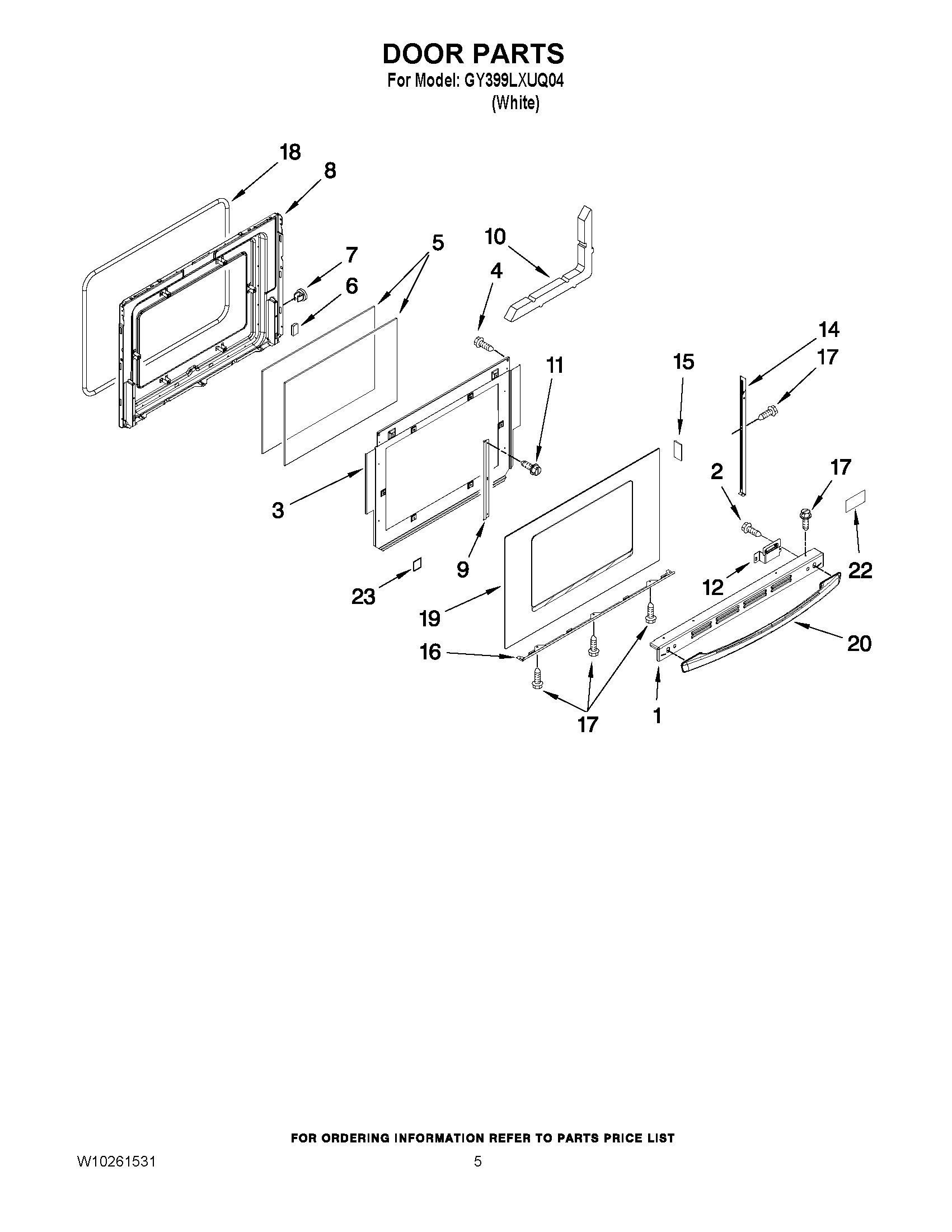

GY399LXUQ04 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	W11396735 Whirlpool Screw
3	Baffel, Retainer
4	Screw
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Left)
12	Bracket, Handle (Right)
14	TRIM, DOOR SIDE (BLACK, RIGHT)
14	TRIM, DOOR SIDE (WHITE, LEFT)
15	CABINET (NOT A SERVICEABLE PART)
16	Trim, Door Bottom
17	SCREW, HANDLE
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR
20	WPW10118430 Whirlpool Door Handle
22	NAMEPLATE
23	Spacer, Rubber
