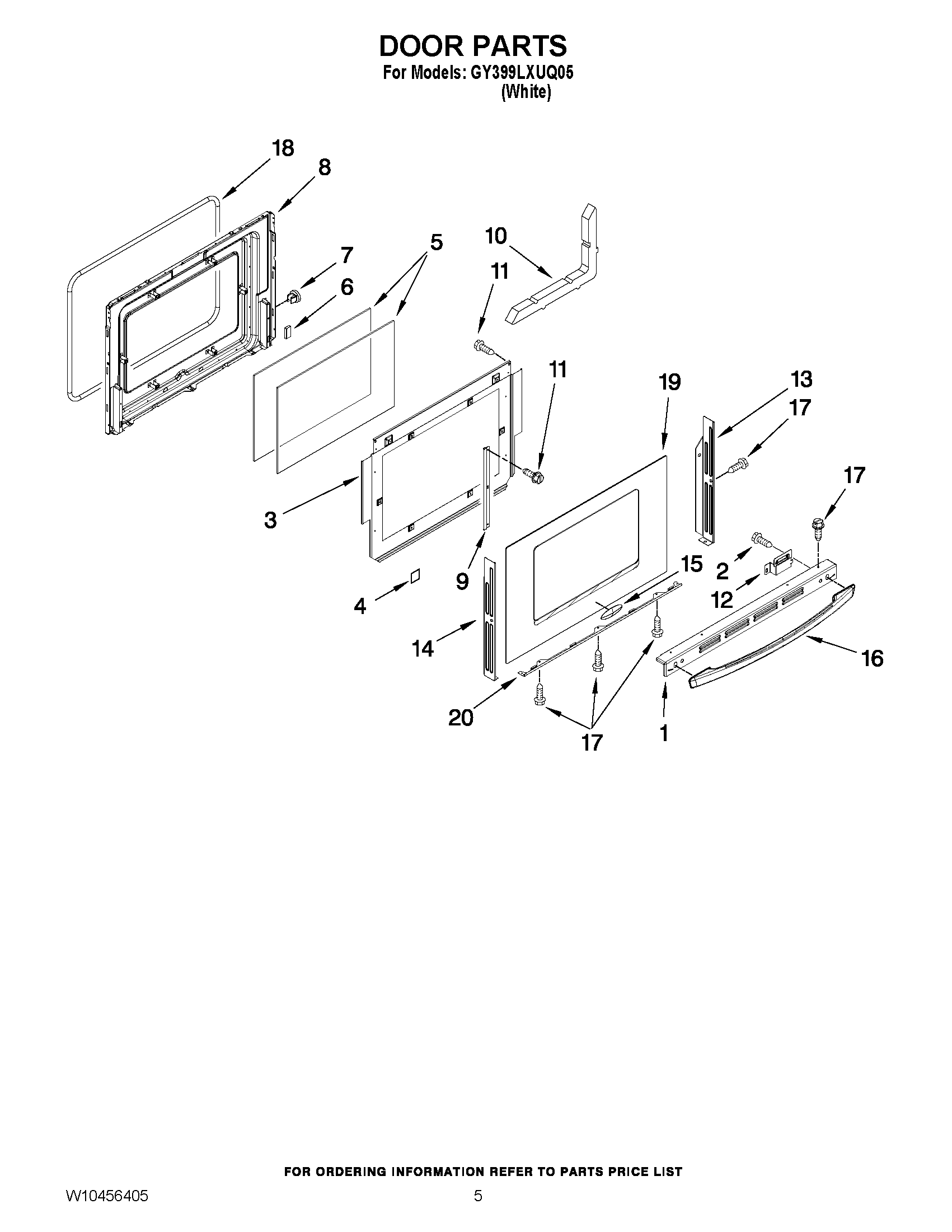

GY399LXUQ05 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	W11396735 Whirlpool Screw
3	Baffel, Retainer
4	Spacer, Rubber
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	TRIM, DOOR SIDE (BLACK, RIGHT)
14	TRIM, DOOR SIDE (BLACK, LEFT)
15	NAMEPLATE
16	WPW10118430 Whirlpool Door Handle
17	SCREW, HANDLE
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR
20	Trim, Door Bottom
