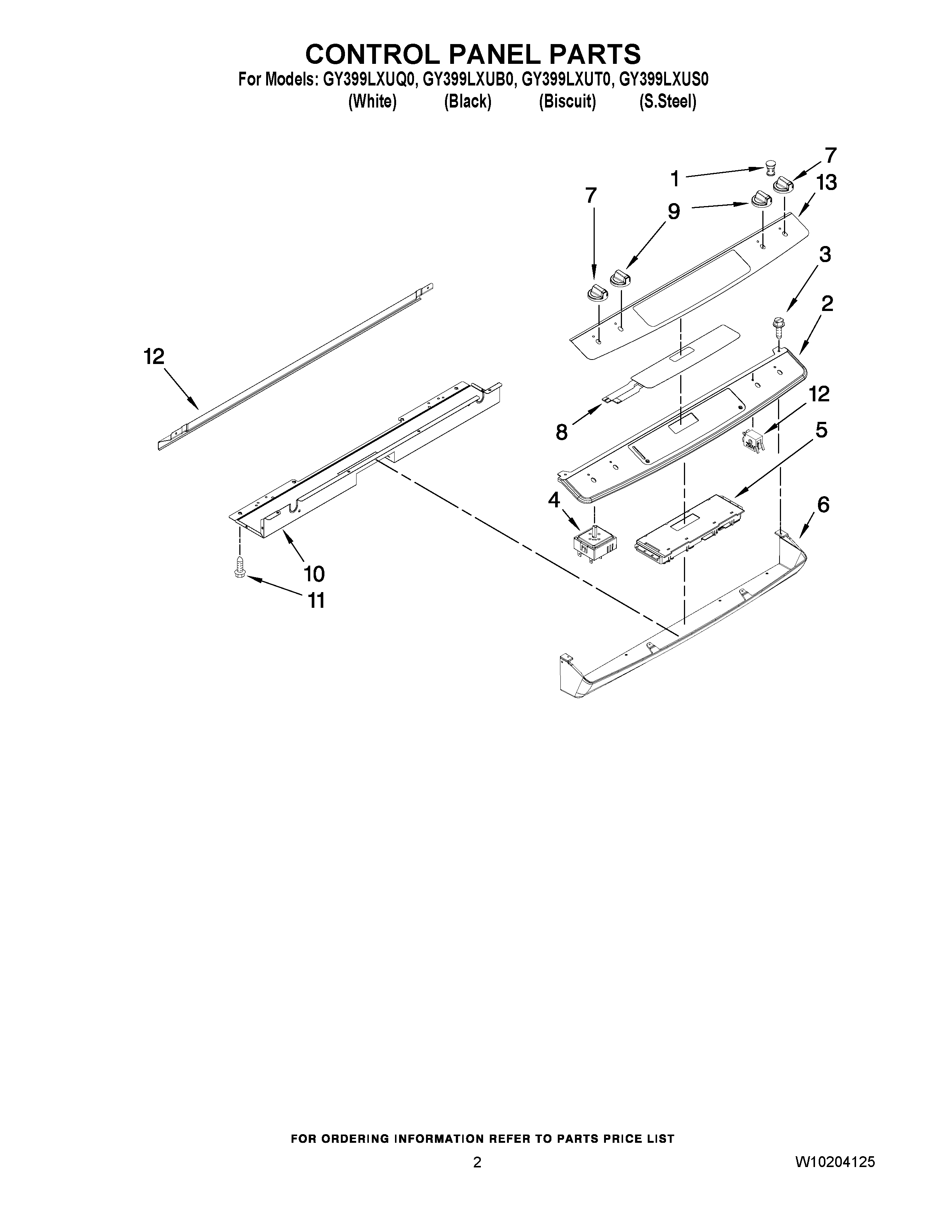

GY399LXUS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	WP22001948 Whirlpool Indicator Lens
2	Panel, Control (Black)
2	Panel, Control (S.Steel)
2	Panel, Control (Biscuit)
2	Panel, Control (White)
3	WPL 7101P30960
4	Switch, Infinite 6“ (LF, RR)
4	SWITCH-ELMNT
5	WP8507P390-60 Whirlpool Control Board and Clock
6	PANEL,CONTROL(LWR) (BLACK)
6	PANEL,CONTROL(LWR) (WHITE)
6	PANEL,CONTROL(LWR) (BISCUIT)
7	KNOB (WHITE)
7	KNOB (BLACK)
7	KNOB (LF,RR) (BISCUIT)
8	Switch, Membrane (Black)
8	WPW10207932 Whirlpool Membrane Switch
8	SWITCH, MEMBRANE (WHITE)
9	KNOB (RF,LR) (BISCUIT)
9	KNOB, DUAL (WHITE)
9	KNOB, DUAL (BLACK)
10	Support, Control Panel
11	WP90767 Whirlpool Screw
12	WP74004153 Whirlpool Indicator Light
13	Overlay (S.Steel Mdl Only)
