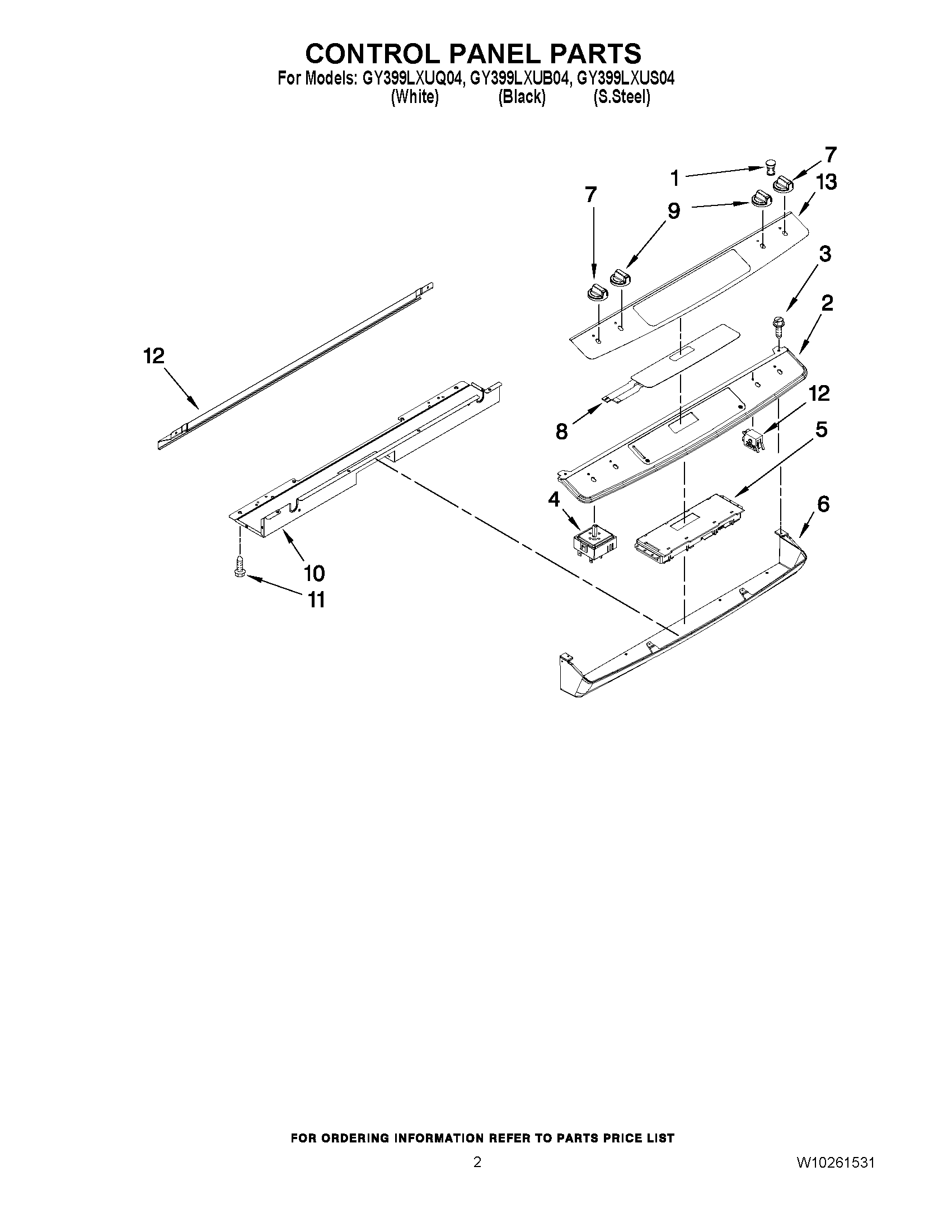

GY399LXUS04 02 – CONTROL PANEL PARTS

Products

Position	Product
1	WP22001948 Whirlpool Indicator Lens
2	Panel, Control (S.Steel)
2	WP7720P536-60 Whirlpool Control Panel
2	Panel, Control (Black)
3	7101P676-60 Whirlpool Screw
4	SWITCH-ELMNT
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	WP8507P392-60-includeCORE Whirlpool WP8507P392-60 Dishwasher Electronic Control Board with Core
6	PANEL,CONTROL(LWR) (BLACK)
6	PANEL,CONTROL(LWR) (WHITE)
7	WP7737P414-60 Whirlpool Knob
7	7737P415-60 Whirlpool Knob
8	WPW10207935 Whirlpool Membrane Switch
8	WPW10207933 Whirlpool Membrane Switch
9	WP7737P417-60 Whirlpool Knob
9	KNOB (RF,LR) (WHITE)
10	SUPPORT, CONTROL PANEL
11	WP90767 Whirlpool Screw
12	WP74004153 Whirlpool Indicator Light
13	Overlay (S.Steel Mdl Only)
