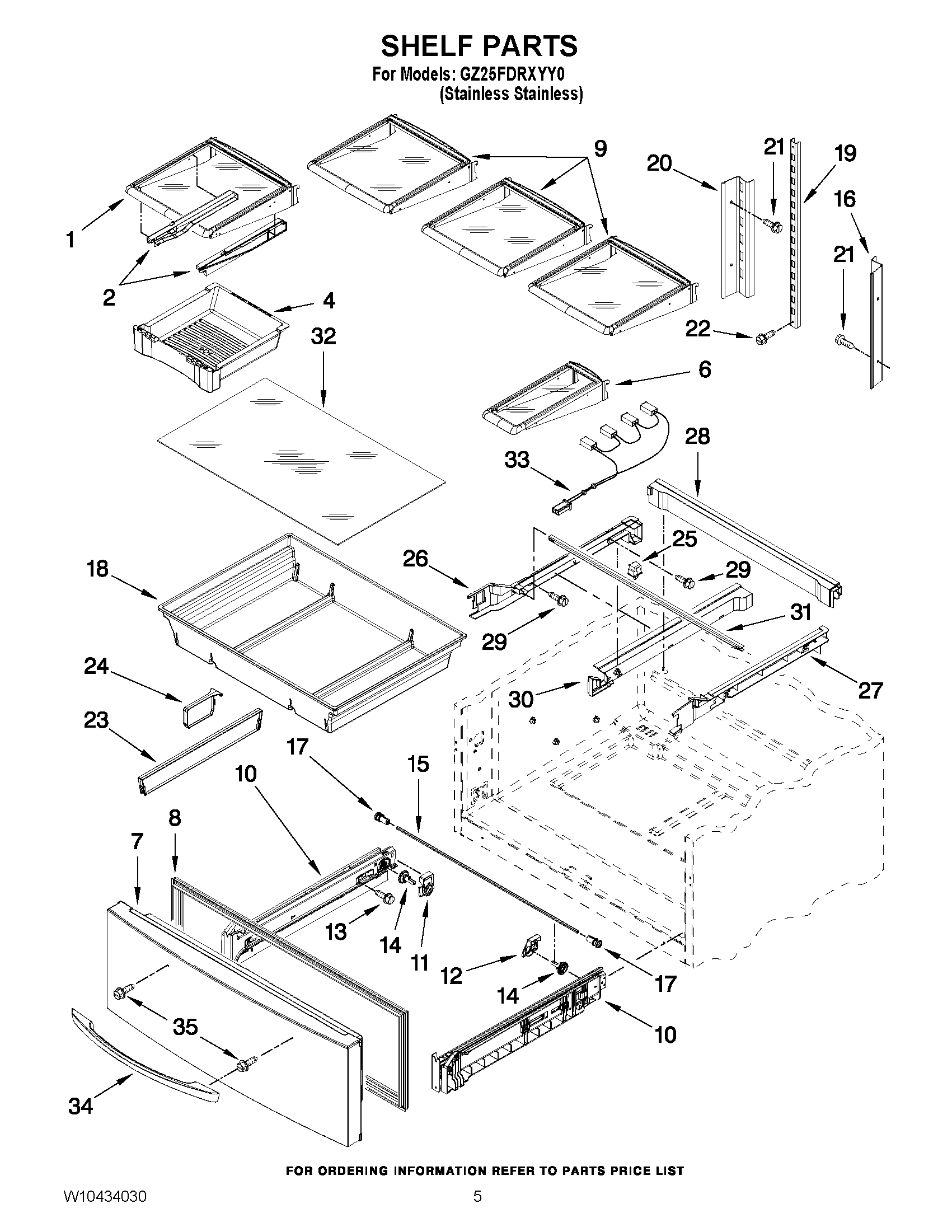

GZ25FDRXYY0 03 – SHELF PARTS

Products

Position	Product
1	WP12883508SP Whirlpool Refrigerator Glass Shelf
2	WPW10194032 Whirlpool Refrigerator Glide
2	WPW10194031 Whirlpool Refrigerator Glide
4	WPW10319333 Whirlpool Refrigerator Snack Pan
6	W11197490 Whirlpool Refrigerator Cantilever Shelf
7	PANTRY DOOR (STAINLESS)
9	W11402525 Whirlpool Glass Shelf
10	W11093714 Whirlpool Refrigerator Adapter
10	W11093713 Whirlpool Refrigerator Adapter
11	GEAR, SPUR
12	W10284709 Whirlpool Refrigerator Cover
12	W10294414 Whirlpool Refrigerator Cover
13	WPW10272364 Whirlpool Refrigerator Screw
14	67006529 Whirlpool Refrigerator Screw
15	W10298176 Whirlpool Refrigerator Shaft
16	W10251965 Whirlpool Refrigerator Ladder
17	WPW10277361 Whirlpool Refrigerator Collar
18	WPW10530656 Whirlpool Refrigerator Utility Pan
19	W10273464 Whirlpool Refrigerator Ladder
20	W10251968 Whirlpool Ladder
21	67006425 Whirlpool Refrigerator Screw
22	W10709795 Whirlpool Refrigerator Screw
23	WPW10285573 Whirlpool Divider
24	DIVIDER-PANTRY-SM
25	W11291138 Whirlpool Refrigerator Door Switch
26	W10311723 Whirlpool Refrigerator Rail
27	W11715934 Whirlpool Rail
28	W10311727 Whirlpool Rail
29	WP98165 Whirlpool Screw
30	W10311725 Whirlpool Refrigerator Cover
31	BRACE-PANTRY
32	WPW10296571 Whirlpool Glass Shelf Assembly
33	W10335721 Whirlpool Refrigerator Harness Switch
34	WPW10223025K Whirlpool Refrigerator Handle
35	WP12992902 Whirlpool Refrigerator Screw
