GZ25FDRXYY0 10 – FREEZER DOOR PARTS

GZ25FDRXYY0 10 – FREEZER DOOR PARTS

Written by

in

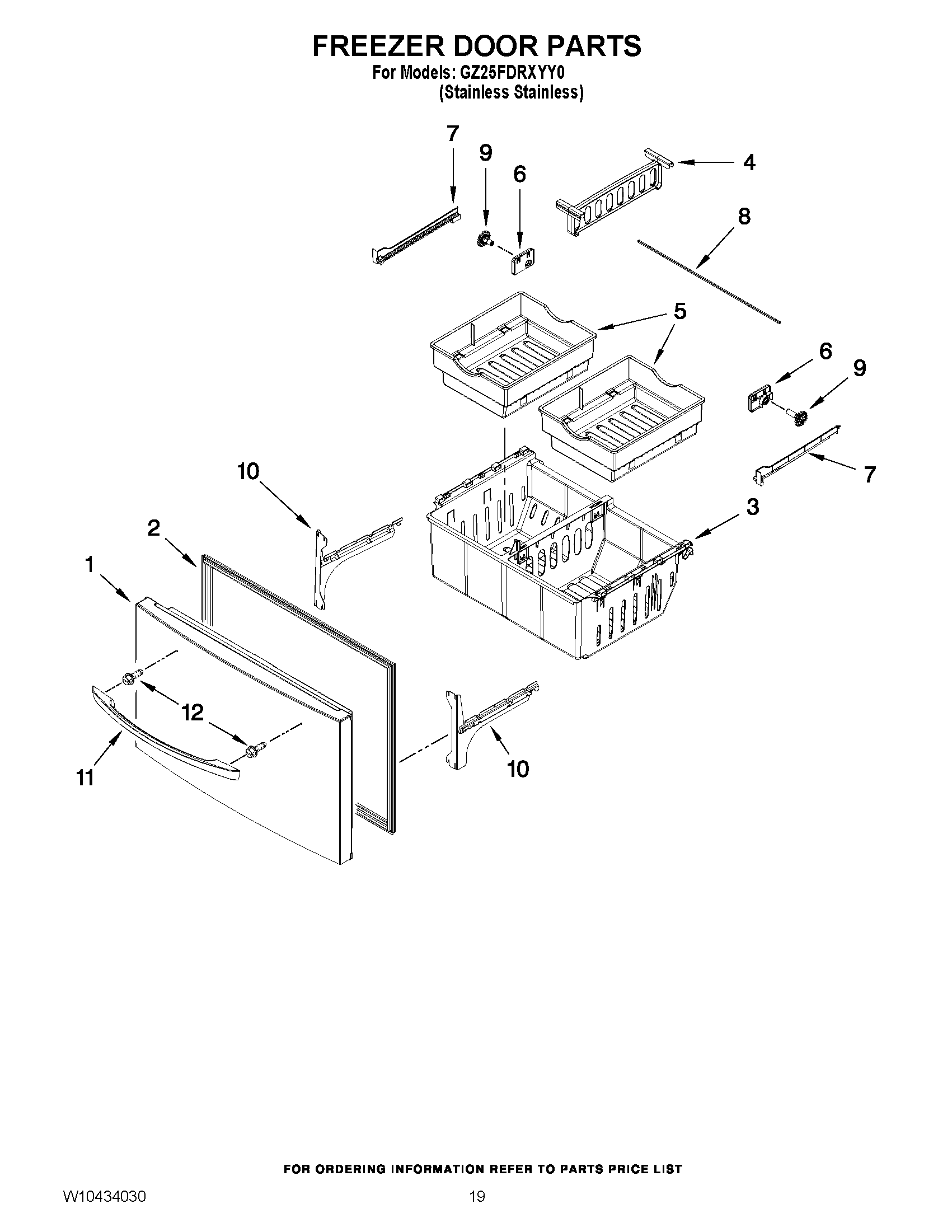

GZ25FDRXYY0 10 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (MONO STAINLESS)
2GASKET-FIP
3WPW10293682 Whirlpool Refrigerator Freezer Bin
4W10146439 Whirlpool Refrigerator Divider
5W11218042 Whirlpool Refrigerator Freezer Basket
6W10348259 Whirlpool Refrigerator Bracket Assembly
6W10348260 Whirlpool Refrigerator Bracket
7W11489993 Whirlpool Refrigerator Rail
7W11489994 Whirlpool Refrigerator Rail
8W11173556 Whirlpool Refrigerator Shaft
9WPW10474715 Whirlpool Refrigerator Gear
9WPW10474716 Whirlpool Refrigerator Gear
10WPW10330993 Whirlpool Refrigerator Bracket
10WPW10330991 Whirlpool Refrigerator Bracket
11WPW10223025K Whirlpool Refrigerator Handle
12WP12992902 Whirlpool Refrigerator Screw
