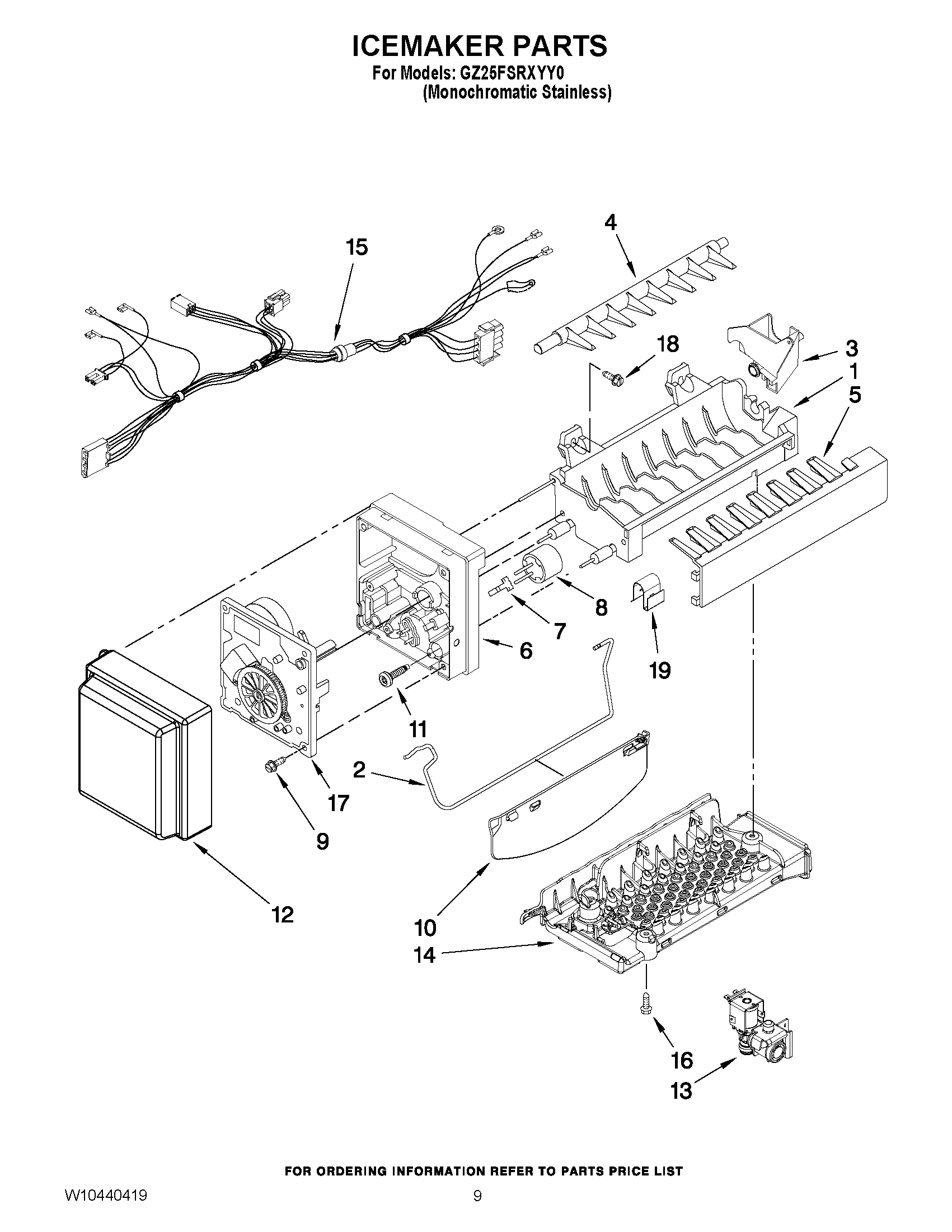

GZ25FSRXYY0 05 – ICEMAKER PARTS

GZ25FSRXYY0 05 – ICEMAKER PARTS

Written by

in

GZ25FSRXYY0 05 – ICEMAKER PARTS

Products

PositionProduct
NIW11033771 Whirlpool Refrigerator Coupling
1WPW10300025 Whirlpool Refrigerator Ice Mold
2WPW10175514 Whirlpool Refrigerator Shut-Off Arm
3W10327050 Whirlpool Refrigerator Cup Fill
4W10318914 Whirlpool Refrigerator Ejector Arm
5WPW10122563 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
9W10001240 Whirlpool Refrigerator Screw
10WPW10121440 Whirlpool Refrigerator Extension
118533917 Whirlpool Refrigerator Screw
12W10884722 Whirlpool Refrigerator Front Cover
13VALVE-INLT REFR
14WPW10312691 Whirlpool Refrigerator Air Baffle
15HARNESS, ICEMAKER
1667006425 Whirlpool Refrigerator Screw
178201515 Whirlpool Refrigerator Motor and Gear Module Kit
18WPW10068250 Whirlpool Dishwasher Screw
19WP628379 Whirlpool Refrigerator Clip
100WPW10300024 Whirlpool Ice Maker
