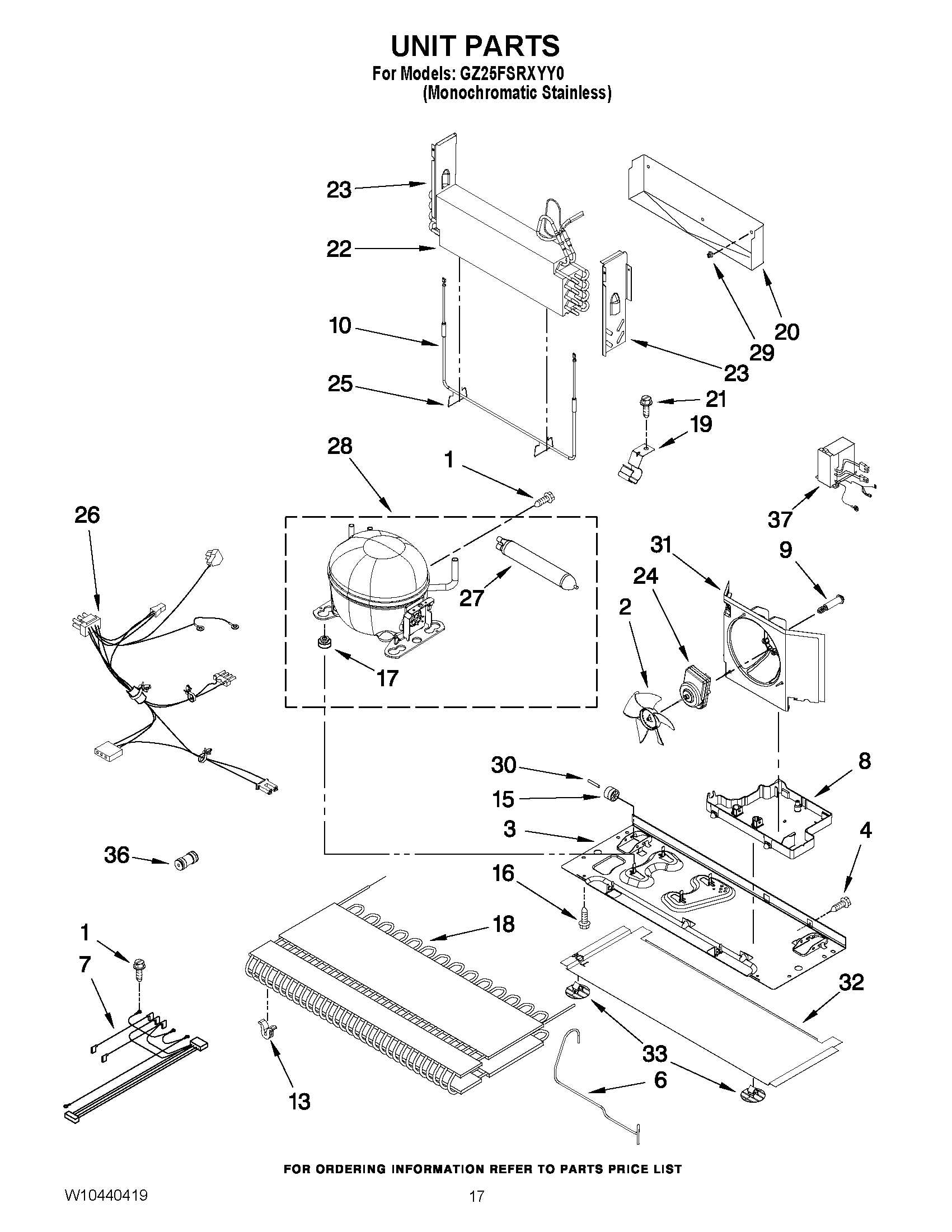

GZ25FSRXYY0 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
6	W10242974 Whirlpool Refrigerator 25" Tube
7	W11334745 Whirlpool Refrigerator Evaporator Fan Motor
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729123 Whirlpool Refrigerator Heater
13	WPW10137529 Whirlpool Refrigerator Grommet
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346415 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	W11686675 Whirlpool Screw
22	W11536253 Whirlpool Refrigerator Evaporator
23	DAM, RETURN (RIGHT HAND)
23	12963002SP Whirlpool Refrigerator Evaporator Support
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	W10303788 Whirlpool Refrigerator Wire Harness
27	DRIER
28	W10276644 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	EXTENSION-BASEPAN
33	W10206339 Whirlpool Fastener
36	WPW10334458 Whirlpool Refrigerator Connector
37	W10893917 Whirlpool Refrigerator Inverter Box
