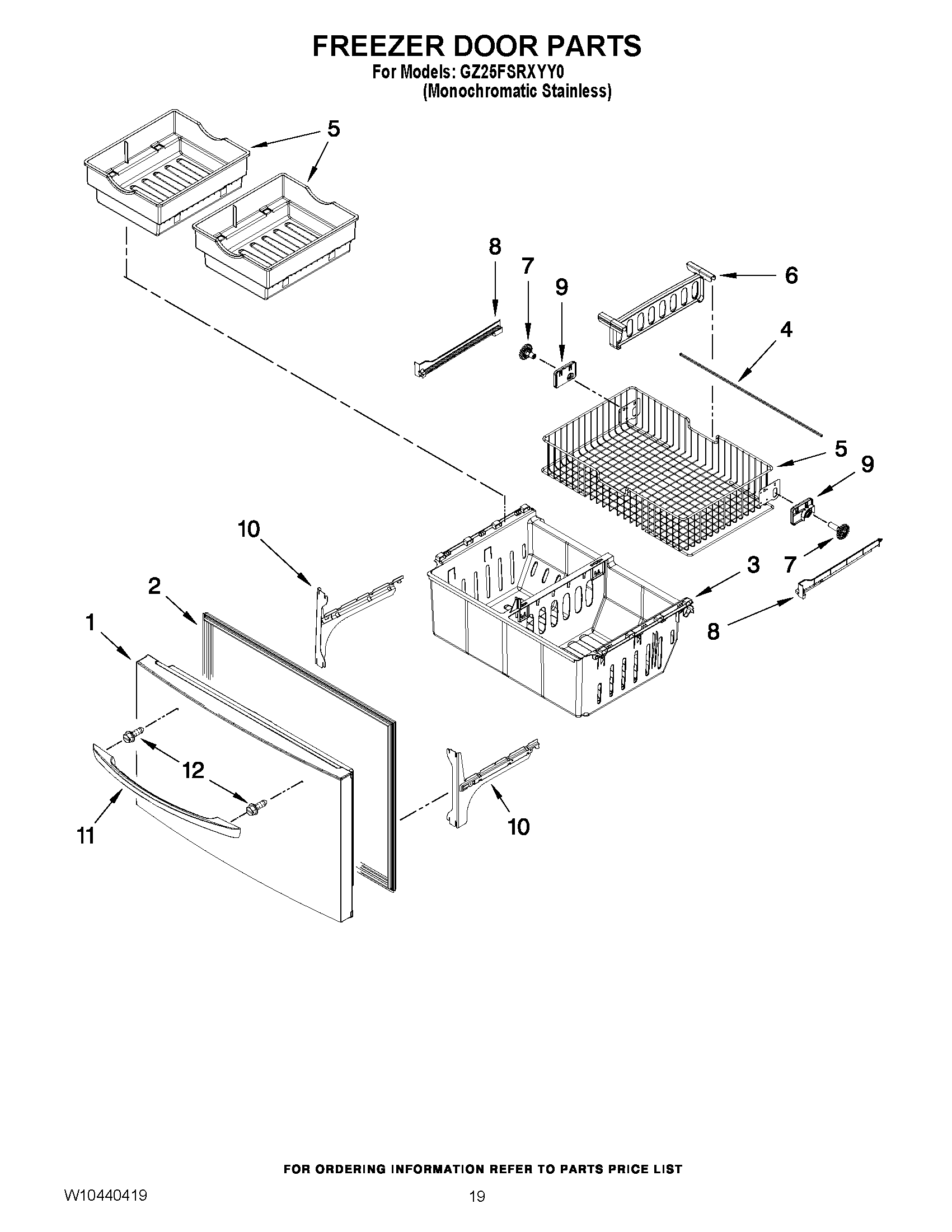

GZ25FSRXYY0 10 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (MONO STAINLESS)
2GASKET-FIP
3WPW10293682 Whirlpool Refrigerator Freezer Bin
4W11173556 Whirlpool Refrigerator Shaft
5W11218042 Whirlpool Refrigerator Freezer Basket
6W10146439 Whirlpool Refrigerator Divider
7WPW10474715 Whirlpool Refrigerator Gear
7WPW10474716 Whirlpool Refrigerator Gear
7WPW10235357 Whirlpool Refrigerator Glide Assembly
8W11489993 Whirlpool Refrigerator Rail
8W11489994 Whirlpool Refrigerator Rail
10WPW10330993 Whirlpool Refrigerator Bracket
10WPW10330991 Whirlpool Refrigerator Bracket
11WPW10223025K Whirlpool Refrigerator Handle
12WP12992902 Whirlpool Refrigerator Screw
