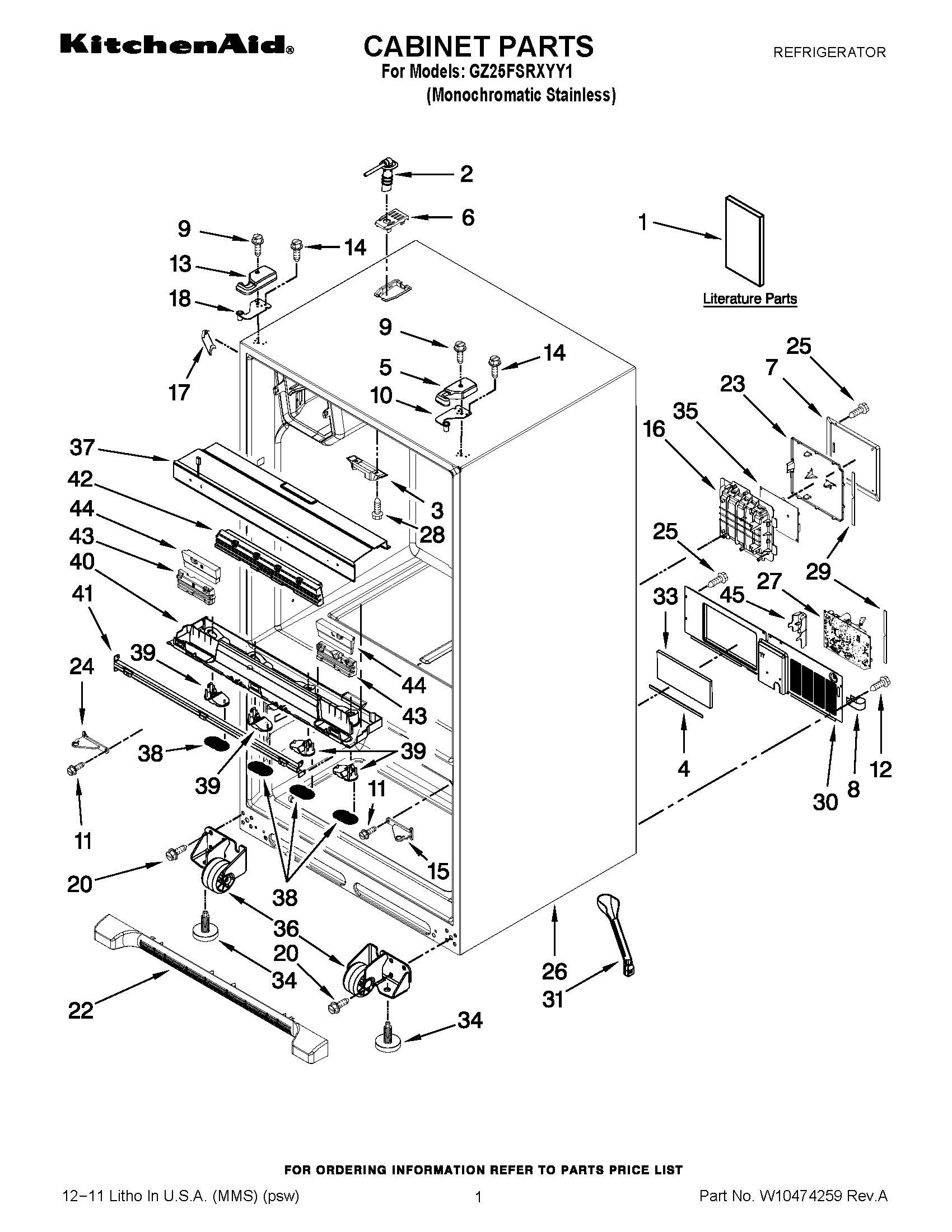

GZ25FSRXYY1 01 – CABINET PARTS

GZ25FSRXYY1 01 – CABINET PARTS

Written by

in

GZ25FSRXYY1 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, ENERGY
1USE & CARE GUIDE
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10191117 Whirlpool Refrigerator Cover
6W10191141 Whirlpool Refrigerator Tube Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WPW10109200 Whirlpool Screw
1267006425 Whirlpool Refrigerator Screw
13WPW10337648 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
16BOX, HV CONTROL
17WP12587703AP Whirlpool Refrigerator Filler
18W11592375 Whirlpool Door Hinge
2067006564 Whirlpool Refrigerator Screw
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10296541 Whirlpool Refrigerator Wire Cover
24W10917988 Whirlpool Refrigerator Door Hinge
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
27WPW10226427 Whirlpool Refrigerator Electronic Control Board
28W10854958 Whirlpool Refrigerator Screw
29GASKET-HV CNTRL-2
30W10211854 Whirlpool Refrigerator Back Cover
31W10619951 Whirlpool Drain Tube with Grommet
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35WPW10404689-includeCORE Whirlpool WPW10404689 Refrigerator Electronic Control Board + Core
36WPW10515762 Whirlpool Refrigerator Cabinet Roller
36WPW10515763 Whirlpool Refrigerator Cabinet Roller
37MULLION-INCL.HEATR (APOLLO GREY)
38W10237349 Whirlpool Refrigerator Light Lens
39W10679370 Whirlpool Refrigerator Module
40W10311719 Whirlpool Refrigerator Housing
41W10323211 Whirlpool Brace
42W10311721 Whirlpool Refrigerator Insulation
43W10316401 Whirlpool Refrigerator Insulation
44WEDGE, SPACER (LEFT HAND & RIGHT HAND)
45W10208592 Whirlpool Refrigerator Valve Cover
