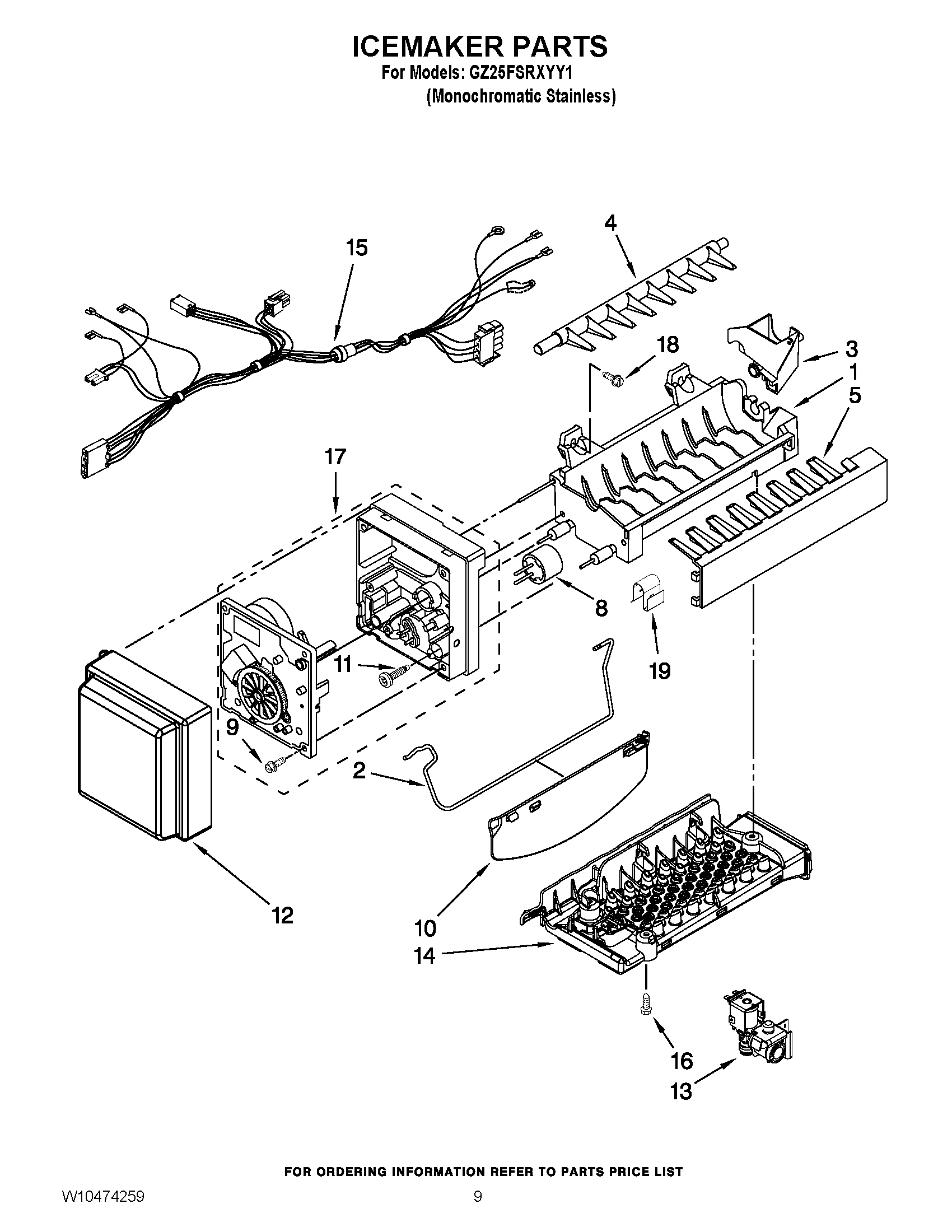

GZ25FSRXYY1 05 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	WPW10300025 Whirlpool Refrigerator Ice Mold
2	WPW10378254 Whirlpool Refrigerator Shut Off Arm
3	W10377998 Whirlpool Refrigerator Cup Fill
4	W10318914 Whirlpool Refrigerator Ejector Arm
5	WPW10122563 Whirlpool Refrigerator Stripper Arm
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	W10001240 Whirlpool Refrigerator Screw
10	WPW10351019 Whirlpool Refrigerator Extension
11	8533917 Whirlpool Refrigerator Screw
12	W10460383 Whirlpool Refrigerator Front Cover
13	VALVE-INLT REFR
14	WPW10312691 Whirlpool Refrigerator Air Baffle
15	W11029433 Whirlpool Refrigerator Wire Harness
16	67006425 Whirlpool Refrigerator Screw
17	W10882923 Whirlpool Refrigerator Ice Maker Assembly
18	WPW10068250 Whirlpool Dishwasher Screw
19	WP628379 Whirlpool Refrigerator Clip
