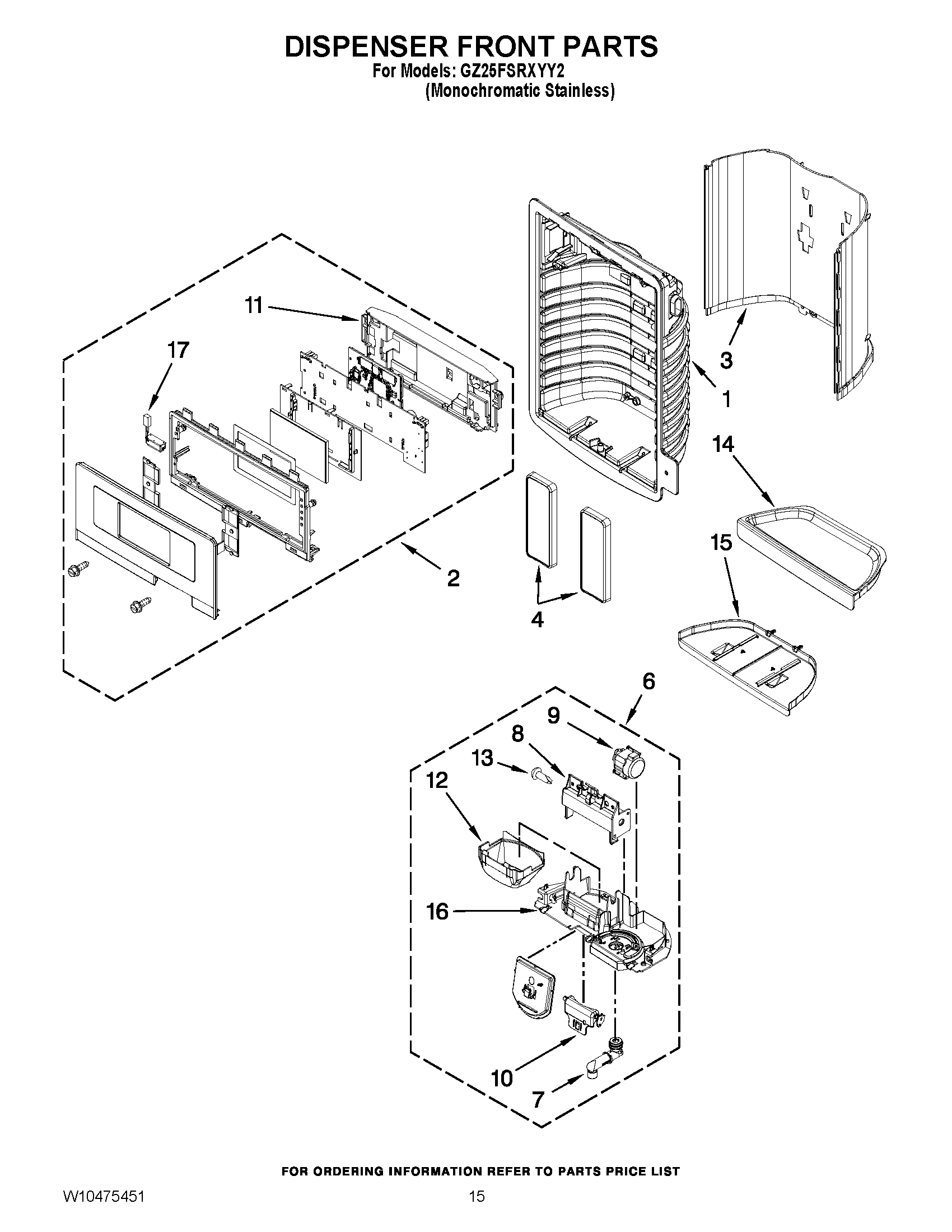

GZ25FSRXYY2 08 – DISPENSER FRONT PARTS

GZ25FSRXYY2 08 – DISPENSER FRONT PARTS

Written by

in

GZ25FSRXYY2 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2ASSEMBLY, UI (STAINLESS)
3W11045978 Whirlpool Refrigerator Shield
4WPW10353848 Whirlpool Refrigerator Pad
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8W10174827 Whirlpool Refrigerator Bracket
9WPW10205979 Whirlpool Refrigerator Ice Door Motor
10WPW10346124 Whirlpool Refrigerator Support
11W10254277 Whirlpool Cover Assembly
12WPW10435760 Whirlpool Refrigerator Ice Guide
13W10174818 Whirlpool Refrigerator Clip
14W11192301 Whirlpool Refrigerator Drip Tray
15WPW10267863 Whirlpool Refrigerator Drip Tray
16SEPARATOR
17W11290115 Whirlpool Refrigerator Light
