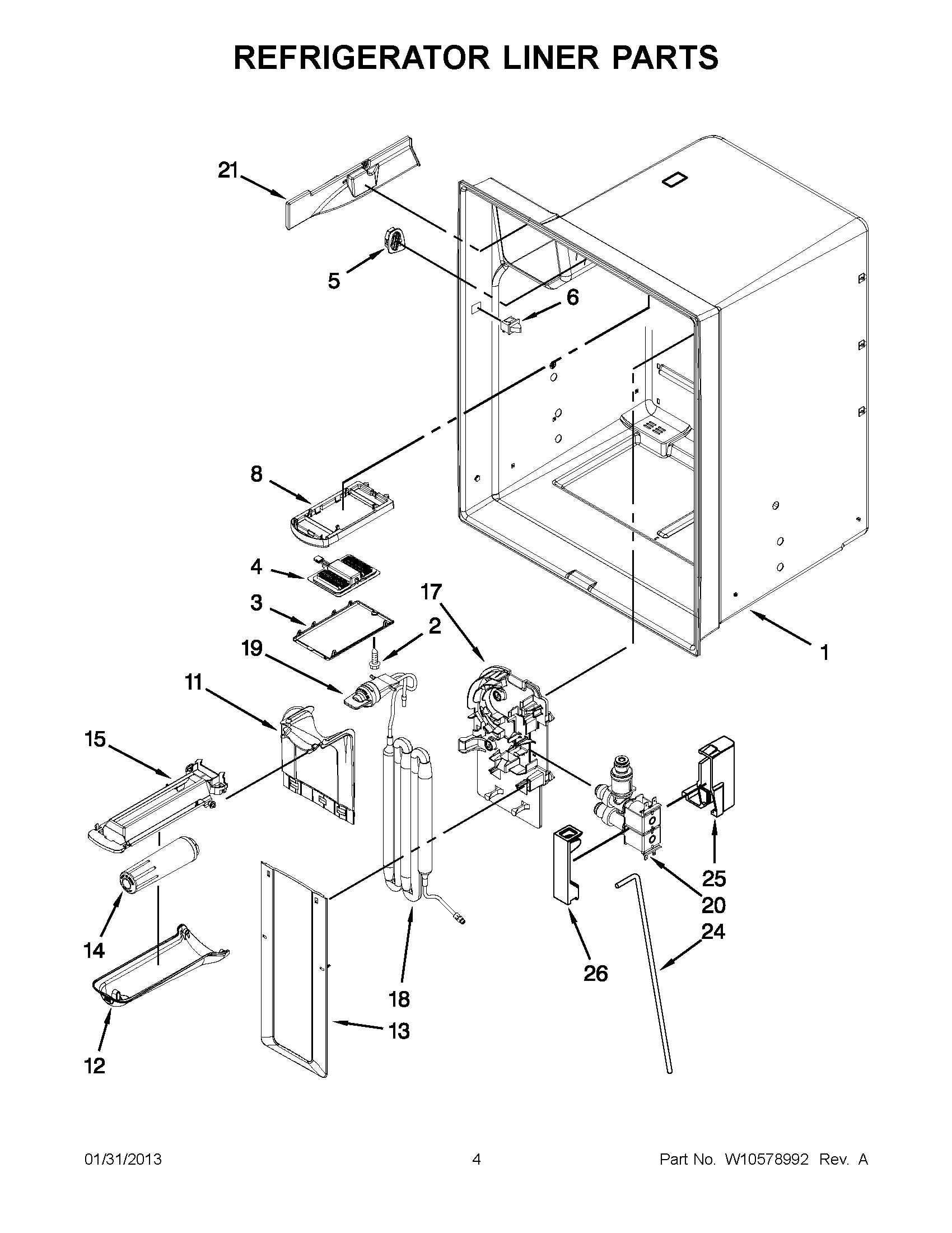

GZ25FSRXYY6 02 – REFRIGERATOR LINER PARTS

GZ25FSRXYY6 02 – REFRIGERATOR LINER PARTS

Written by

in

GZ25FSRXYY6 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP3400065 Whirlpool Refrigerator Screw
3W10311756 Whirlpool Refrigerator Light Lens
4W11125428 Whirlpool Electronic Control Board + Core
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
8W11684721 Whirlpool Housing Assembly
1112960101 Whirlpool Refrigerator Cover
12WP67006331 Whirlpool Refrigerator Water Filter Cover
1367006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
1567006325 Whirlpool Filter Base Bracket
17WPW10334463 Whirlpool Refrigerator Bracket
18RESERVOIR
19W11395888 Whirlpool Refrigerator Bypass Filter Cap
20WPW10349187 Whirlpool Water Valve
21WPW10309869 Whirlpool Refrigerator Cover
24WPW10444033 Whirlpool Refrigerator Water Tube
25W10118193 Whirlpool Refrigerator Cover
26W10118194 Whirlpool Refrigerator Cover
