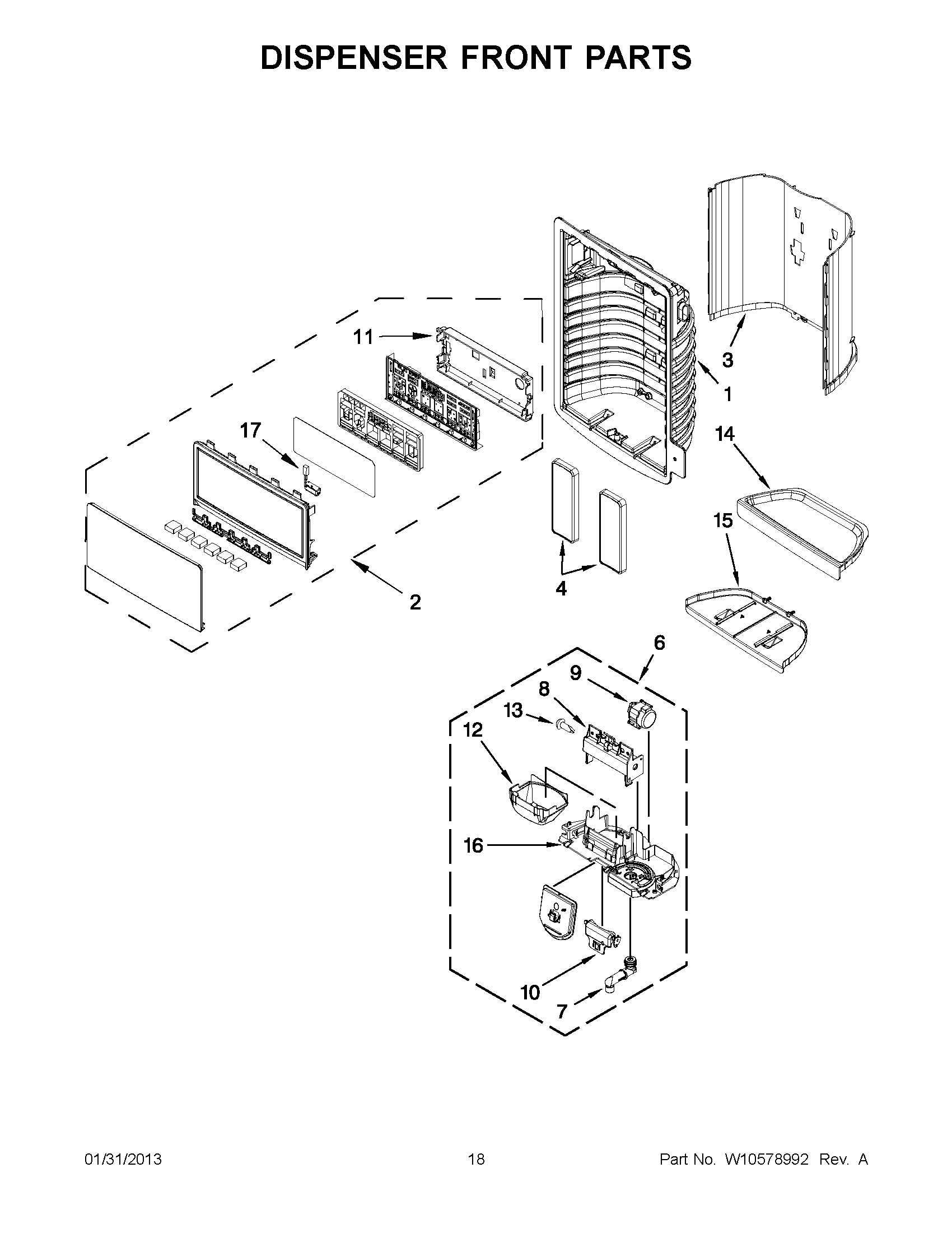

GZ25FSRXYY6 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10521642-includeCORE Whirlpool WPW10521642 Refrigerator Electronic Control Board + Core
3	W11045978 Whirlpool Refrigerator Shield
4	WPW10353848 Whirlpool Refrigerator Pad
6	WPW10353552 Whirlpool Refrigerator Separator
7	W11227371 Whirlpool Refrigerator Spigot
8	W10174827 Whirlpool Refrigerator Bracket
9	WPW10205979 Whirlpool Refrigerator Ice Door Motor
10	WPW10346124 Whirlpool Refrigerator Support
11	W10254277 Whirlpool Cover Assembly
12	WPW10435760 Whirlpool Refrigerator Ice Guide
13	W10174818 Whirlpool Refrigerator Clip
14	W11192301 Whirlpool Refrigerator Drip Tray
15	WPW10267863 Whirlpool Refrigerator Drip Tray
16	SEPARATOR
17	W11290115 Whirlpool Refrigerator Light
