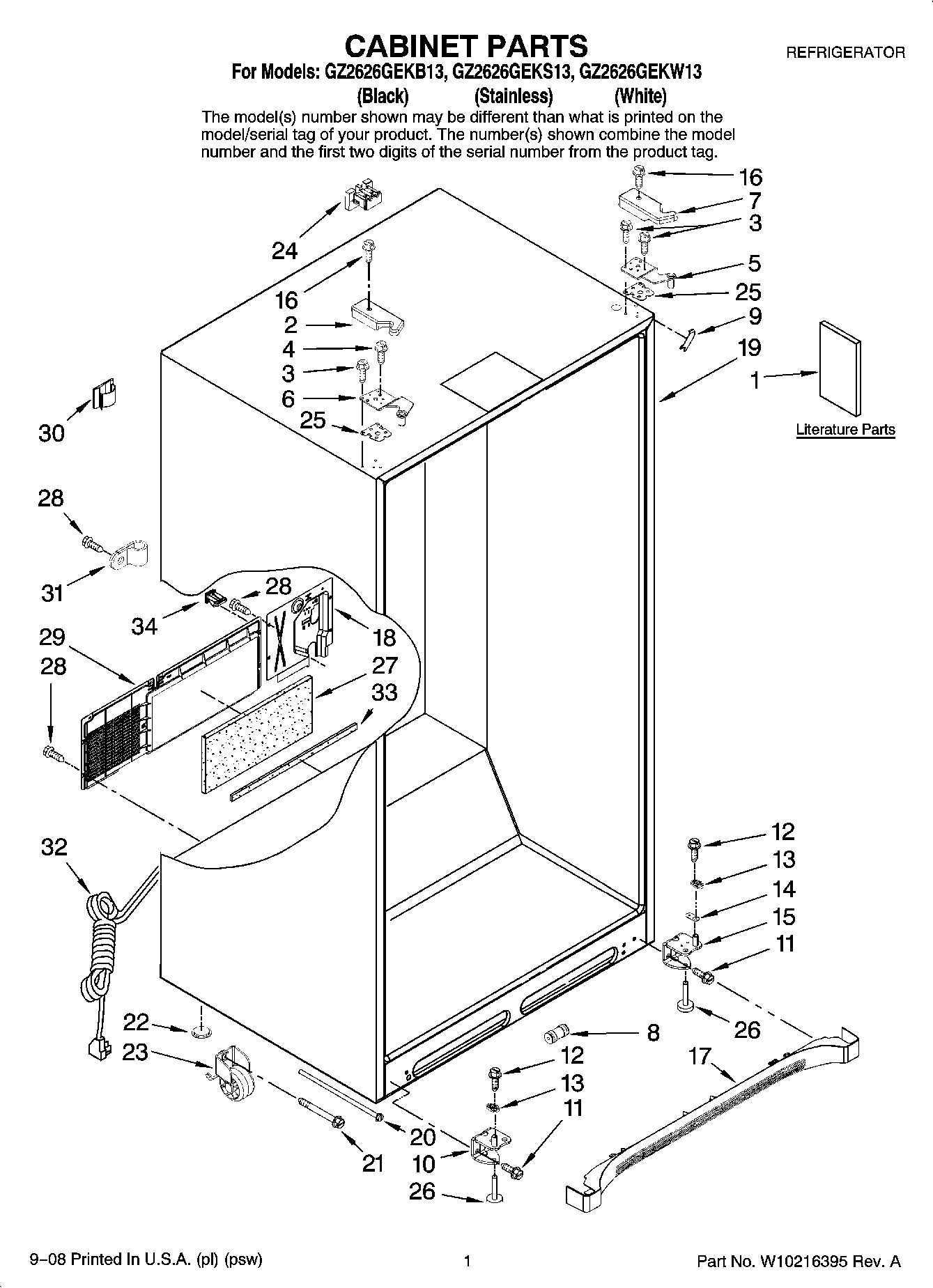

GZ2626GEKB13 01 – CABINET PARTS

Products

Position	Product
1	Guide, Use & Care
1	Sheet, Tech Data
2	Cover, Hinge (FC) (W/Foil) (Black)
2	Cover, Hinge (FC) (W/Foil) (White)
3	WP489349 Whirlpool Refrigerator Screw
4	Screw
5	12626910ED Whirlpool Refrigerator Door Hinge
6	12626911ED Whirlpool Refrigerator Door Hinge
7	Cover, Hinge (RC) (Black)
7	Cover, Hinge (RC) (White)
8	WP2300868 Whirlpool Refrigerator Fitting
9	67003485 Whirlpool Refrigerator Corner Cover (Black)
9	67003484 Whirlpool Refrigerator White Corner Cover
10	Hinge, Bottom (FC)
11	67006564 Whirlpool Refrigerator Screw
12	WP489483 Whirlpool Screw
13	Closure, Door
14	WP67005716 Whirlpool Refrigerator Shim
15	Hinge, Bottom (RC)
16	WP8281196 Whirlpool Screw
17	WP67006687 Whirlpool Refrigerator Front Grille
18	Cover, Water Valve
19	Cabinet (Not A Service Part)
20	Bolt, Adjusting (Rear)
21	71003131 Whirlpool Oven Screw
22	A3076901 Whirlpool Refrigerator Plug
23	Roller Assy.(Rear)
24	WP12777701 Whirlpool Refrigerator Filler Block
25	Shim, Top Hinge
26	W11177593 Whirlpool Leveling Feet
27	67003796 Whirlpool Refrigerator Fiber Acoustic
28	67006425 Whirlpool Refrigerator Screw
29	Cover, Unit
30	Clip, Cord
31	W10833902 Whirlpool Refrigerator Clamp
32	Cord, Power
33	Gasket
34	12831101 Whirlpool Refrigerator Tube Clamp
