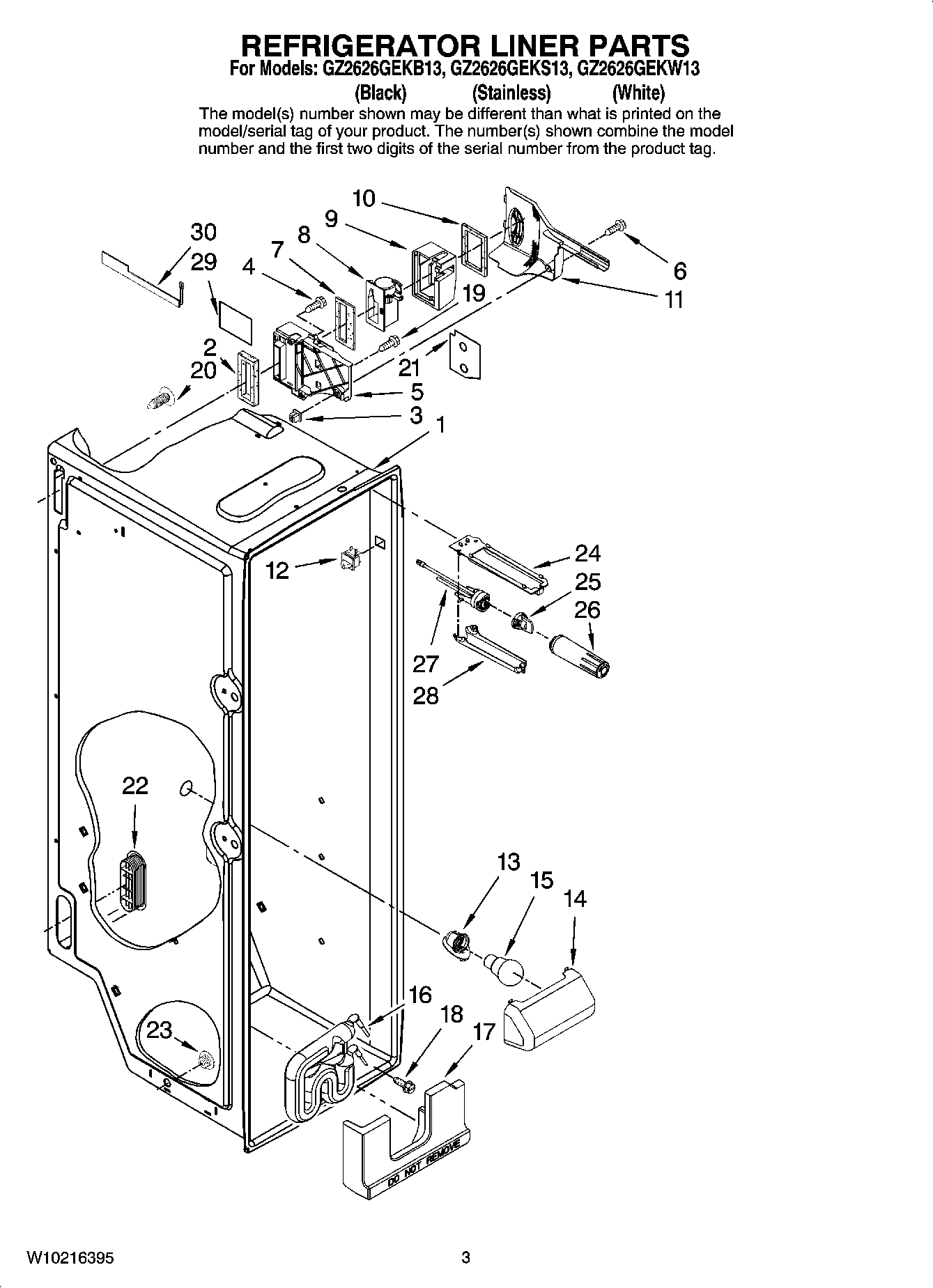

GZ2626GEKS13 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Service Part)
2	Gasket, Damper
3	Grommet, Screw (3)
4	SCREW
5	Bracket, Electronic Control
6	WP67006415 Whirlpool Refrigerator Screw
7	Gasket, Damper
8	WPW10127430 Whirlpool Control Board
9	INSULATION
10	Gasket, Cover
11	Cover, Damper Control W/Foil
12	W11291138 Whirlpool Refrigerator Door Switch
13	W11447232 Whirlpool Refrigerator Socket
14	Shield, Light
15	WP67002552 Whirlpool Refrigerator Light Bulb
16	Tank, Water
17	Block, Water Tank
18	67006425 Whirlpool Refrigerator Screw
19	WP98165 Whirlpool Screw
20	Plug Button
21	Foil, Control Bracket
22	Grille, Air Return
23	Plug, Air Tunnel
24	Plate, Filter Backing
25	Plug, Bypass
26	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
27	Head, Water Filter (Incl. Tubing)
28	WP12568001 Whirlpool Filter Cover
29	WP12691607 Whirlpool Shield
30	Heater, Damper Control
