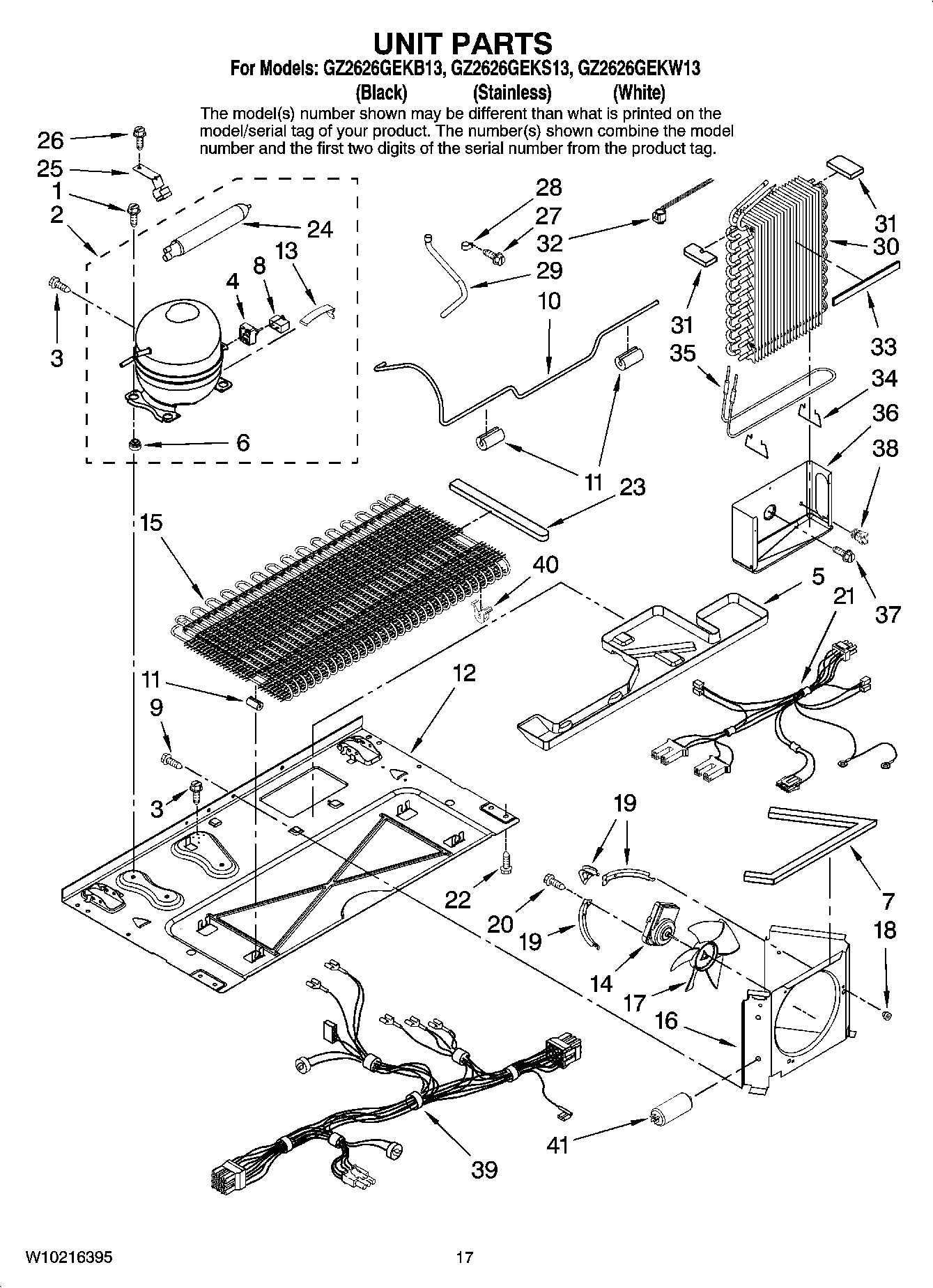

GZ2626GEKS13 11 – UNIT PARTS

Products

Position	Product
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 4.80 oz. (R-134A)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
	VALVE, ACCESS (1/2“)
1	12846902 Whirlpool Refrigerator Screw
2	Compressor Kit (Includes Items 12,17,27,& 29)
3	12992301 Whirlpool Refrigerator Screw
4	Overload/Relay With Capacitor (Production)
4	WP2303345 Whirlpool Starter Device
5	WP12579803 Whirlpool Refrigerator Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	WP2201147 Whirlpool Refrigerator Capacitor
9	67006425 Whirlpool Refrigerator Screw
10	WP12866903 Whirlpool Refrigerator Discharge Tube
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	Basepan
13	Clip, Capacitor
14	WPW10246191 Whirlpool Refrigerator Motor
15	WP67006131 Whirlpool Refrigerator Condenser
16	Shroud, Condenser Fan
17	W10156818 Whirlpool Refrigerator Fan Blade
18	Grommet (3)
19	WP67004953 Whirlpool Refrigerator Bracket
20	WP67004954 Whirlpool Refrigerator Screw
21	Harness, MC
22	Screw (4)
23	Block, Condenser
24	WPW10143759 Whirlpool Dryer Filter
25	10547003 Whirlpool Refrigerator Dryer Clip
26	WP33001882 Whirlpool Screw
27	Screw, Clamp
28	WP488366 Whirlpool Refrigerator Clamp
29	Tube, Drain
30	EVAPORATOR
31	Block, Air Coil (Left)
31	Block, Air Coil (Right)
32	Thermostat, Defrost
33	Gasket, Foam
34	W11673433 Whirlpool Clip
35	Heater, Defrost
36	Tray, Evaporator
37	WP90767 Whirlpool Screw
38	Clip, Evaporator
39	Heater/Harness, Fz
40	WPW10137529 Whirlpool Refrigerator Grommet
41	Filter, Line
