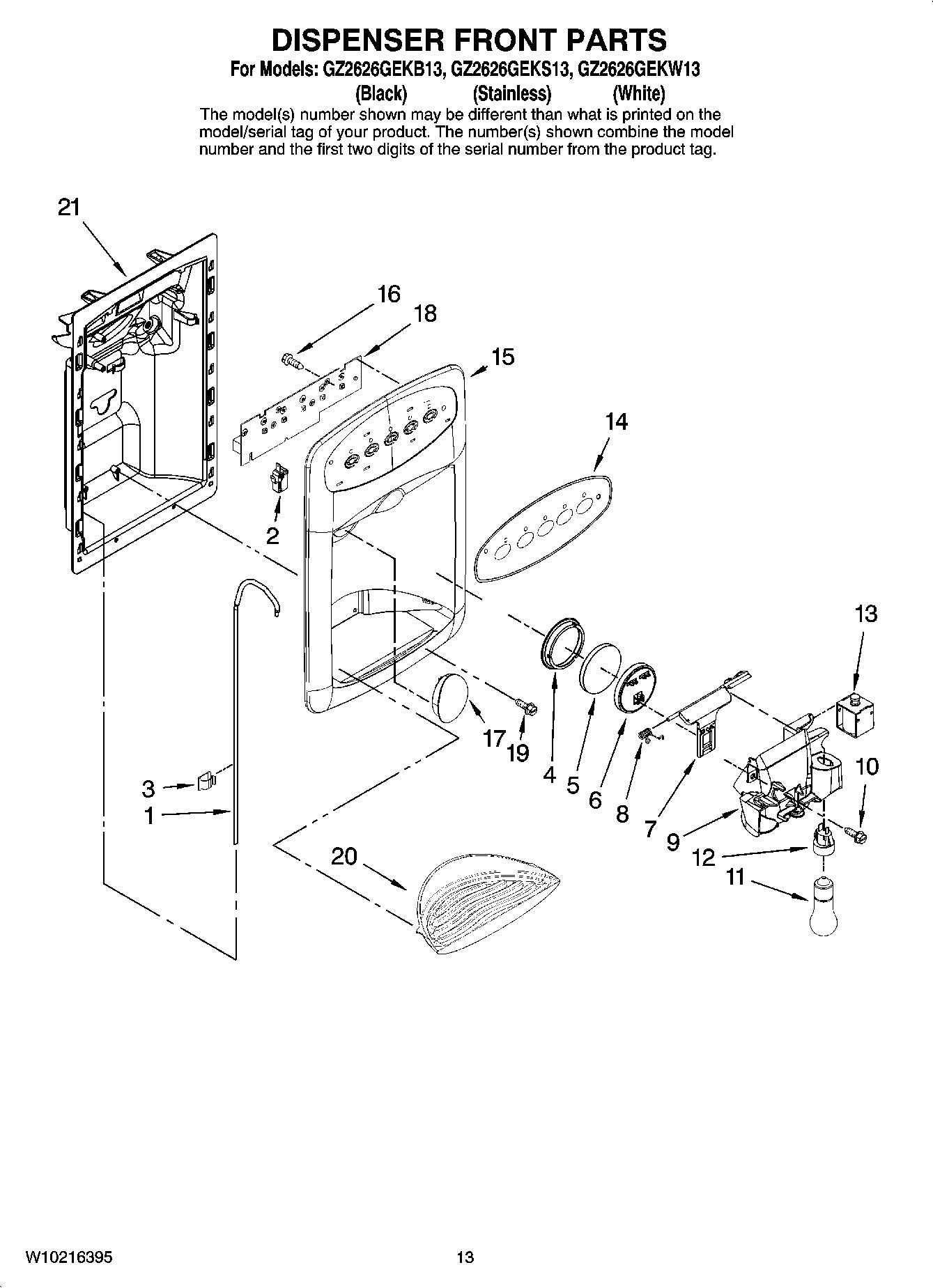

GZ2626GEKW13 08 – DISPENSER FRONT PARTS

GZ2626GEKW13 08 – DISPENSER FRONT PARTS

Written by

in

GZ2626GEKW13 08 – DISPENSER FRONT PARTS

Products

PositionProduct
167004938 Whirlpool Refrigerator Waterline Assembly
2WP12575501 Whirlpool Refrigerator Micro Switch
3Clip, Cord
4Seal, Ice Chute
5Insulation, Chute Door
6WP12562701 Whirlpool Dispenser Door
7Hinge, Ice Chute
8WP12565502 Whirlpool Refrigerator Spring
9Extension, Ice Chute
1067006425 Whirlpool Refrigerator Screw
11Bulb, Light
12Lamp Holder
13Solenoid
14OVERLAY
14Insert (White)
15Facade (White)
15Facade (Black)
162006254 Whirlpool Refrigerator Screw
17Actuator Pad Assy. (Stainless)
17Actuator Pad Assy. (Black)
18WP12945104 Whirlpool Refrigerator Electronic Control Board
19W10709784 Whirlpool Refrigerator Handle Plug
20WPY67003722 Whirlpool Refrigerator Sump Tray
20WP67004123 Whirlpool Refrigerator Sump Tray
21Housing Dispenser (Not Serviced)
