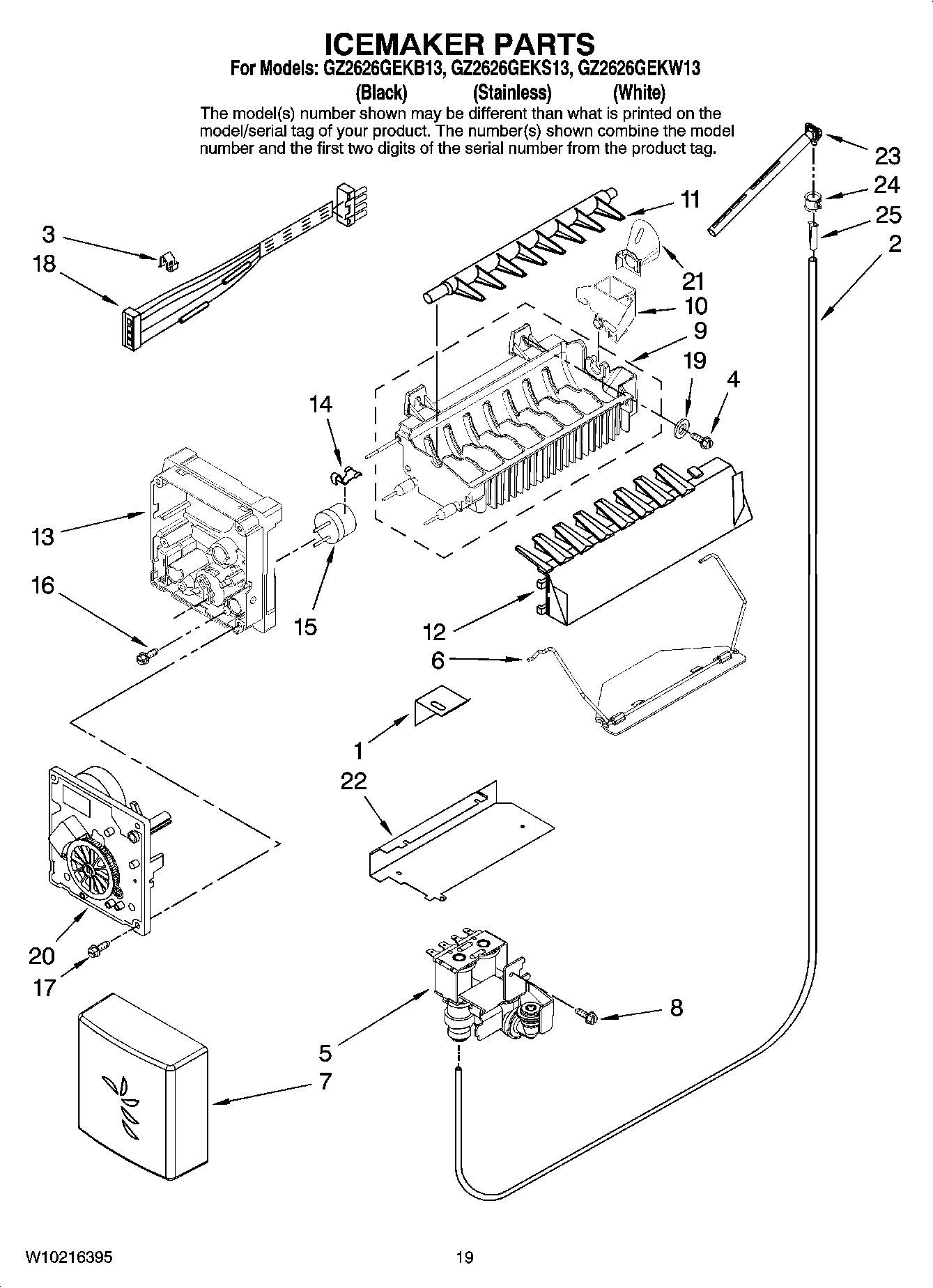

GZ2626GEKW13 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

GZ2626GEKW13 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GZ2626GEKW13 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI75072A6
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
Parts Not Illustrated and Optional Parts (Not Included)
Important: The spray paint is not to be used where the pa
WPL ARI75071A3
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
350930 Whirlpool White Spray Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
1WP2256087 Whirlpool Refrigerator Bracket
2WPB5705307 Whirlpool Refrigerator Tube
3WP628379 Whirlpool Refrigerator Clip
4SCREW
5Valve, Water
6Arm, Shutoff
7WPW10289690 Whirlpool Ice Maker Cover
8WP489128 Whirlpool Refrigerator Screw
9WPW10122523 Whirlpool Refrigerator Ice Mold
10W10122561 Whirlpool Refrigerator Cup Fill
11WP627843 Whirlpool Refrigerator Ejector Arm
12WP2182124 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
16W10001280 Whirlpool Refrigerator Screw
17W10001240 Whirlpool Refrigerator Screw
18Harness, Icemaker
19WASHER
20W10190933 Whirlpool Refrigerator Motor Assembly
2112918001 Whirlpool Refrigerator Funnel
22Shield, Icemaker
23WP67003576 Whirlpool Refrigerator Fill Tube Elbow
24WPM0114003 Whirlpool Microwave Speed Clip Clamp
25WPA3223101 Whirlpool Refrigerator Insert PL
100Icemaker Assembly
