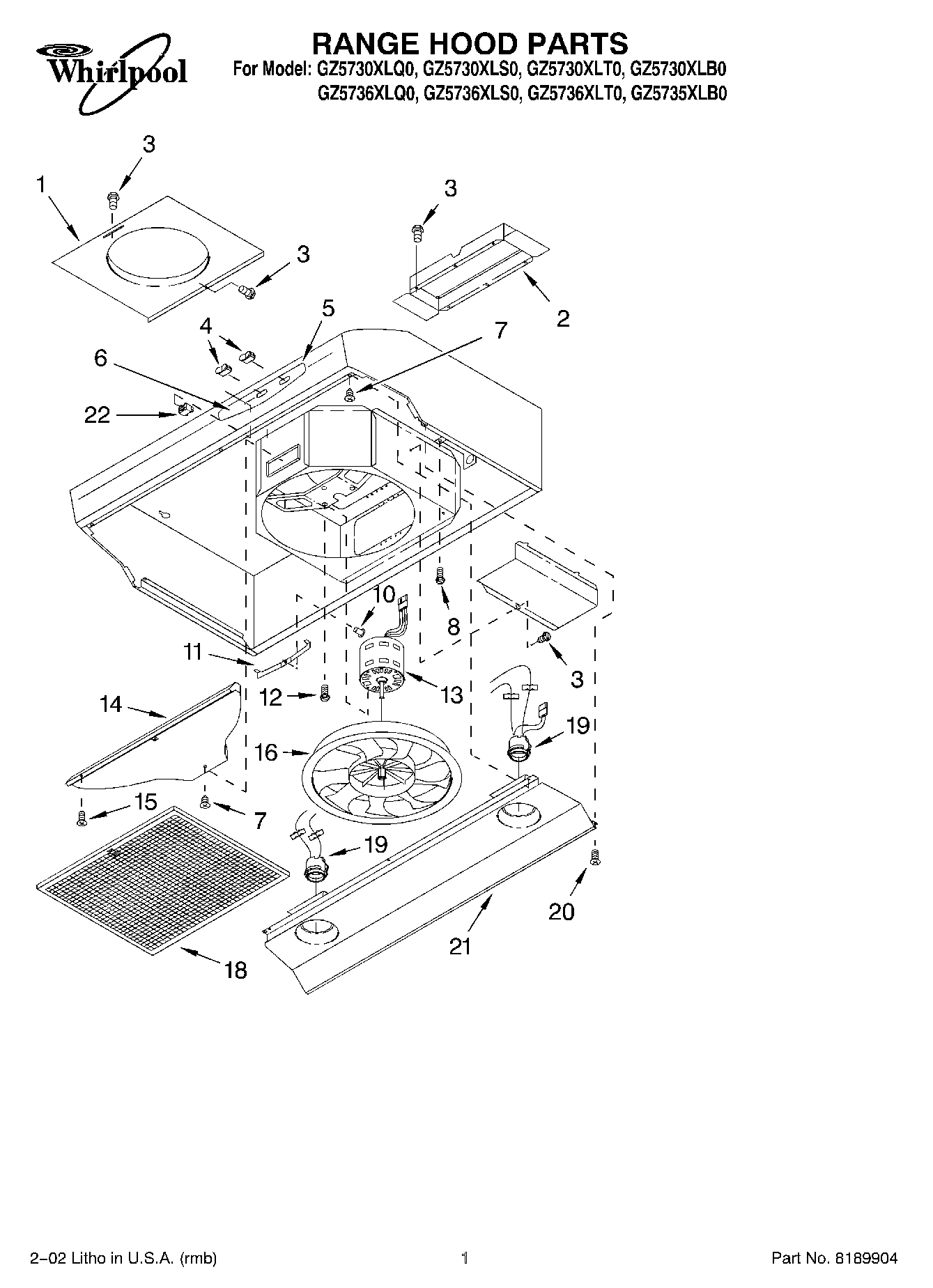

GZ5736XLT0 01 – RANGE HOODadmin2025-04-26T11:24:39+00:00GZ5736XLT0 01 – RANGE HOOD
Products
| Position | Product |
|---|
| NI | Cover, Wiring |
| Installation & Operating Instructions |
| 1 | Plate, Duct |
| 2 | Damper |
| 3 | WP3177991 Whirlpool Screw |
| 4 | Switch, Rocker (2 in package) (White) |
| 4 | Switch, Rocker (2 in package) (Black) |
| 4 | Switch, Rocker (2 in package) (Biscuit) |
| 5 | Nameplate (Stainless) |
| 5 | Nameplate (White) |
| 5 | Nameplate (Black) |
| 5 | Nameplate (Biscuit) |
| 6 | Lens |
| 7 | WP3400805 Whirlpool Screw Assembly |
| 8 | Screw, Ground |
| 11 | Spring, Filter |
| 12 | WPW10001160 Whirlpool Refrigerator Screw |
| 13 | Motor w/Hardware |
| 14 | Chute, Air |
| 15 | Screw, No.8 x 1/2 |
| 16 | Blade, Fan |
| 18 | WP8189890 Whirlpool Filter |
| 18 | Filter (2 per bag) (30`` Models) |
| 19 | Harness, Lamp |
| 20 | Hardware, Pnl Mtg |
| 21 | Panel, Light (Biscuit 36``) |
| 21 | Panel, Light (Biscuit 30``) |
| 21 | Panel, Light (Stainless 30``) |
| 21 | Panel, Light (Black 36``) |
| 21 | Panel, Light (Stainless 36``) |
| 21 | Panel, Light (White 30``) |
| 21 | Panel, Light (White 36``) |
| 21 | Panel, Light (Black 30``) |
| 22 | Filter, Non-Ducted (2 per bag), 30`` Model |
| 22 | Light, Indicator Miscellaneous |
| 22 | Light Diode Assy |
| 22 | Harness, Main |
| 22 | Filter, Non-Ducted (2 per bag), 36`` Model |
