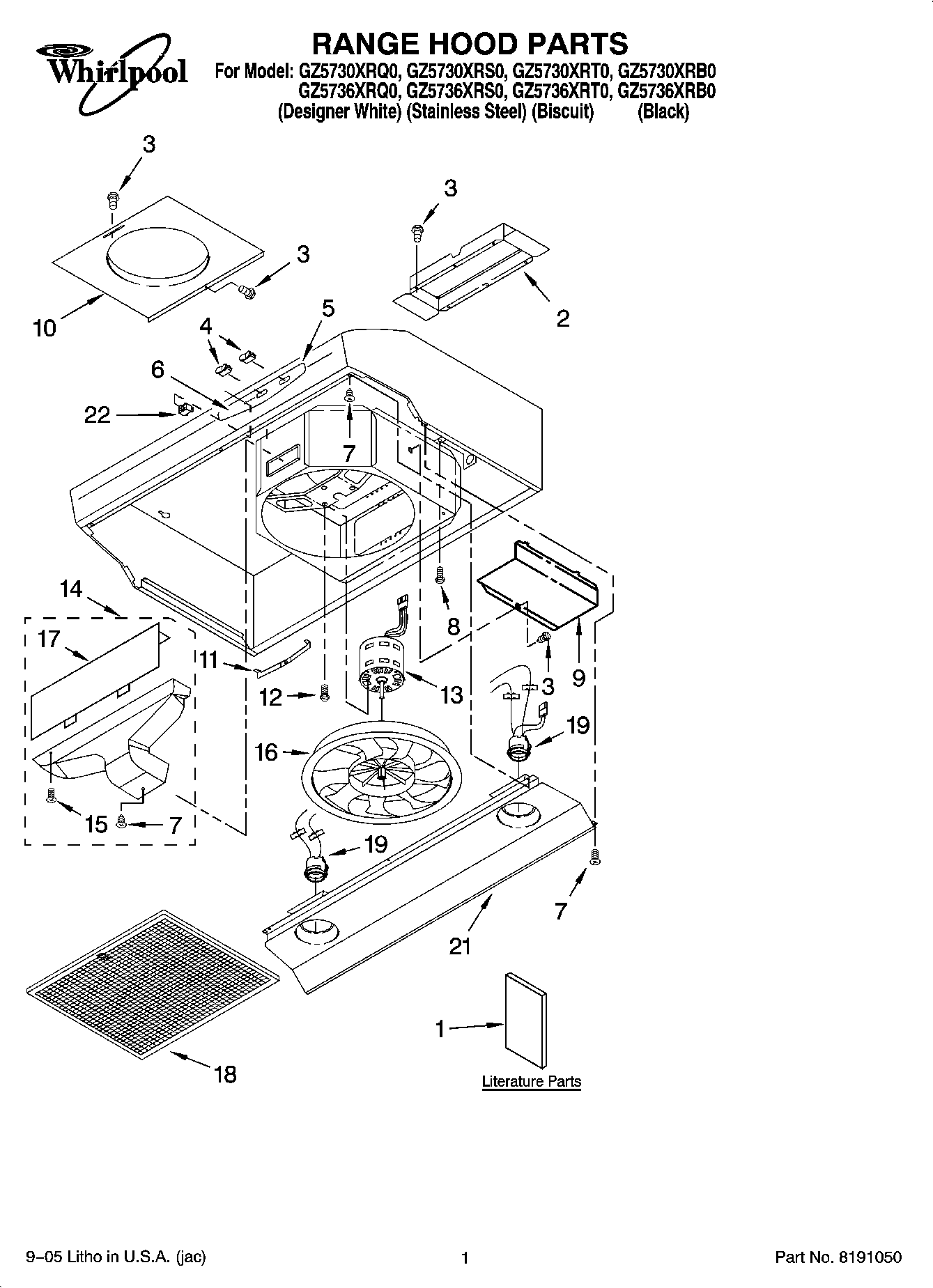

GZ5736XRB0 01 – RANGE HOOD PARTS

Products

Position	Product
1	Instruct, Install
2	Damper
3	WP3177991 Whirlpool Screw
4	Switch, Rocker (2 in package) (White)
4	Switch, Rocker (2 in package) (Black)
4	Switch, Rocker (2 in package) (Biscuit)
5	Nameplate (Biscuit)
5	Nameplate (White)
5	Nameplate (Stainless)
5	Nameplate (Black)
6	Lens
7	WP3400805 Whirlpool Screw Assembly
8	Screw, Ground
9	Cover, Wiring
10	Plate, Duct
11	Spring, Filter
12	WPW10001160 Whirlpool Refrigerator Screw
13	Motor w/Hardware
14	Chute, Air
15	Screw, No.8 x 1/2
16	Blade, Fan Incl Hitch Pin Part 8190208
17	Baffle
18	WP8189890 Whirlpool Filter
18	Filter (2 per bag) (30“ Models)
19	Harness, Lamp
21	Panel, Light (White 36“)
21	Panel, Light (White 30“)
21	Panel, Light (Biscuit 36“)
21	Panel, Light (Biscuit 30“)
21	Panel, Light (Black 30“)
21	Panel, Light (Stainless 36“)
21	Panel, Light (Black 36“)
21	Panel, Light (Stainless 30“)
22	Harness, Main
22	Light Diode Assy
22	Light, Indicator Miscellaneous
22	Miscellaneous
22	Filter, Non-Ducted (2 per bag), 30“ Model
22	Filter, Non-Ducted (2 per bag), 36“ Model
