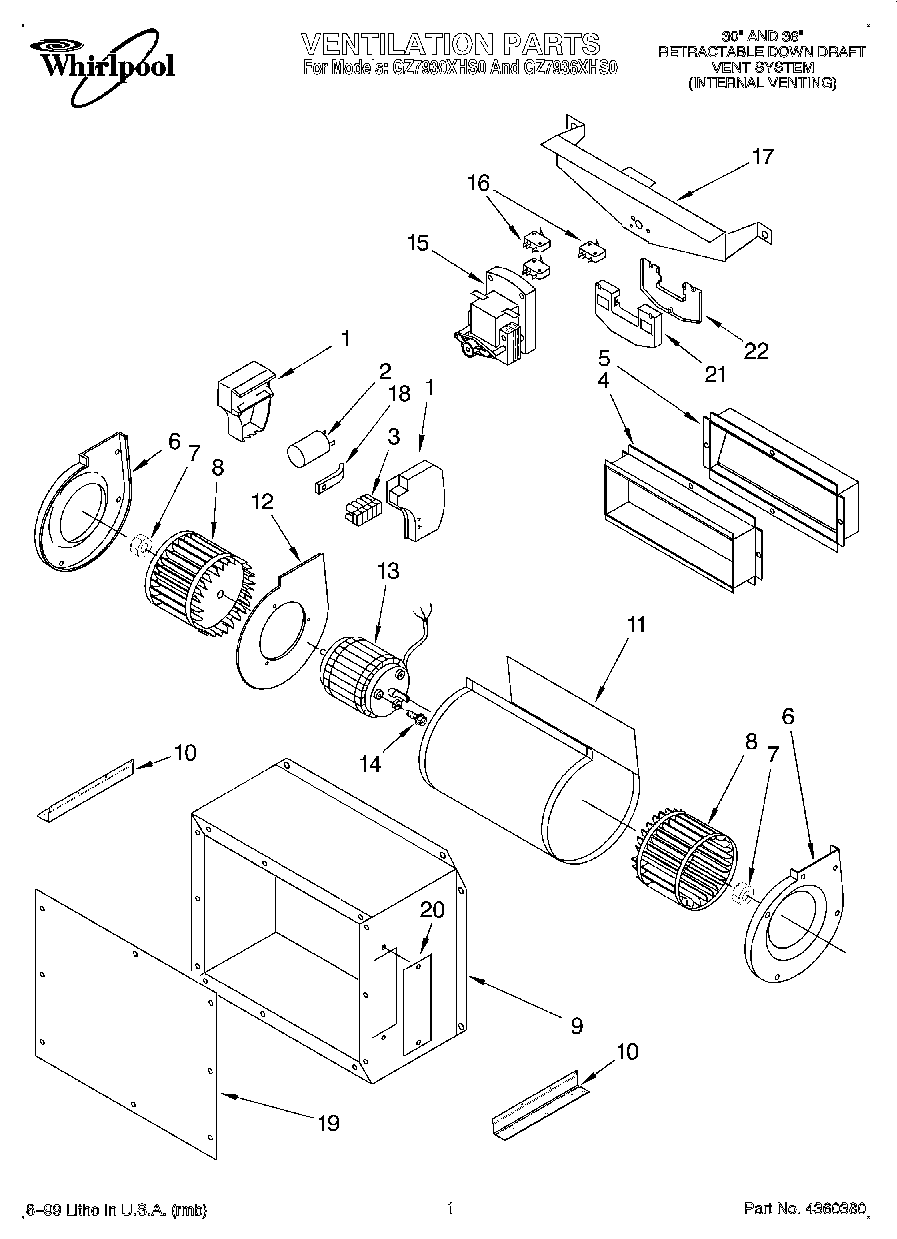

GZ7936XHS0 01 – VENTILATIONadmin2025-04-26T11:26:30+00:00GZ7936XHS0 01 – VENTILATION
Products
| Position | Product |
|---|
| 1 | Cover, Box |
| 1 | Box, Electric |
| 2 | Capacitor |
| 3 | Terminal |
| 4 | Guide, Exhaust |
| 5 | Damper |
| 6 | Cover, Blower |
| 6 | Cover, Blower |
| 7 | Nut |
| 8 | Impeller |
| 8 | Impeller |
| 9 | Box, Blower |
| 10 | Support, Blower (2) |
| 11 | Housing, Motor |
| 12 | Motor Mount |
| 13 | Motor |
| 14 | Screw |
| 15 | Motor, Gear |
| 16 | WPW10240604 Whirlpool Fan Switch |
| 17 | Bracket, Motor Gear |
| 18 | Block, Capacitor |
| 19 | Cover, Blower Box |
| 20 | Cover, Exhaust Outlet |
| 21 | Box, Microswitch |
| 22 | Cover, Box |
