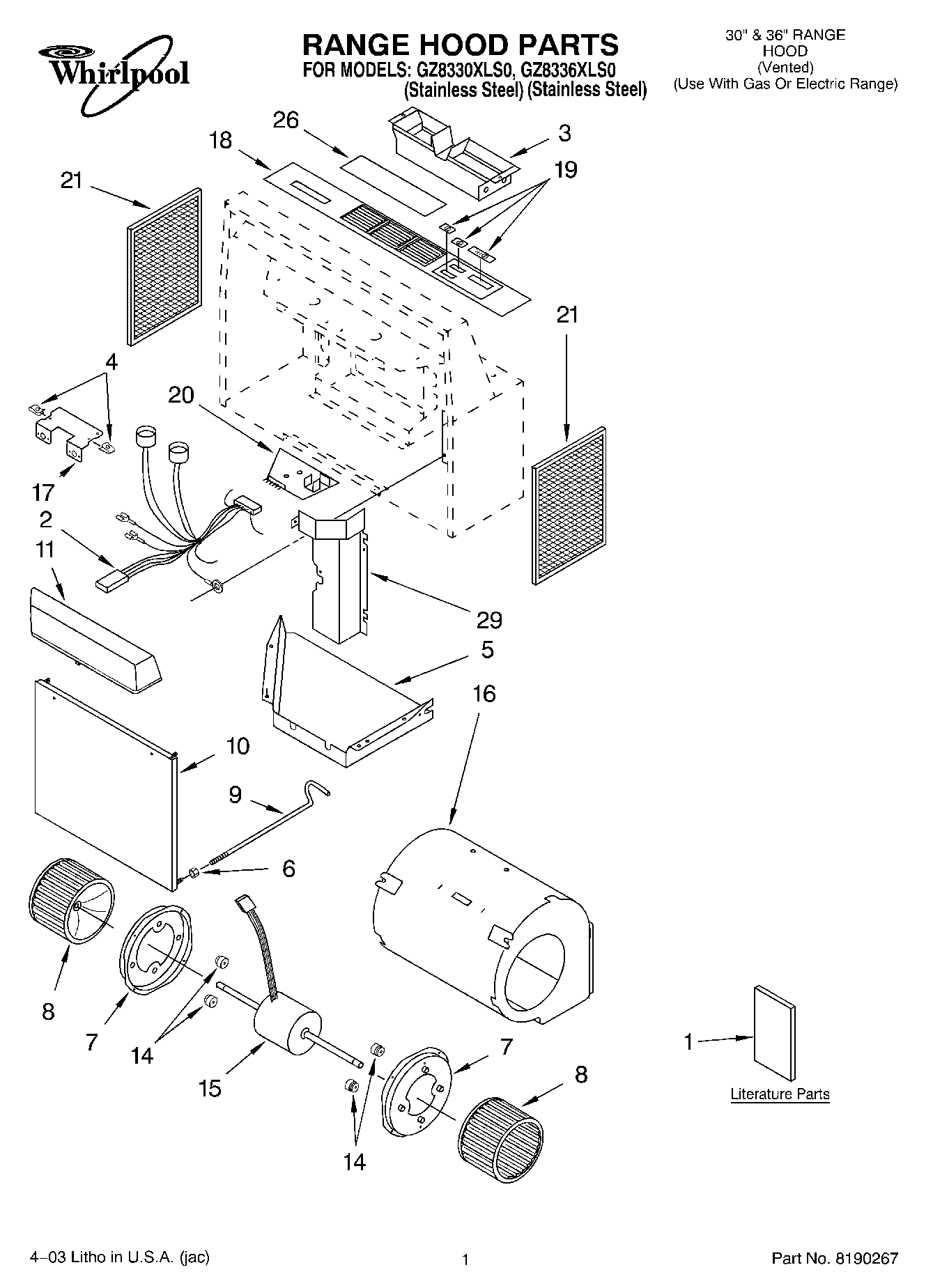

GZ8330XLS0 01 – RANGE HOOD PARTS

Products

PositionProduct
1Use & Care Guide
2Harness, Wire
3Damper Asy
4Nut – “U“ Type (2)
5Cover, Bulb Holder
6Nut, Ret. Rod (2)
7Motor Bracket (2)
8Blower, Wheel, Right
8Blower, Wheel, Left
9Rod, Retaining (2)
10Cover, Blower
11Lens, Light
14Mount, Motor (4)
15Motor, Blower
16Housing, Blower
17Thermostat Asy
18Panel, Control (36“)
18Panel, Control (30“)
19Knob, Control (Blower)
19Knob, Control (Speed Control)
19Knob, Control (Light Switch)
20Control, Elctronic
21Filter, Grease (2 Pack)
26Baffle
294396390 Whirlpool Filter
298190263 Whirlpool Blower Fan
29Cover, Wiring Box
29FOLLOWING PARTS NOT ILLUSTRATED
29(Optional Parts Only)
296,7,8,14,15&16
