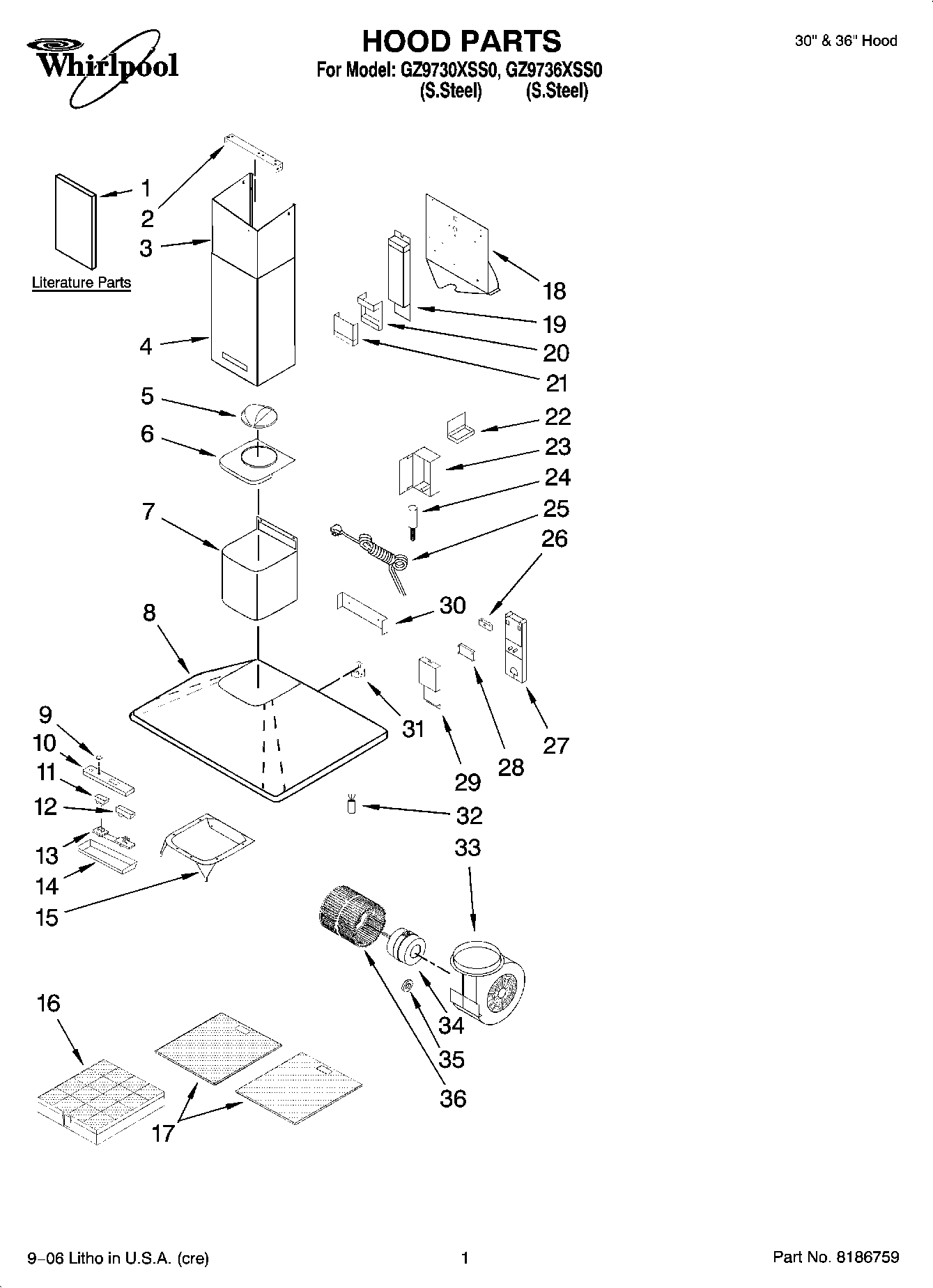

GZ9736XSS0 01 – HOOD PARTS

Products

Position	Product
1	Use & Care Guide
2	Bracket, Mounting
3	Chimney, Upper
4	Chimney, Lower
5	Diverter, Air
6	Cover
7	Mounting Cover, Blower
8	Canopy Not Serviced
9	Lamp, Warning
10	Cover, Control Box
11	Button, Light Switch
12	Button, Motor Switch
13	Board, Control
14	Box, Control Brd
15	Support, Blower
16	Filter (Non-Ducted Recrc)
17	Filter, Grease
18	Support, Elec.Box
19	Transformer
20	Box, Terminal
21	Cover, Term.Box
22	Box, Fuse
23	Box, Control Brd.
24	8186761 Whirlpool Capacitor
25	Cord, Power
26	Strain, Releif
27	Box, Connection
28	Clamp
29	Cover, Connection Box
30	Bracket, Blower
31	Grommet, Wire
32	Lamp, Halogen
33	Blower
34	Motor
35	Washer, Rubber
36	Following Parts Not Illustrated
36	Wheel, Blower
36	Fuse
36	Holder, Fuse
