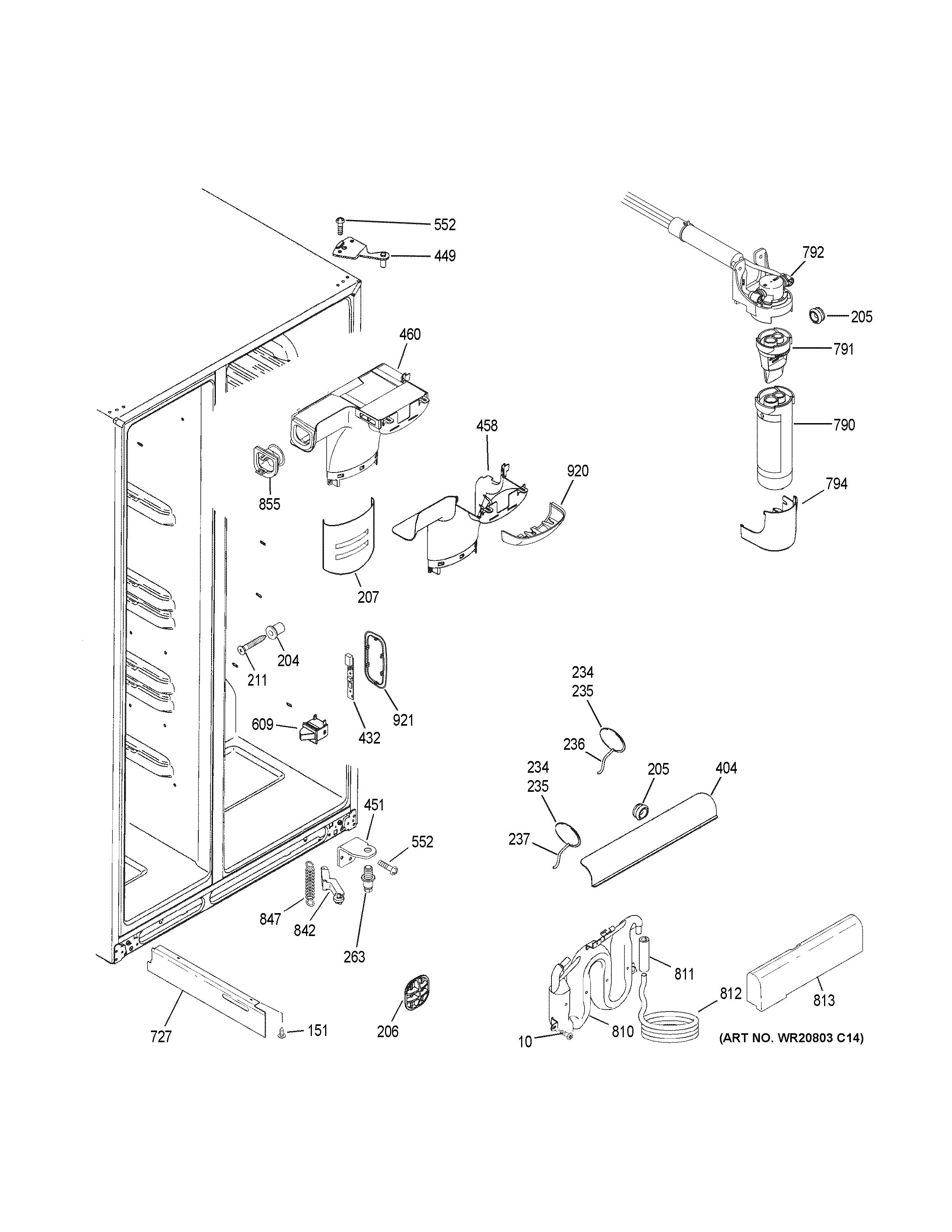

GZS22IYNPHFS FRESH FOOD SECTION

GZS22IYNPHFS FRESH FOOD SECTION

Written by

in

GZS22IYNPHFS FRESH FOOD SECTION

Products

PositionProduct
10WR01X10065 GE Screw
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
204WR02X12187 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
207WR17X10909 GE Refrigerator Cover Inlet Discharge
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
237WR55X10025 GE Refrigerator Temperature Sensor
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
404WR17X11609 GE Refrigerator Air Flow Diverter
432WR55X26671 REFRIGERATOR LED LIGHT BOARD
449WR13X20429 GE Refrigerator Top Hinge and Pin Assembly
451WR13X10159 GE Refrigerator Bottom Hinge Black
458WR17X12881 GE Refrigerator Inlet Cover
460COVER ASM FF INLET
552WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
609REFRIGERATOR DOOR LIGHT SWITCH
727WR17X12382 GE Air Separator Hinge Side
790XWFE GE Refrigerator Water Filter
791WR17X33825 GE Bypass Filter Plug
792XWF MANIFOLD & TUBING
794WR17X30703 GE Refrigerator XWF Filter Cover
810WR17X11440 GE Refrigerator Water Tank Assembly
811WR02X11288 GE Refrigerator Insulation Tube Foam
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
813WR17X11620 GE Refrigerator Insulation Tank Foam
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
855WR02X13091 GE Refrigerator Duct Assembly Transition
920WR17X12977 GE Door Gasket Cover Assembly
921WR17X12871 GE Refrigerator LED Cover
