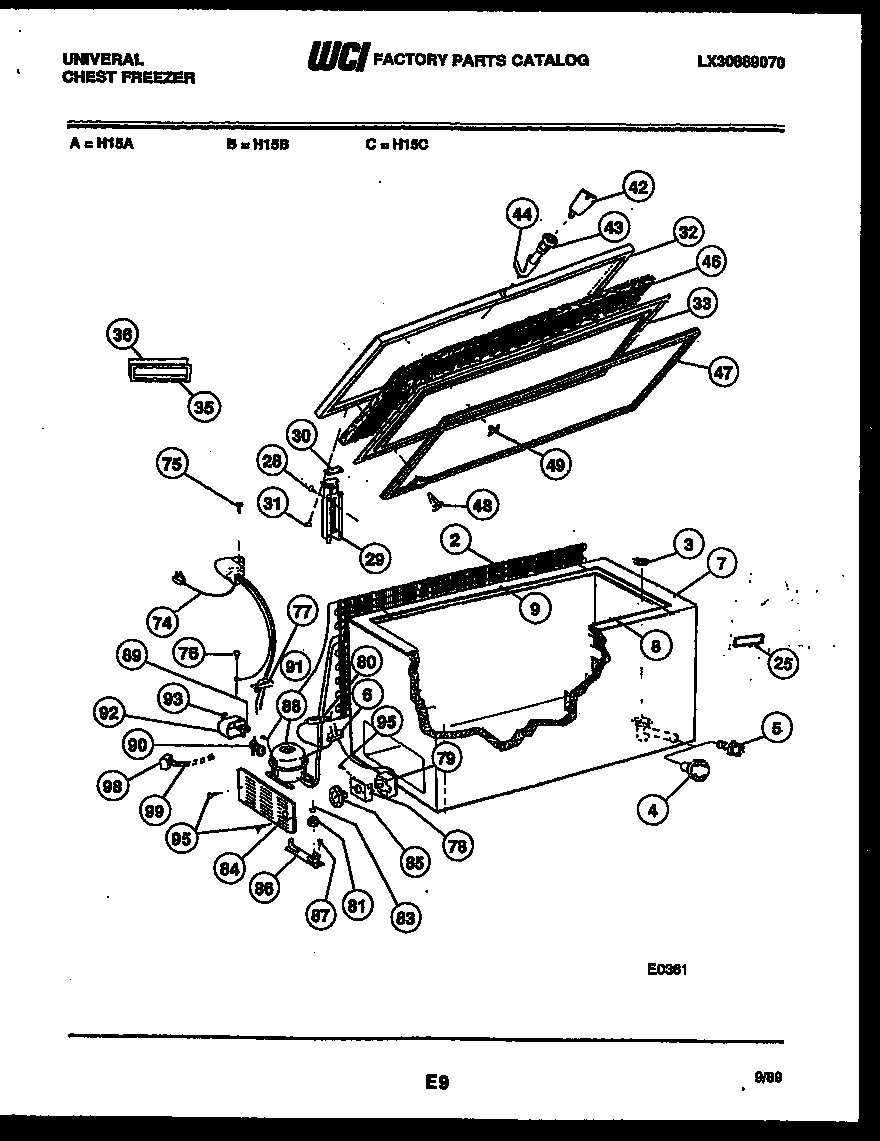

H15A 02 – CHEST FREEZER PARTS

Products

Position	Product
2	5303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
4	PLUG-DRAIN
5	HOSE ADAPTER
6	GROMMET
7	BREAKER-END (2)
8	WCI F300533
9	WCI F300540
25	NAMEPLATE ASSEMBLY
28	SCREW-HINGE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	SPACER HINGE WING
31	SCREW (8)
32	WCI F129041-S
33	WCI 3204447
35	WCI F129863
36	WCI F112639
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI F300788
44	WCI F300791
46	WCI F128901
47	WCI F128163
48	WCI 300792
74	HARNESS-W/ PWR CORD
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI F127315
79	CONTROL TEMP
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP
84	PANEL
85	KNOB
86	CONTROL KNOB
87	SCREW
88	WCI F300638
89	WCI F300398
90	WCI F300397
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
98	5304464438 Frigidaire Compressor Run Capacitor
99	WCI F300579
