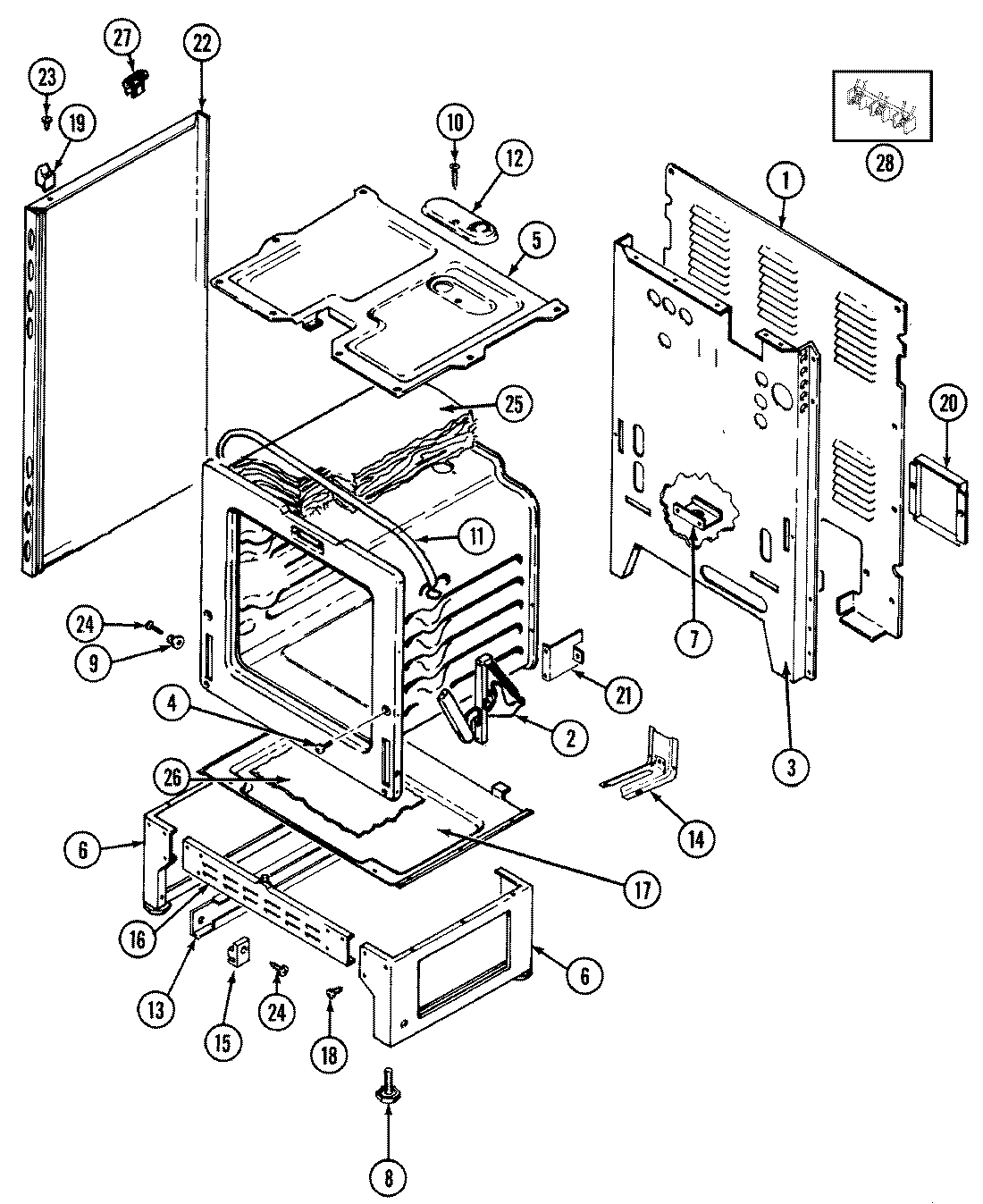

H3531XUA 01 – BODY

Products

Position	Product
1	MAY 4005F348-51
2	MAY 7106P055-60
3	MAY 4002F189-80
4	WP4159193 Whirlpool Screw
5	MAY 4011F208-19
6	MAY 4020W013-80
7	MAY 3605F174-51
8	MAY 7101P306-60
9	MAY 8004P024-60
10	SCREW
11	MAY 4820F001-59
12	COVER, VENT
13	MAY 3406F028-51
14	MAY 7101P289-60
14	MAY 3801F218-51
15	MAY 8004P033-60
16	MAY 4020F001-80
17	MAY 3804F112-47
18	MAY 7101P290-60
19	SPACER, MAIN TOP (RT)
19	SPACER, MAIN TOP (LT)
20	MAY 4005F427-51
21	SUPPORT,OVEN REAR
22	MAY 2618F110-74
23	MAY 7118P013-60
24	WP400021-1 Whirlpool Screw
25	MAY 4804F044-60
25	MAY 4804F017-60
26	MAY 8312P058-60
27	MAY 8007P023-60
28	SCREW (10ABX1.0-ZN)
28	WPW10245259 Whirlpool Terminal Block
