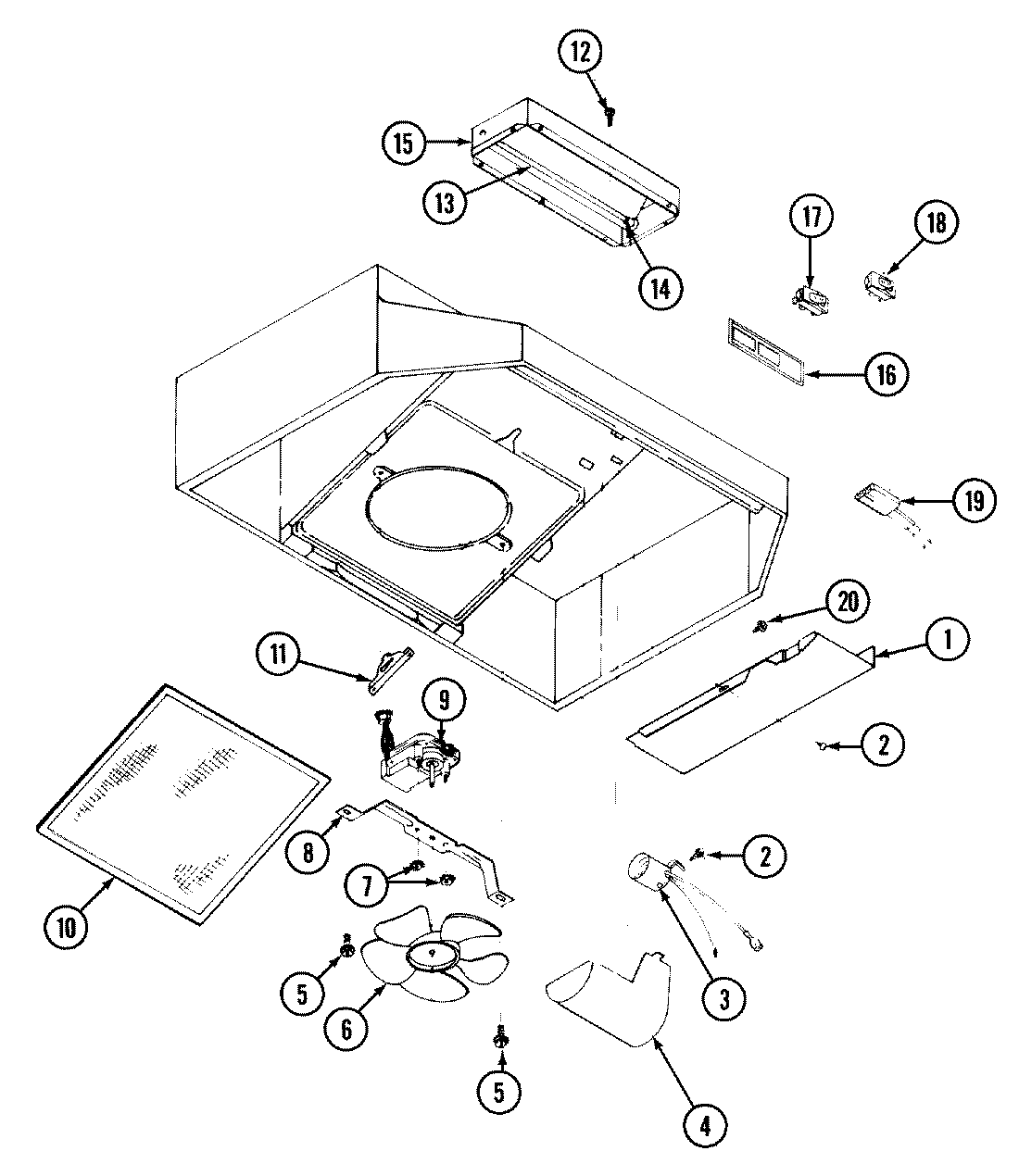

H363RS 01 – BODY/INTERNAL PARTS

Products

PositionProduct
1MAY 47001055
3MAY 47001056
4WP8186930 Whirlpool Light Lens Assembly
5MAY 47001080
6MAY 47001059
7MAY Y03050041
8MAY 47001060
9MAY 47001061
10MAY 47001062
11MAY 47001063
12WPY706189 Whirlpool Stove Screw
13MAY 47001078
14MAY 47001079
15MAY 47001064
16MAY 47001065
17WP3147265 Whirlpool Rocker Switch
18MAY 47001067
19MAY 47001068
20WP71001171 Whirlpool Screw
21MAY 47001084
