H3832SRW 03 – DOOR/DRAWER – Aparts

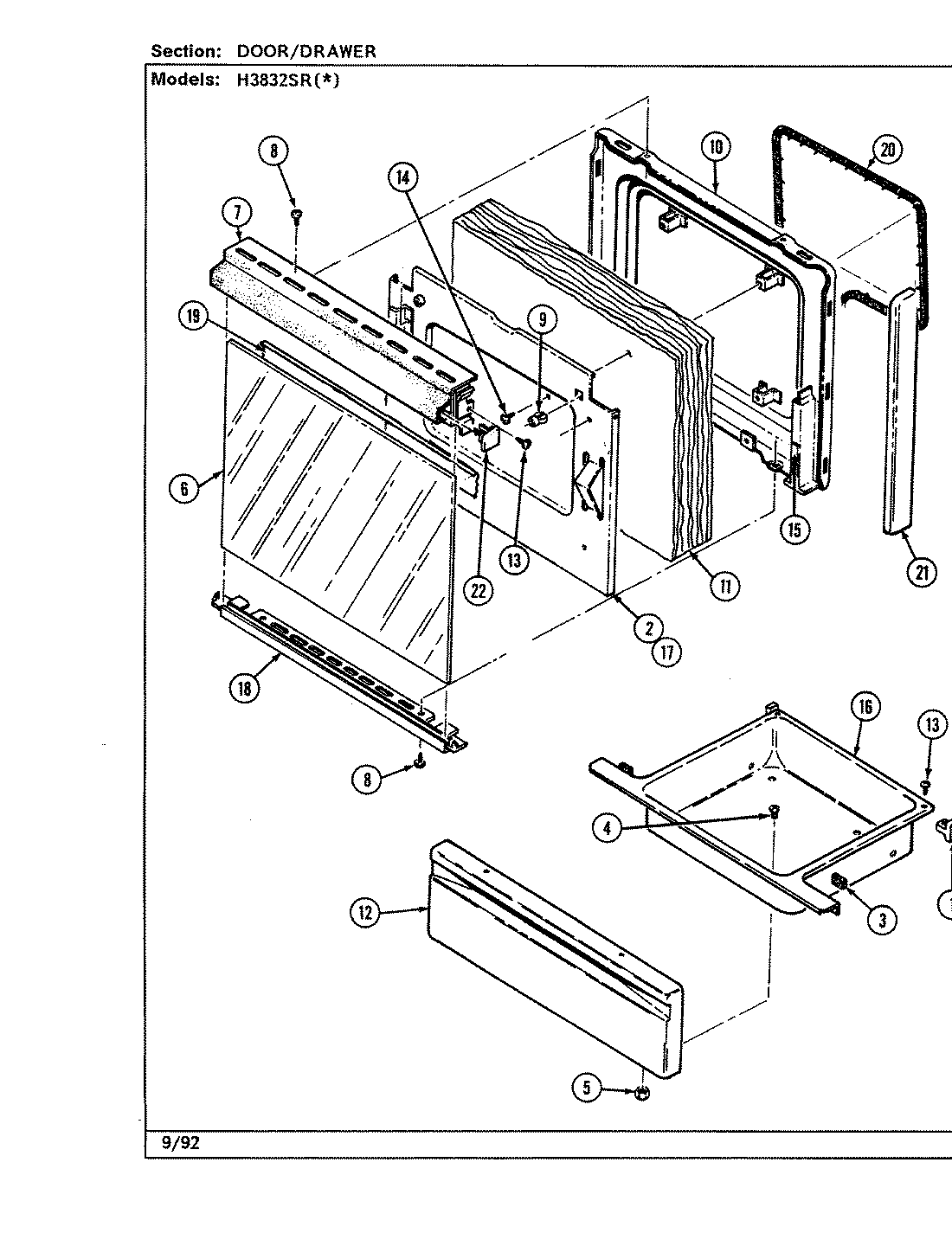

H3832SRW 03 – DOOR/DRAWER

Products

Position	Product
1	WP8004P026-60 Whirlpool Support
2	MAY 3601F218-45
3	MAY 8010P086-60
4	WP4159193 Whirlpool Screw
5	WPW10131078 Whirlpool Nut Assembly
6	MAY 7902P325-60
7	MAY 7701P103-60
8	WP98008545 Whirlpool Screw
9	MAY 8010P075-60
10	MAY 2402W200-19
11	MAY 4804F012-60
12	MAY 2416F039-62
13	MAY 7101P291-60
14	MAY 7101P290-60
15	MAY 7208P011-60
16	MAY 3405F015-80
17	MAY 8010P085-60
18	MAY 7744P078-60
19	TAPE, FOIL (3`` WIDE)
20	GASKT-DOOR OVEN
21	MAY 7744P055-60
22	MAY 7744P076-60
22	MAY 7744P075-60
