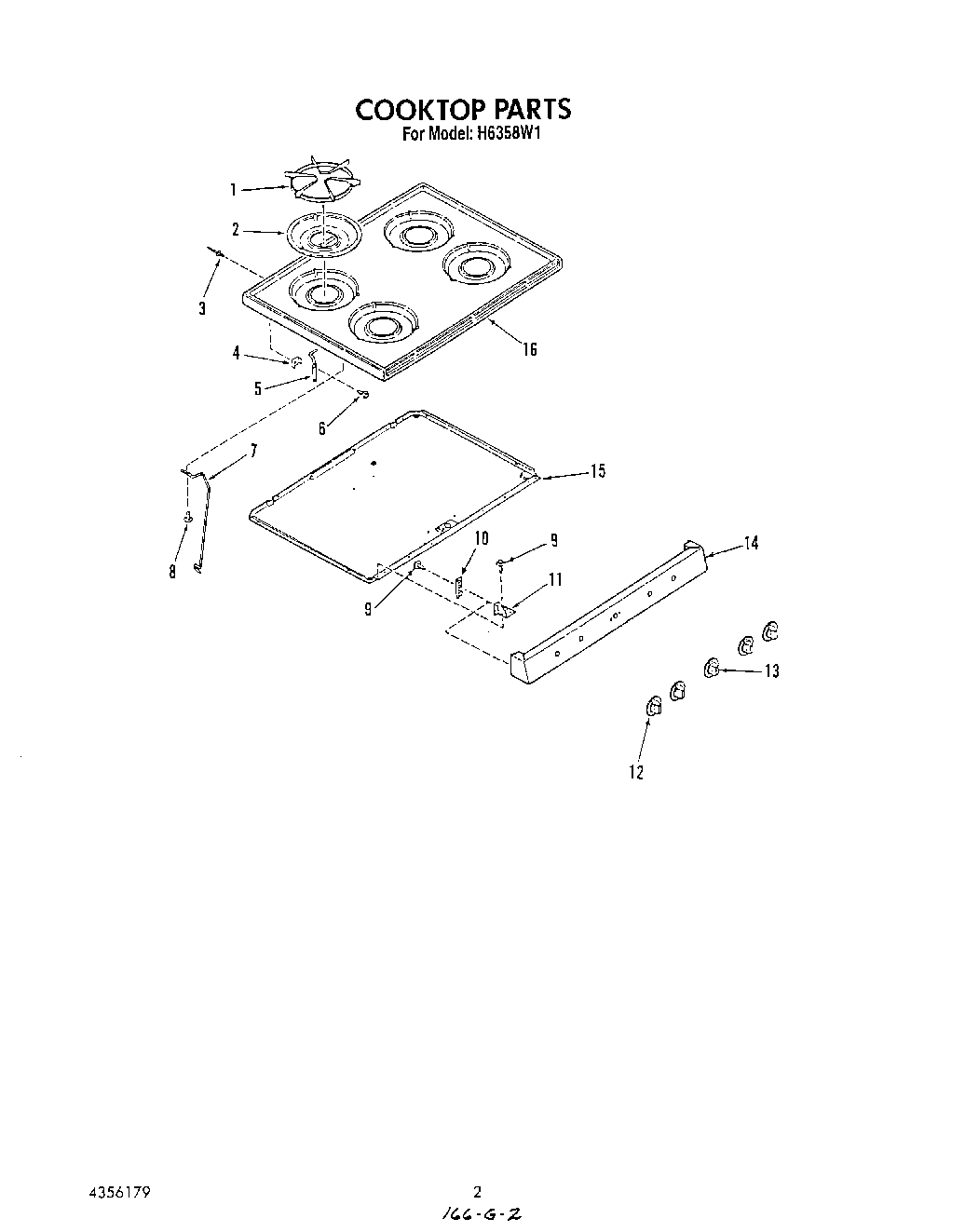

H6358^1 02 – COOK TOP

Products

Position	Product
1	Grate, Burner (4)
2	Pan, Aeration
3	Rivet
4	Bracket, Mounting
5	Hinge (Right)
5	Hinge (Left)
6	WP999367 Whirlpool Refrigerator Screw
7	Rod, Support
8	Screw No.6-20×3/8
9	SCREW
10	Cleat
11	Bracket, Manifold (Right)
11	Bracket, Manifold (Left)
12	Knob, Gas Valve (4)
13	Knob, Thermostat
14	Panel, Manifold
15	Bottom, Burner Box
16	Cooktop (White)
16	Cooktop (Almond)
