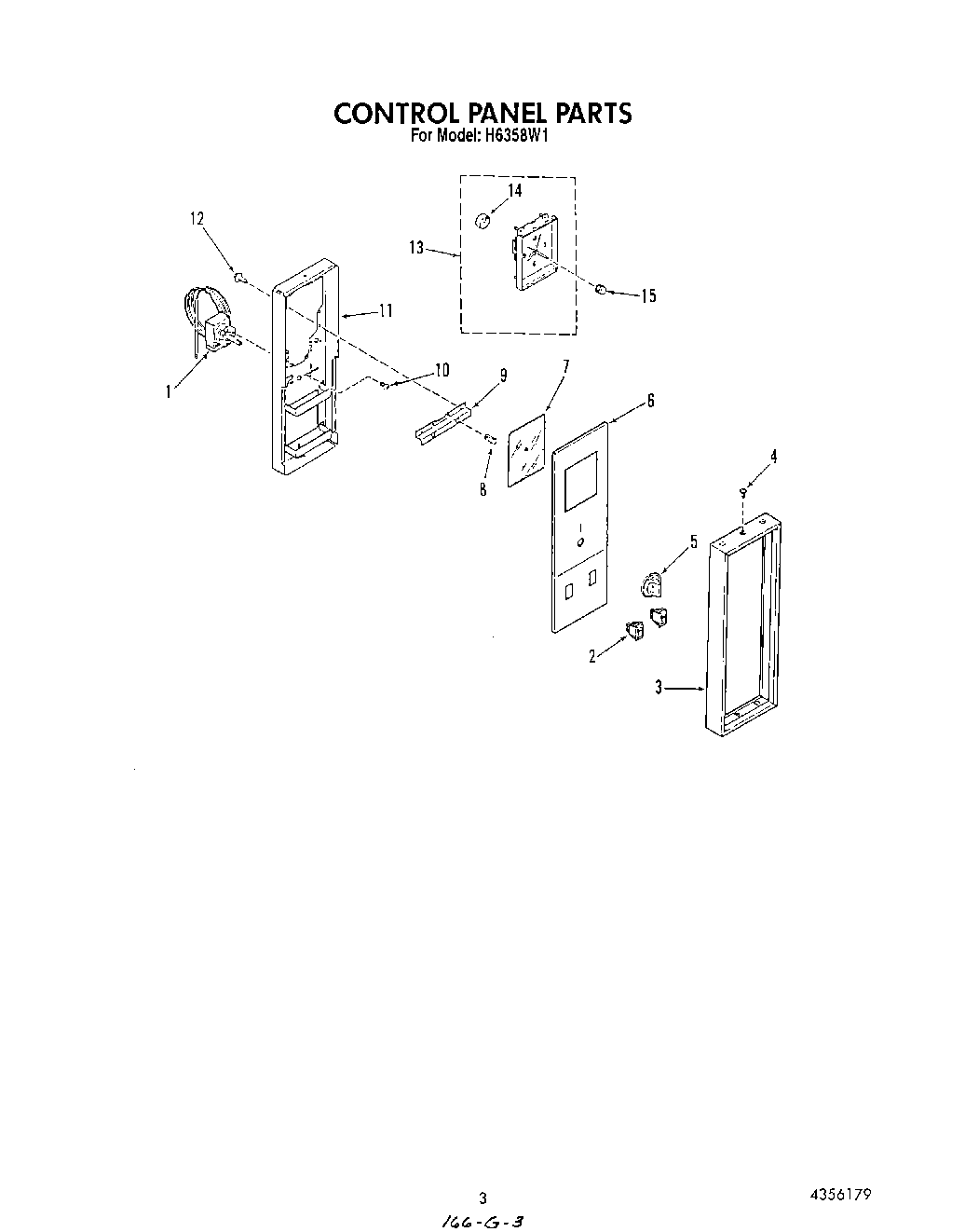

H6358L1 03 – CONTROL PANEL

Written by

Products

Position	Product
1	Thermostat-Upper
2	WP4314961 Whirlpool Lite Switch
3	Frame, Control Panel
4	Screw No.10-32×1/2
5	Knob, Thermostat
6	Control Panel
7	Lens, Clock
8	Clip
9	Bracket, Clock (2)
10	Screw
11	Mounting, Control Panel
12	WP489128 Whirlpool Refrigerator Screw
13	Clock W/1 Hr.Timer (60 Cycle)
13	Clock W/1 Hr.Timer (50 Cycle (Opt.))
14	Motor, Clock (60 Cycle)
14	Motor, Clock (50 Cycle (Opt.))
15	Knob, Clock
