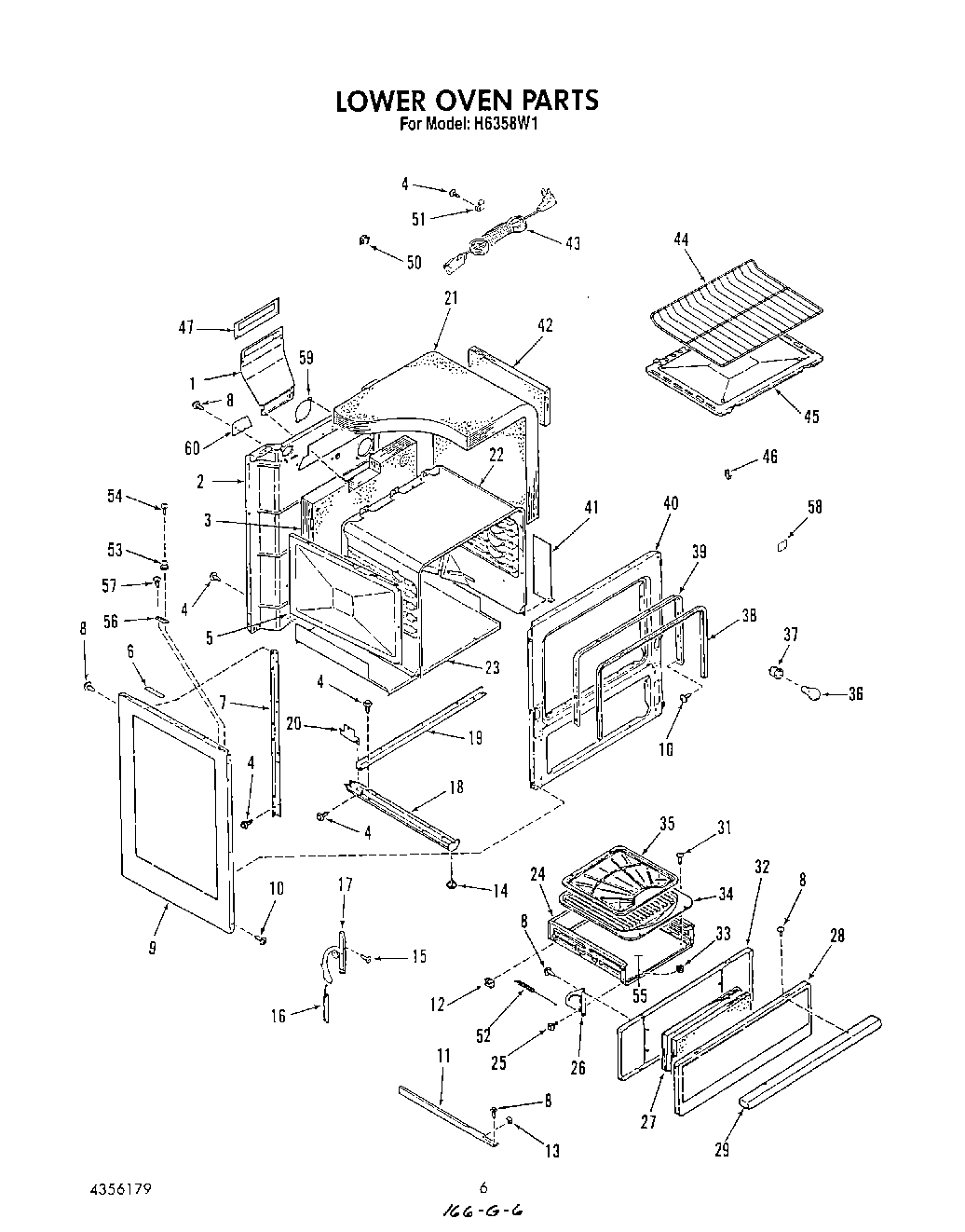

H6358L1 05 – LOWER OVEN

H6358L1 05 – LOWER OVEN

Written by

in

H6358L1 05 – LOWER OVEN

Products

PositionProduct
1Deflector
2Back
3Insulation-Back
4W10850756 Whirlpool Screw
6Spacer
7Support
8SCREW
9Side, Cabinet (Almond)
9Side, Cabinet (White)
10WP308685 Whirlpool Microwave Screw
11Guide-Bro. Drawer (Right Side)
11Guide-Bro. Drawer (Left side)
12Slide Block-Rear
13Slide Block-Front
14Leg Leveler (4)
15Screw
16Spring, Oven Door
17Hinge-Oven Door (Left)
17Hinge-Oven Door (Right)
18Base W/Levelers
19Back, Main
20Bracket, Support (Right)
20Bracket, Support (Left)
21Insulation, Wrap
22Oven Body
23Bottom, Main
24Drawer, Broiler
25Bolt, Shoulder
26Hinge, Bro. Door (Right)
26Hinge, Bro. Door (Left)
28Panel, Front Storage Door
29Handle
31Screw No.10-32×1/2
32Lining, Broiler Door
33W10080180 Whirlpool Nut
34Pan, Broiler
35Grid, Broiler Pan
36RANGE ONLY 40W 120V APPL BULB
37W10856866 Whirlpool Light Socket
38Seal, Oven Door
39Retainer, Oven-Door-Seal
40Frame, Front
41Retainer, Insul., (Lt/Rt)
42Insulation (Rt/Lt)
43Service Cord
44Rack, Oven (2)
45Bottom, Oven
46Clip
47Insulation, Flue Deflector
50Disconnect
51Clip (For No.1)
52Spring, Broiler-Drawer
53Strike
54Screw No.6-32×7/8
55Bottom, Broiler
56Support, Side (Right)
56Support, Side (Left)
57Screw
58Plug, Button
59WPL 4342682
60WPL 4342683
