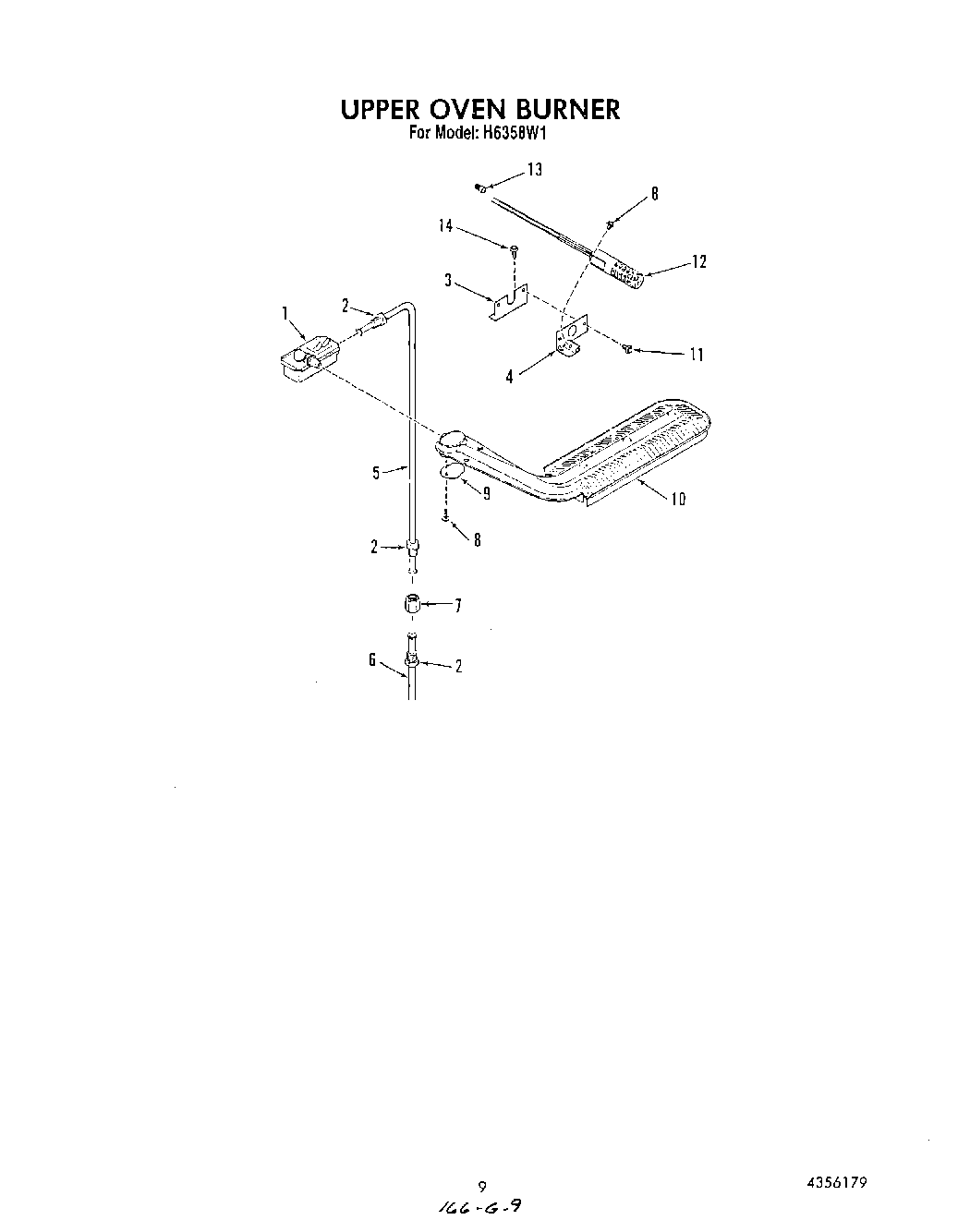

H6358L1 07 – UPPER OVEN BURNER

H6358L1 07 – UPPER OVEN BURNER

Written by

in

H6358L1 07 – UPPER OVEN BURNER

Products

PositionProduct
1Valve, Control
2Nut, Inverted 3/8
3Bracket, Igniter
4Bracket, Igniter
5Tubing 3/8“ (Union To Control Valve)
6Tubing 3/8“, (Inc`s 9)
7Union 3/8“
8Screw No.10-32×1/4
9Air Shutter
10Oven Burner
11Screw, No.10 x 3/8
12Ignitor-Bake/Broil
13WP4323866 Whirlpool Connector
14W10850756 Whirlpool Screw
