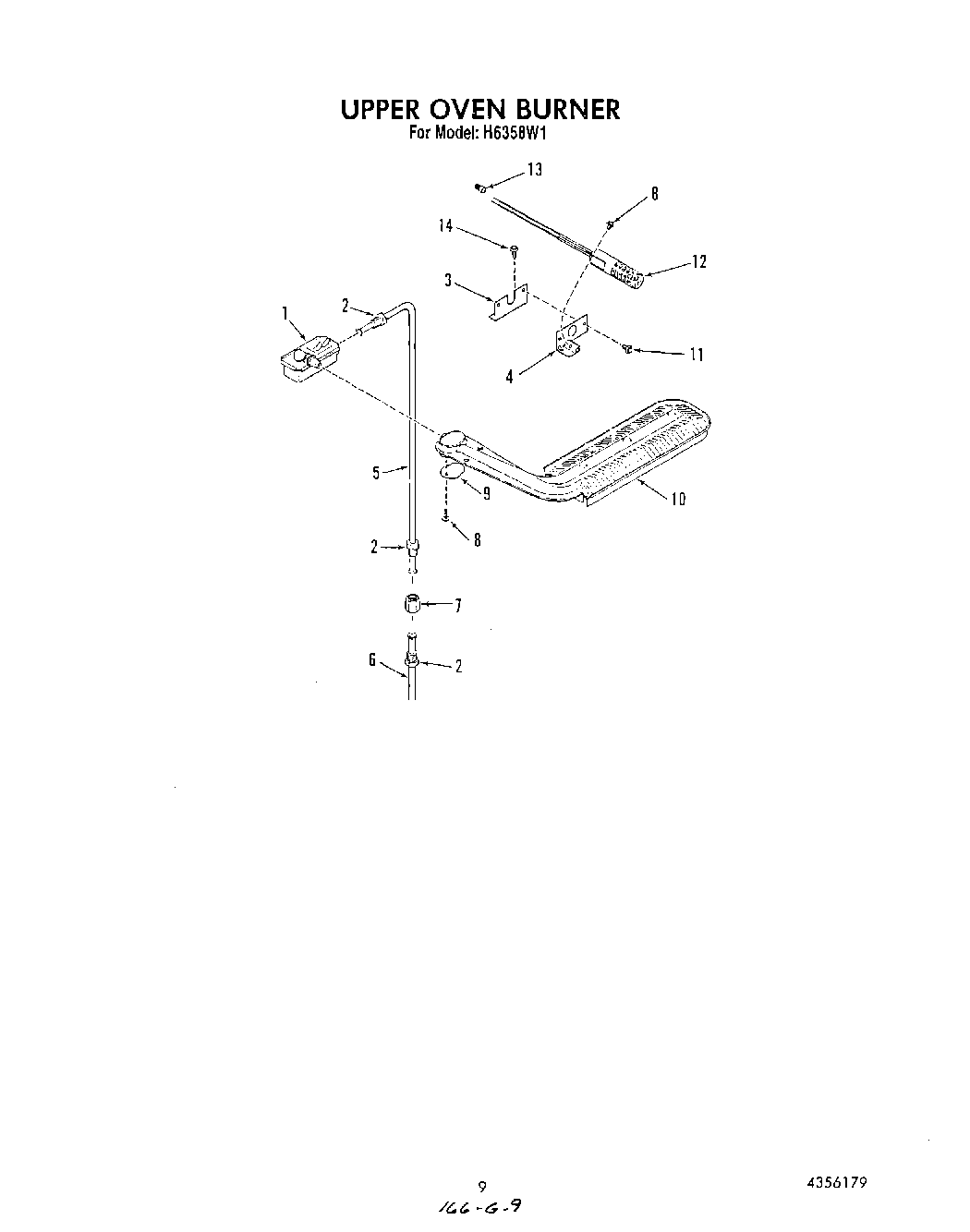

H6358W1 07 – UPPER OVEN BURNER

Products

Position	Product
1	Valve, Control
2	Nut, Inverted 3/8
3	Bracket, Igniter
4	Bracket, Igniter
5	Tubing 3/8`` (Union To Control Valve)
6	Tubing 3/8``, (Inc`s 9)
7	Union 3/8``
8	Screw No.10-32x1/4
9	Air Shutter
10	Oven Burner
11	Screw, No.10 x 3/8
12	Ignitor-Bake/Broil
13	WP4323866 Whirlpool Connector
14	W10850756 Whirlpool Screw
