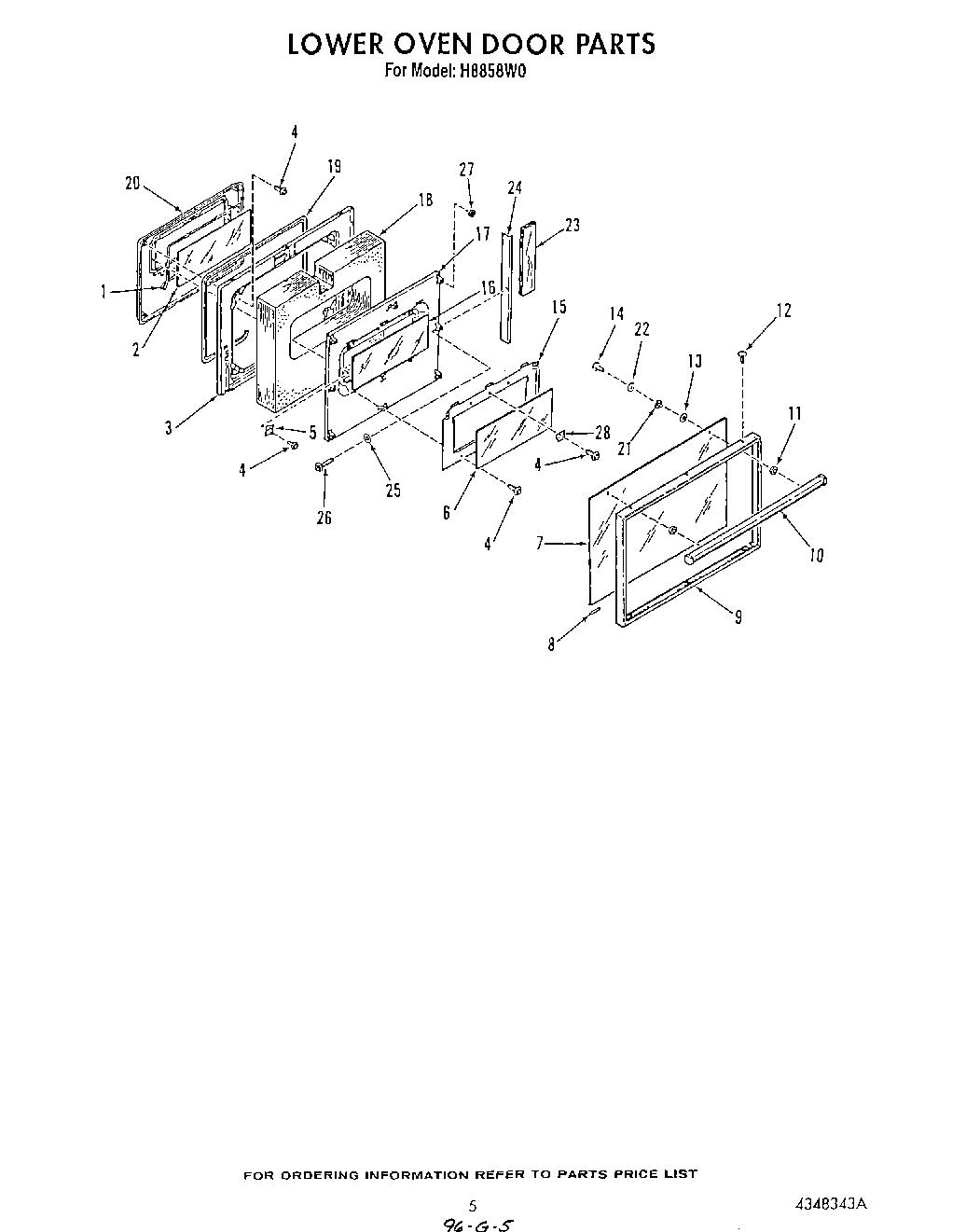

H8858^0 05 – LOWER OVEN DOOR

Products

Position	Product
1	Seal, Inner Glass
2	Glass-Inner
3	Lining
4	SCREW
5	Retainer
6	Glass, Intermediate
7	WPL 4342684
8	Cushion
9	Frame, Door
10	Handle, Door
11	Spacer, Dr. Handle
12	Screw
13	Washer, Fiber
14	WP999367 Whirlpool Refrigerator Screw
15	Mounting Plate
16	Glass, Center
17	Retainer, Insulation
18	Insulation
19	Gasket, Door
20	Plug, Door Lining
21	Spacer, Glass Door
22	Washer
23	Insulation
24	Baffle, Side
25	Washer
26	Screw, No.10 x 1
27	Washer, Felt
28	Retainer, Glass
