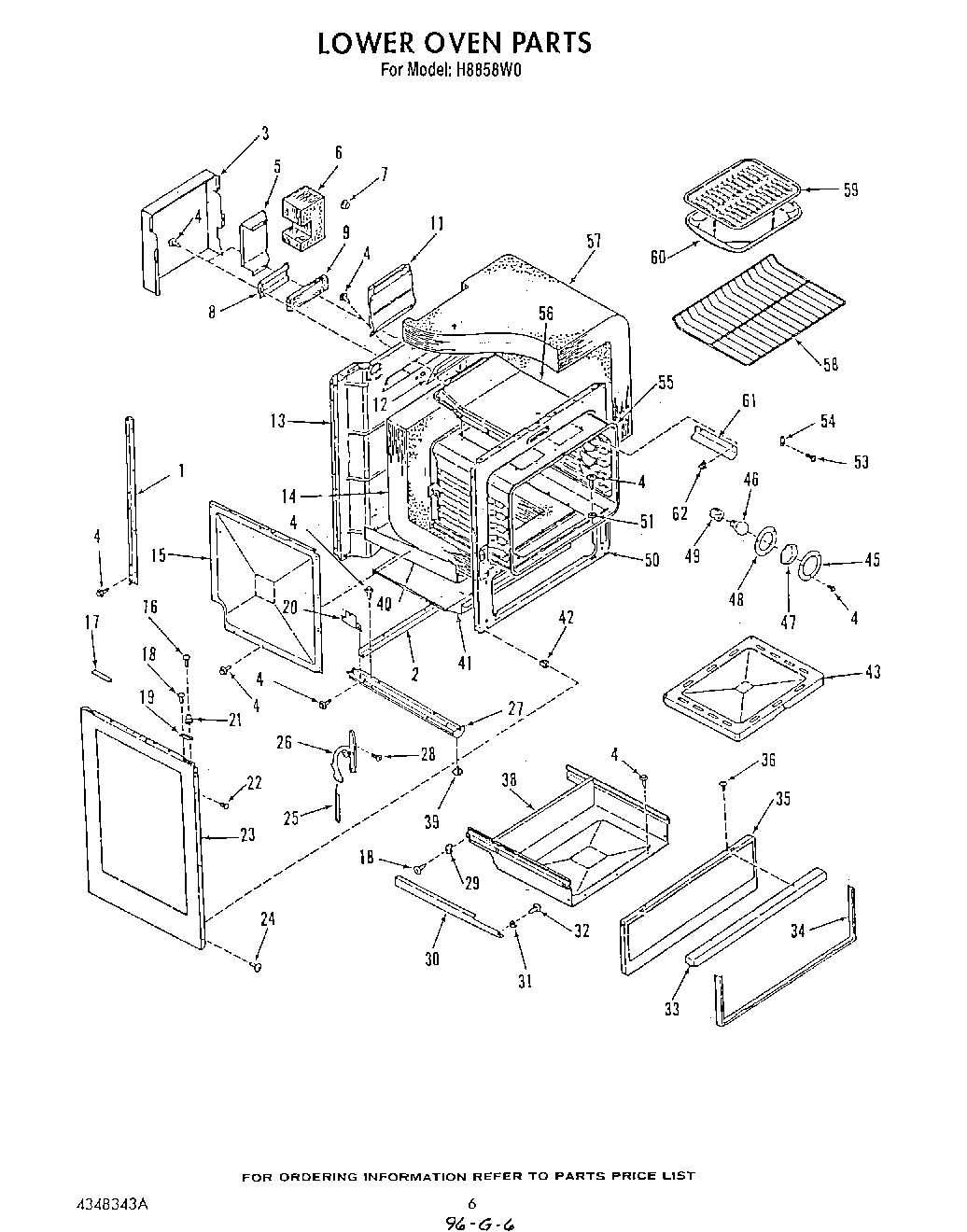

H8858^0 06 – LOWER OVEN

Products

Position	Product
1	Support
2	Strap
3	Shield, Deflector
4	SCREW
5	Wire Shield
6	Insulation
7	Bushing
8	Shield, Wire
9	Insulation
11	Deflector, Flue
12	Insulation, Flue
13	Back, Main
14	Insulation, Back And Bottom
15	Retainer, Insulation
16	Screw No.6-32×7/8
17	Spacer
19	Support, Side (Right)
19	Support, Side (Left)
20	Bracket, Support (Left)
20	Bracket, Support (Right)
21	Strike
22	Rivet
23	Side, Cabinet (White)
23	Side, Cabinet (Almond)
24	Screw No.8×5/8
25	Spring, Oven Door
26	Hinge, Oven Door (Left)
26	Hinge, Oven Door (Right)
27	Base W/Levelers
28	Screw
29	Rear Slide Block (Lt/Rt)
30	Support, (Lt/Rt), Storage Drawer
31	Front Slide Block, Lt/Rt
32	Screw, No.10-32 x 17/32
33	Handle
34	Frame, Drawer
35	Panel, Front
36	Screw
38	Drawer, Storage
39	Leg Leveler (4)
40	Retainer, Lower Insulation
41	Baffle, Vent
42	Nut-Expansion (6)
43	Bottom, Oven
45	Retainer, Lens
46	RANGE ONLY 40W 120V APPL BULB
47	Lens, Oven Light
48	Gasket, Lens
49	W10856866 Whirlpool Light Socket
50	Frame, Oven Front
51	Washer
53	Screw
54	Cover
55	Oven Cavity
56	Flue Box
57	Insulation, Top And Sides (1 Pc)
58	Oven Rack (Folding)
59	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Shield
62	Clip
