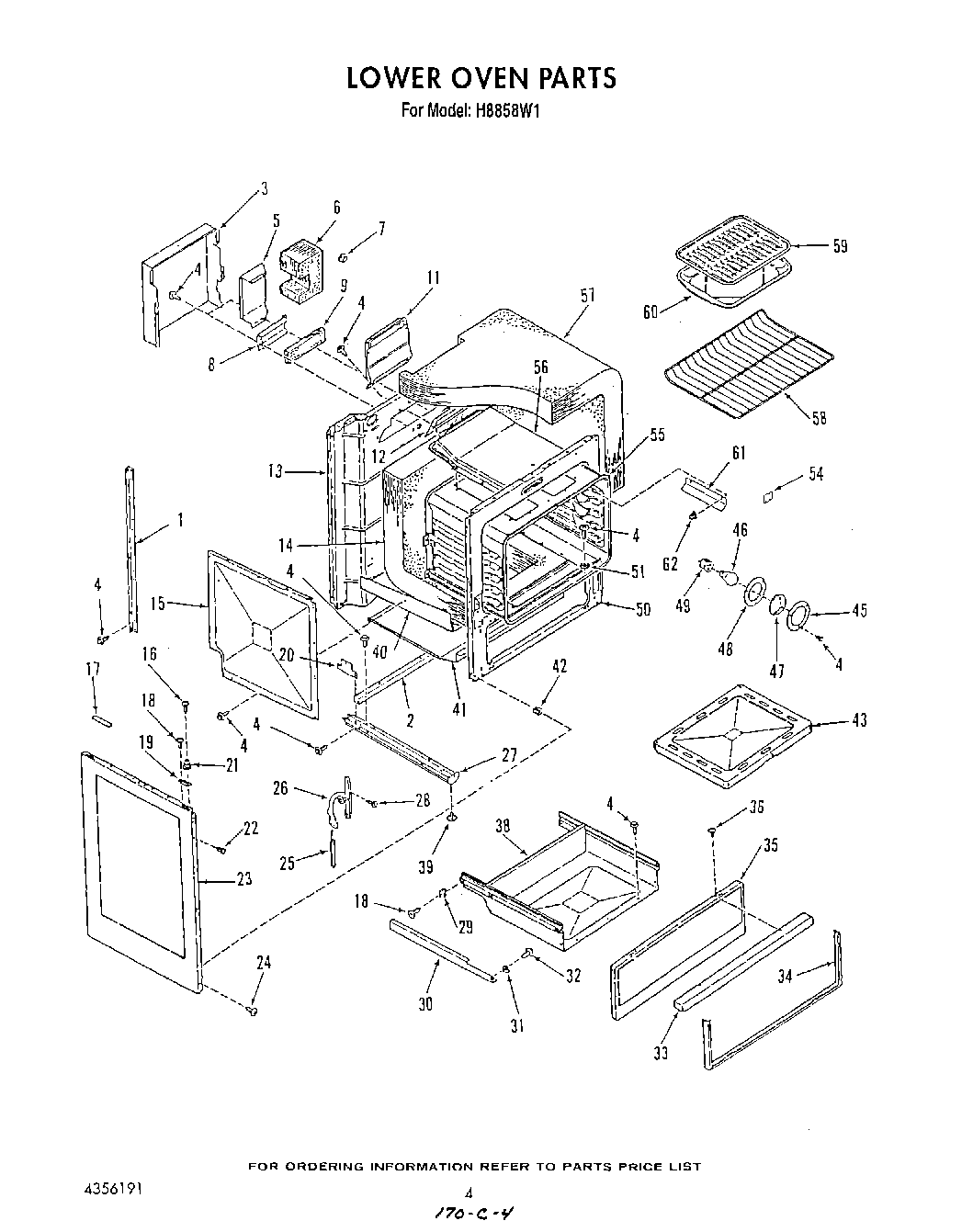

| 1 | Support |
| 2 | Strap |
| 3 | Shield, Deflector |
| 4 | SCREW |
| 5 | Wire Shield |
| 6 | Insulation |
| 7 | Bushing |
| 8 | Shield, Wire |
| 9 | Insulation |
| 11 | Deflector, Flue |
| 12 | Insulation, Flue |
| 13 | Back |
| 14 | Insulation, Back And Bottom |
| 15 | Retainer, Insulation |
| 16 | Screw No.6-32x7/8 |
| 17 | Spacer |
| 18 | Screw |
| 19 | Support, Side (Left) |
| 19 | Support, Side (Right) |
| 20 | Bracket, Support (Right) |
| 20 | Bracket, Support (Left) |
| 21 | Strike |
| 22 | Rivet |
| 23 | Side, Cabinet (White) |
| 23 | Side, Cabinet (Almond) |
| 24 | Screw No.8x5/8 |
| 25 | Spring, Oven Door (Lt/Rt) |
| 26 | Hinge, Oven Door (Right) |
| 26 | Hinge, Oven Door (Left) |
| 27 | Base W/Levelers |
| 28 | Screw |
| 29 | Rear Slide Block (Lt/Rt) |
| 30 | Support, (Lt/Rt), Storage Drawer |
| 31 | Front Slide Block, Lt/Rt |
| 32 | Screw, No.10-32 x 17/32 |
| 33 | Handle |
| 34 | Frame, Storage Door Panel |
| 35 | Panel, Front |
| 36 | Screw |
| 38 | Drawer, Storage |
| 39 | Leg Leveler (4) |
| 40 | Retainer, Lower Insulation |
| 41 | Baffle, Vent |
| 42 | Nut-Expansion (6) |
| 43 | Bottom, Oven |
| 45 | Retainer, Lens |
| 46 | RANGE ONLY 40W 120V APPL BULB |
| 47 | Lens, Oven Light |
| 48 | Gasket, Lens |
| 49 | W10856866 Whirlpool Light Socket |
| 50 | Frame, Oven Front |
| 51 | Washer |
| 54 | Plug, Button |
| 55 | Oven Cavity |
| 56 | Flue Box |
| 57 | Insulation, Top And Sides (1 Pc) |
| 58 | Rack, Oven (2) |
| 59 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 61 | Shield |
| 62 | Clip |
