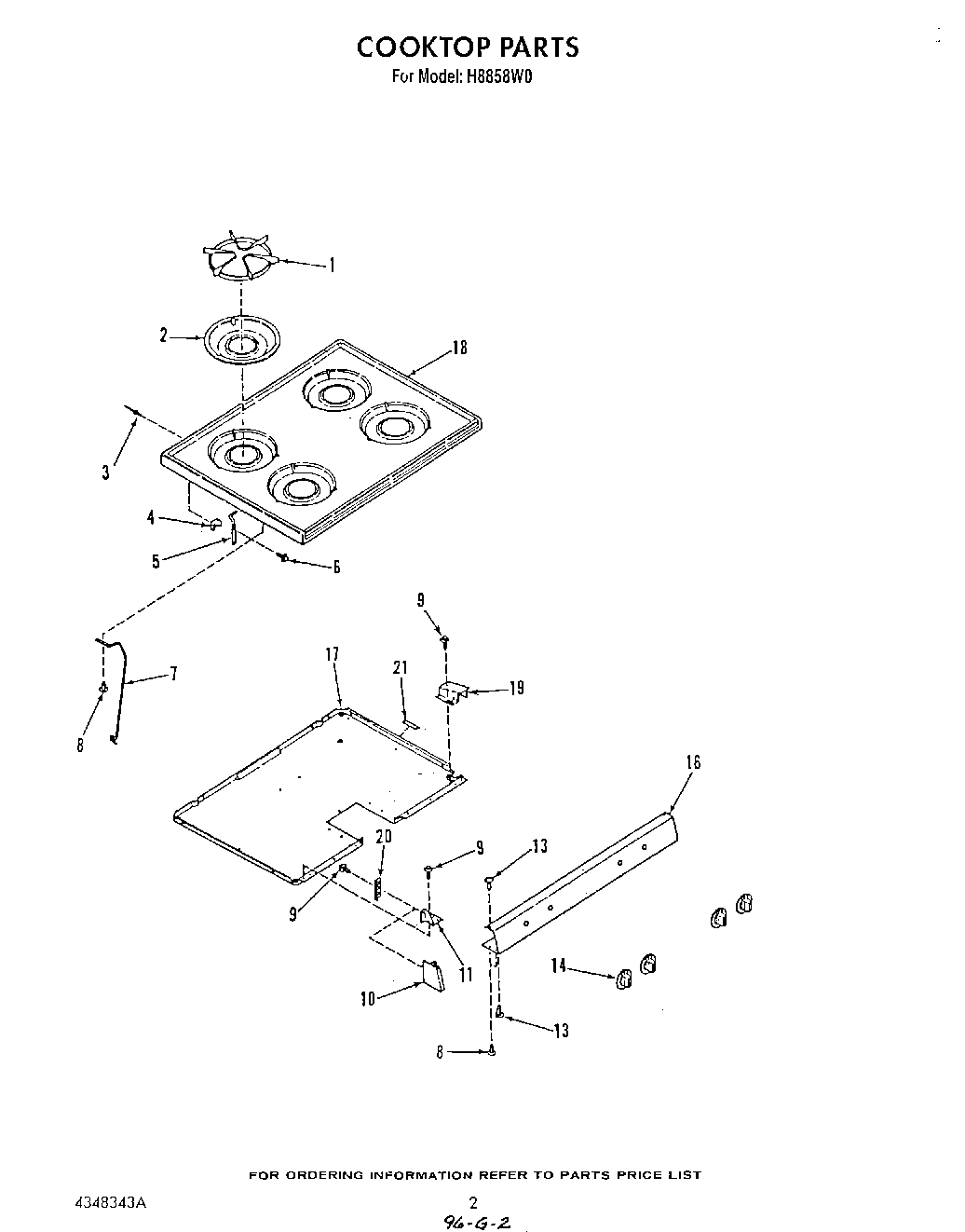

H8858L0 02 – COOK TOP

H8858L0 02 – COOK TOP

Written by

in

H8858L0 02 – COOK TOP

Products

PositionProduct
1Grate, Burner (4)
2Pan, Aeration
3Rivet
4Bracket, Mounting
5Hinge (Left)
5Hinge (Right)
6WP999367 Whirlpool Refrigerator Screw
7Rod, Support
8Screw
9SCREW
10End Cap (Left)
10End Cap (Right)
11Bracket, Manifold (Right)
11Bracket, Manifold (Left)
13Screw
14Knob, Gas Valve (4)
16Panel, Manifold
17Bottom, Burner Box
18Cooktop (White)
18Cooktop (Almond)
19Wire Cover
20Cleat
21Spacer, Tubing
