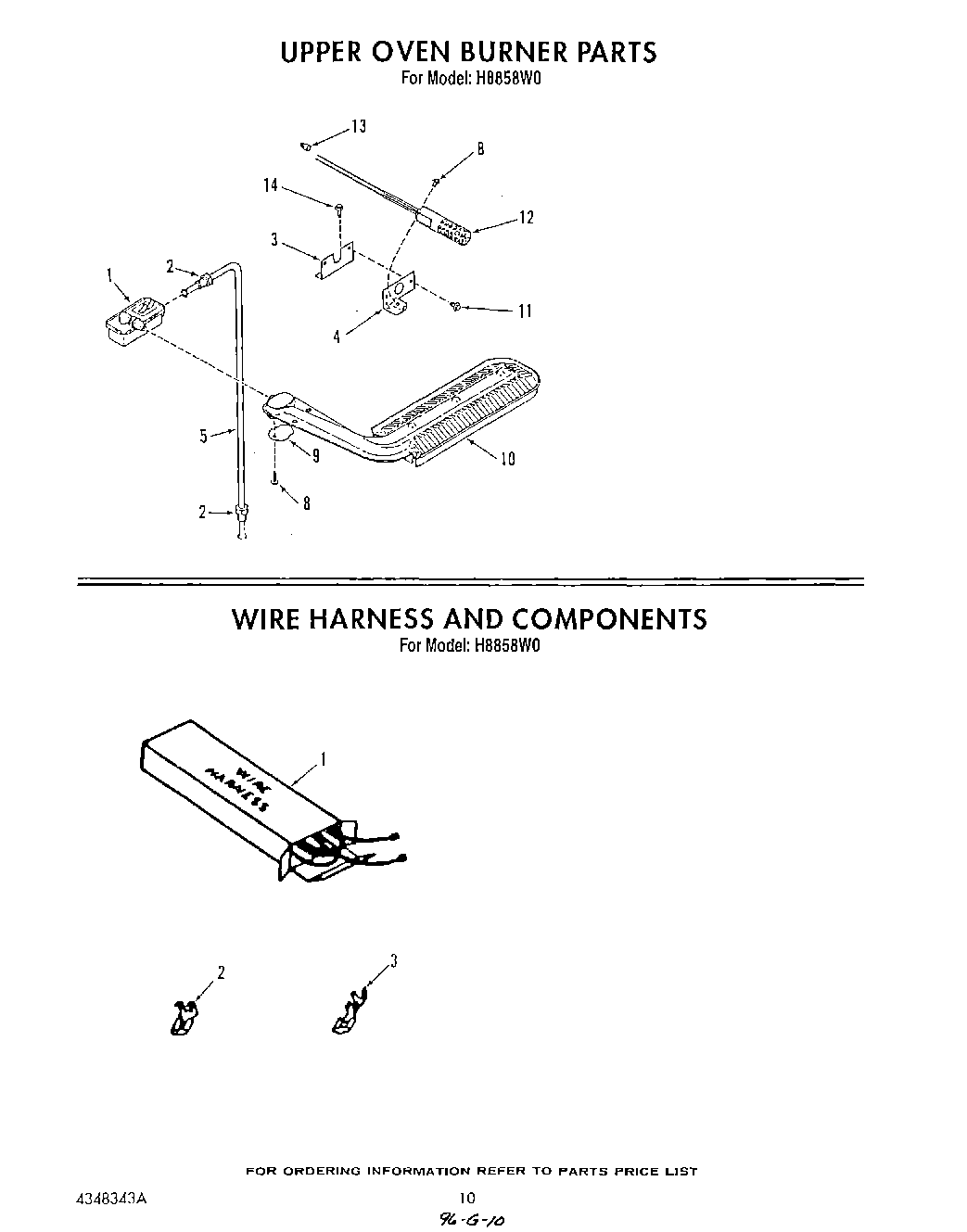

H8858L0 08 – UPPER OVEN BURNER/WIRE HARNESS & COMP

H8858L0 08 – UPPER OVEN BURNER/WIRE HARNESS & COMP

Written by

in

H8858L0 08 – UPPER OVEN BURNER/WIRE HARNESS & COMP

Products

PositionProduct
A1Harness, Wire (Switches, Valve)
A1Harness, Wire (Main – Upper)
A1Harness, Wire (Main – Lower)
A1Harness, Wire (Igniter)
Repair Parts List
A2Flag Terminal
A3Wire Harness (3/16“)
Owner`s Manual
A3WP285432 Whirlpool Terminal
1Valve, Control
2Nut, Inverted 3/8
3Bracket, Igniter
4Bracket, Igniter
5Tubing 3/8“ (Tee To Control Valve)
8Screw No.10-32×1/4
9Air Shutter
10Oven Burner
11Screw, No.10 x 3/8
12Ignitor-Bake/Broil
13WP4323866 Whirlpool Connector
14W10850756 Whirlpool Screw
