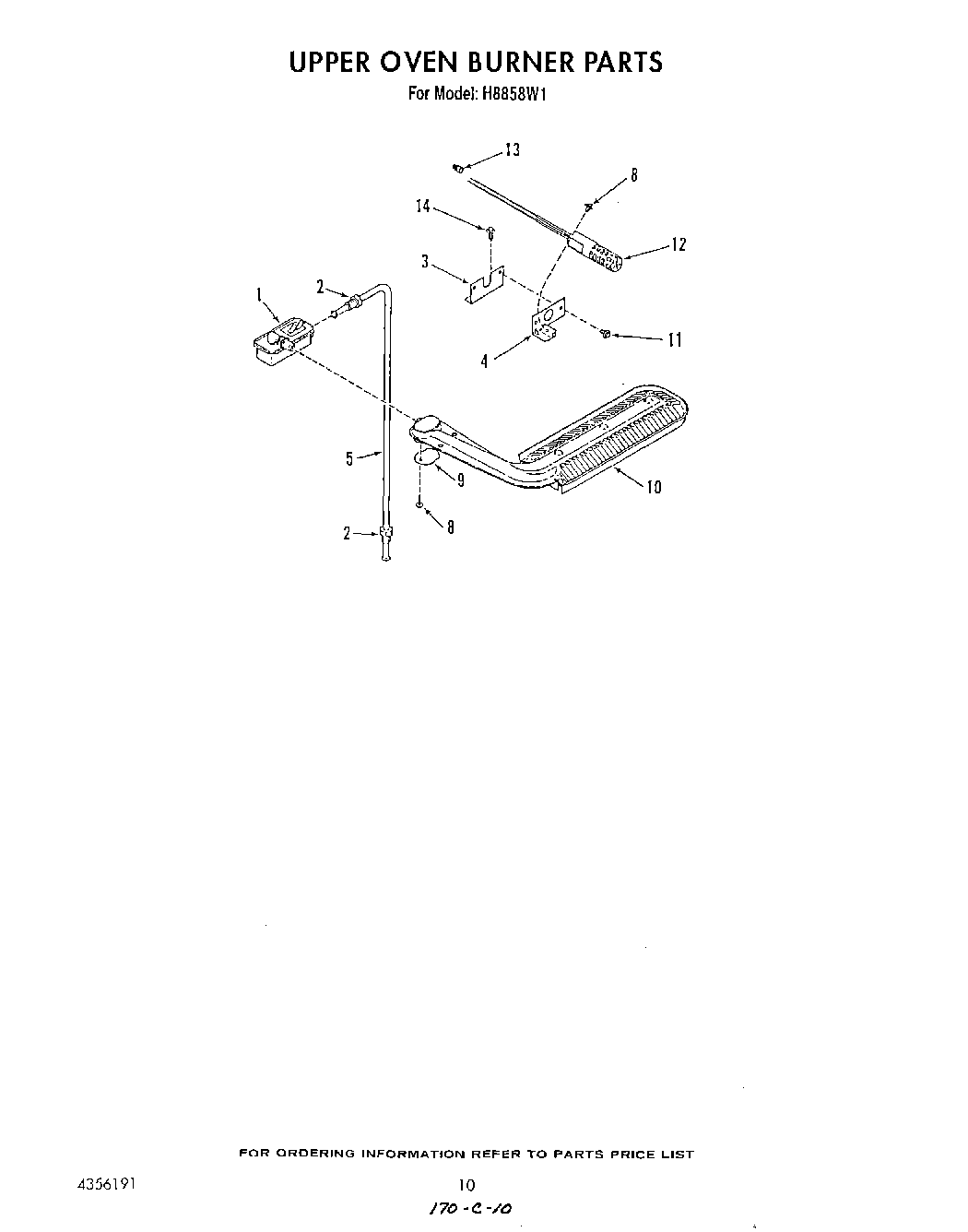

H8858L1 08 – UPPER OVEN BURNER

H8858L1 08 – UPPER OVEN BURNER

Written by

in

H8858L1 08 – UPPER OVEN BURNER

Products

PositionProduct
Repair Parts List
1Valve, Control
2Nut, Inverted 3/8
3Bracket, Igniter
4Bracket, Igniter
5Tubing 3/8“ (Tee To Control Valve)
8Screw No.10-32×1/4
9Air Shutter
10Oven Burner
11Screw, No.10 x 3/8
12Ignitor-Bake/Broil
13WP4323866 Whirlpool Connector
14Harness, Wire (Igniter)
14Harness, Wire (Main – Lower)
14Harness, Wire (Main – Upper)
14Harness, Wire (Switches, Valve)
14W10850756 Whirlpool Screw
