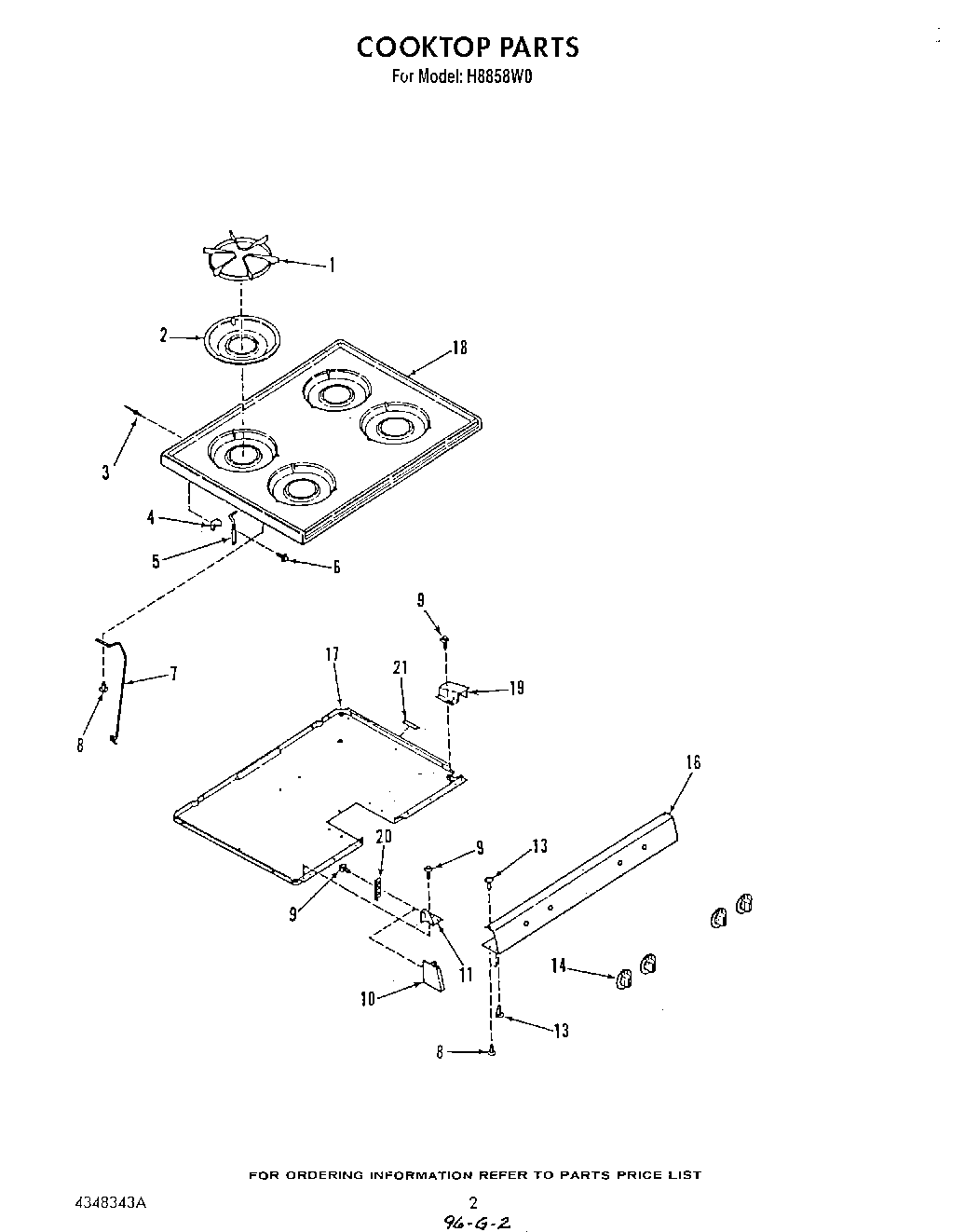

| 1 | Grate, Burner (4) |
| 2 | Pan, Aeration |
| 3 | Rivet |
| 4 | Bracket, Mounting |
| 5 | Hinge (Left) |
| 5 | Hinge (Right) |
| 6 | WP999367 Whirlpool Refrigerator Screw |
| 7 | Rod, Support |
| 8 | Screw |
| 9 | SCREW |
| 10 | End Cap (Left) |
| 10 | End Cap (Right) |
| 11 | Bracket, Manifold (Right) |
| 11 | Bracket, Manifold (Left) |
| 13 | Screw |
| 14 | Knob, Gas Valve (4) |
| 16 | Panel, Manifold |
| 17 | Bottom, Burner Box |
| 18 | Cooktop (White) |
| 18 | Cooktop (Almond) |
| 19 | Wire Cover |
| 20 | Cleat |
| 21 | Spacer, Tubing |
