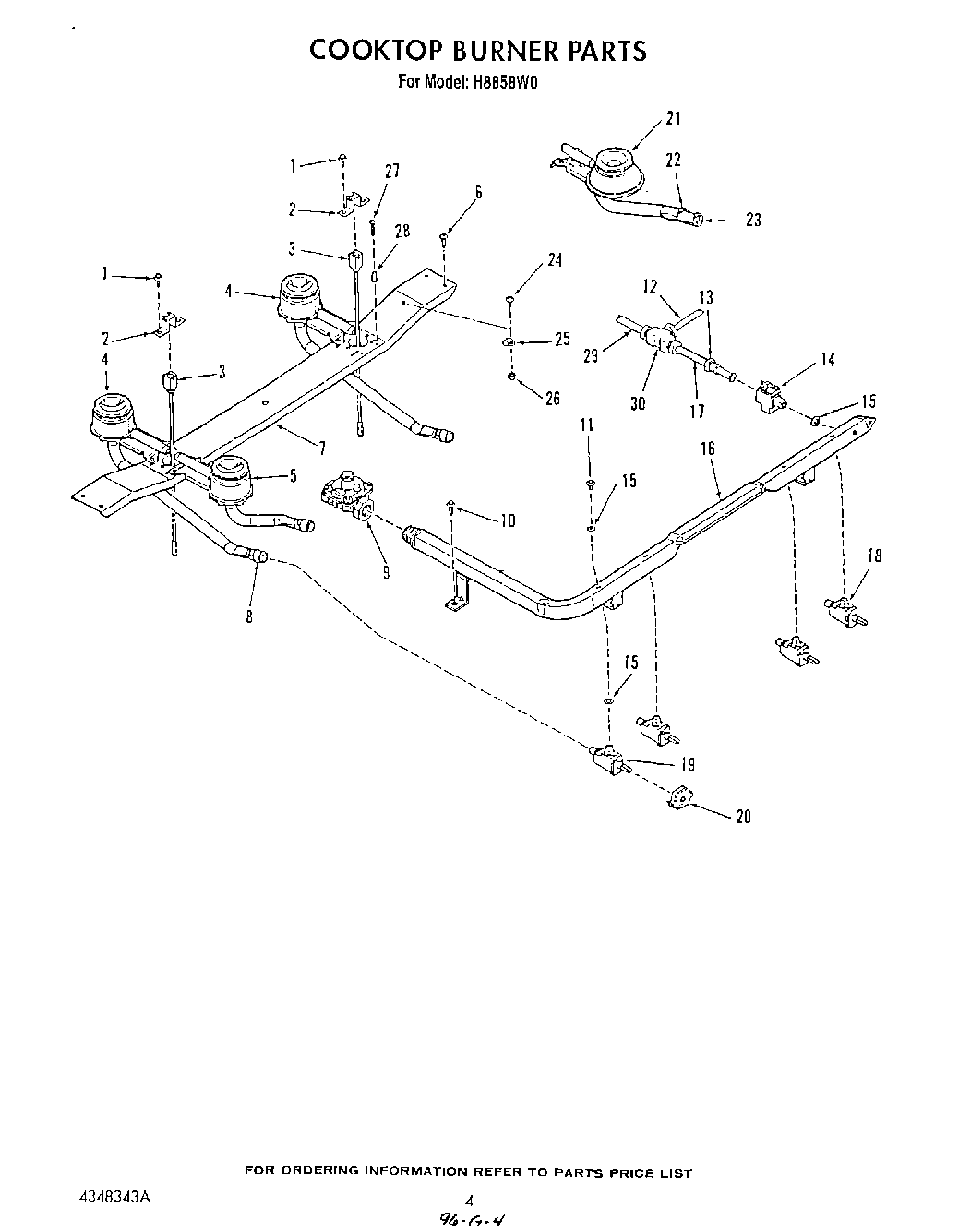

H8858W0 04 – COOK TOP BURNER

Products

Position	Product
1	WP489128 Whirlpool Refrigerator Screw
2	Bracket-Ignitor (Lt or Rt)
3	Electrode (Left)
3	Electrode (Right)
4	Burner-Rear, Lt. or Rt. (Incl. No.8)
5	Burner, Front-Lt. or Rt. (Incl. No.8)
6	Screw No.6-20×3/8
7	Support, Top Burner
8	Air Shutter
9	Regulator-Pressure
10	SCREW
11	Screw, Mounting-1 Each-illus. 10 & 20
12	Tubing, 3/8“
13	Nut, Inverted 3/8
14	Valve, Shut Off
15	Seal, Valve-1 ea. Illus. 10 & 20
16	Manifold
17	Tubing, 3/8“
18	Gas Valve, Right Front (Inc`s No.11)
19	Gas Valve, Rt Rear Lt. Frt, Lt. Rear (Inc`s No.11)
20	WP4330739 Whirlpool Igniter Switch
21	Rt. Front Burner (Inc`s 22 & 23)
22	Screw-Adjustment, (Air Shutter)
23	Shutter, Air
24	Screw, No.8-32 x 3/8
25	Clip
26	WP488130 Whirlpool Air Conditioner Nut
27	Screw No.6-32×7/8
28	Eyelet
29	Tubing, 3/8“
30	Fitting
