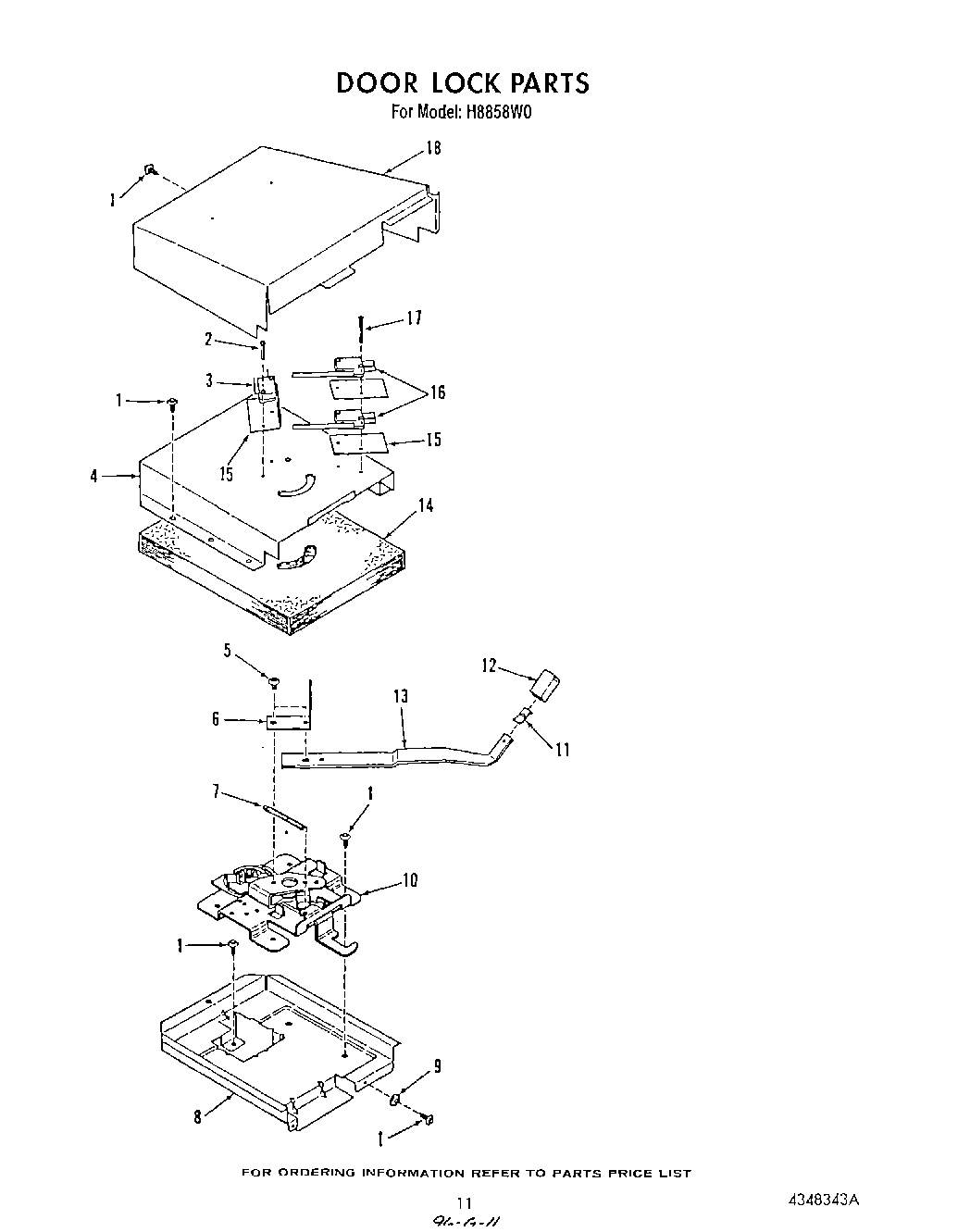

H8858W0 09 – DOOR LOCK – Aparts

H8858W0 09 – DOOR LOCK

Products

Position	Product
1	SCREW
2	Screw No.4-40x11/16
3	Switch, Micro
4	Cover, Lock Box
5	Screw, No.10-24 x 1/4
6	Extension, Handle
7	Spring
8	Box, Lock
9	Washer
10	Latch Assembly (Inc`s No.7)
11	Clip
12	Knob, Lock
13	Handle, Latch
14	Insulation
15	Insulator
16	Switch, Micro
17	Screw, No.4-40 x 1 9/16
18	Cover, Wire
