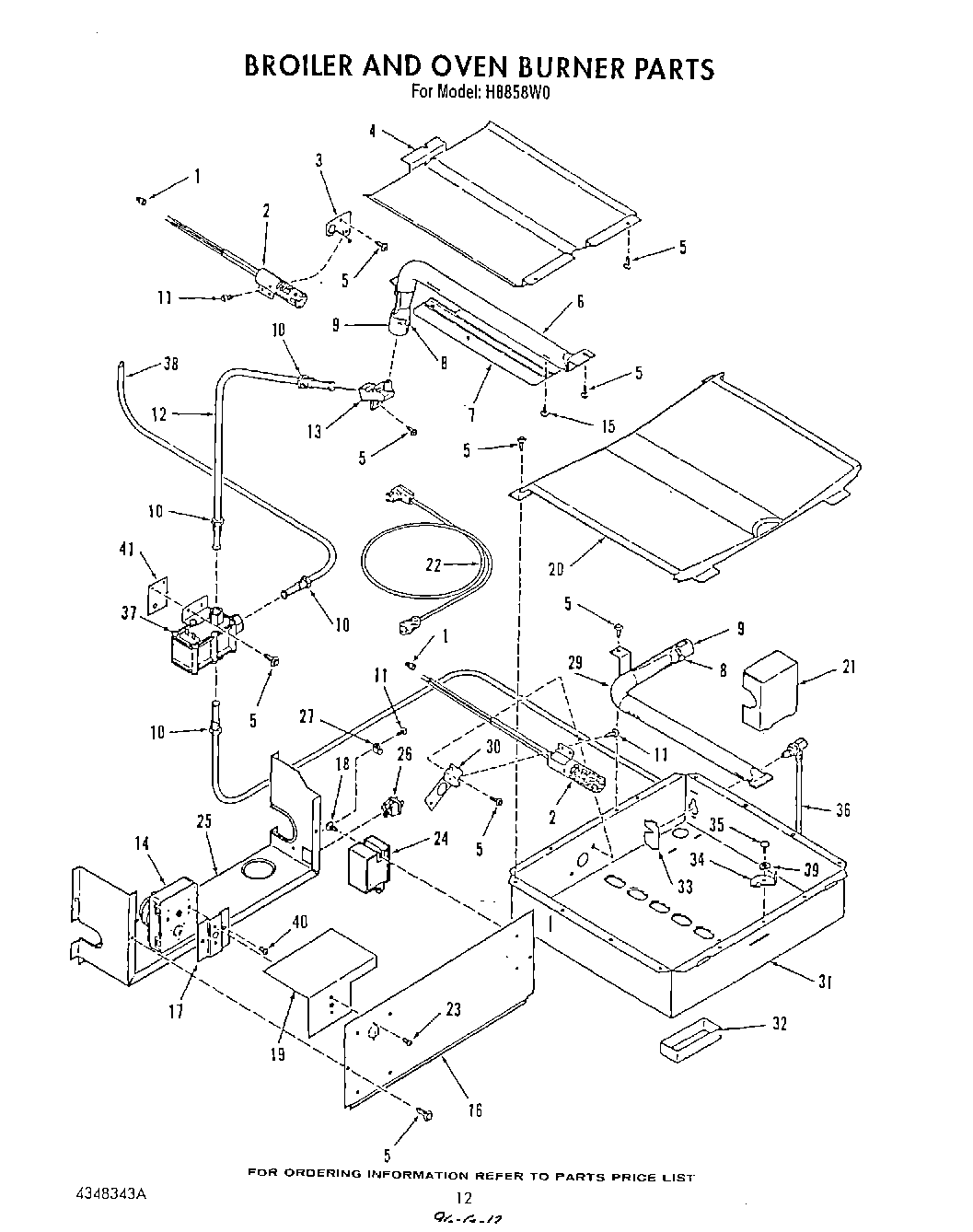

H8858W0 10 – BROILER AND OVEN BURNER

Products

Position	Product
1	WP4323866 Whirlpool Connector
2	Ignitor-Bake/Broil
3	Bracket, Broiler Burner Igniter
4	Baffle-Broiler Burner
5	SCREW
6	Broiler Burner, (Inc`s 7,8,9,15)
7	Baffle
8	Screw, Adjustment-Air Shutter
9	Shutter, Air
10	Nut, Inverted 3/8
11	W10850756 Whirlpool Screw
12	Tubing 3/8“, Control Valve to Broiler Orifice
13	Fitting-Orifice/-Broiler Burner
14	Timer
15	WP489128 Whirlpool Refrigerator Screw
16	Cover, Bracket
17	Bracket, Timer
18	Screw 6-20×3/8
19	Shield
20	Baffle, Burner
21	Shield, Orifice Fitting
22	Power Cord
23	Screw
24	Module-Spark
25	Mounting Bracket
26	Disconnect
27	Clip
29	Burner, Oven
30	Bracket, Igniter
31	Bottom, Burner Box
32	Retainer, Orifice Insulation
33	Plate, Orifice Mounting
34	Latch, Burner Box Bottom
35	Screw, Shoulder
36	Tubing 3/8“, with Orifice Fitting (Control Valve to Oven Burner)
37	Control Valve
38	Tubing, 3/8“
39	Washer, Spring
40	Screw, No.6-32 x 3/16
41	Bracket, Control Valve
