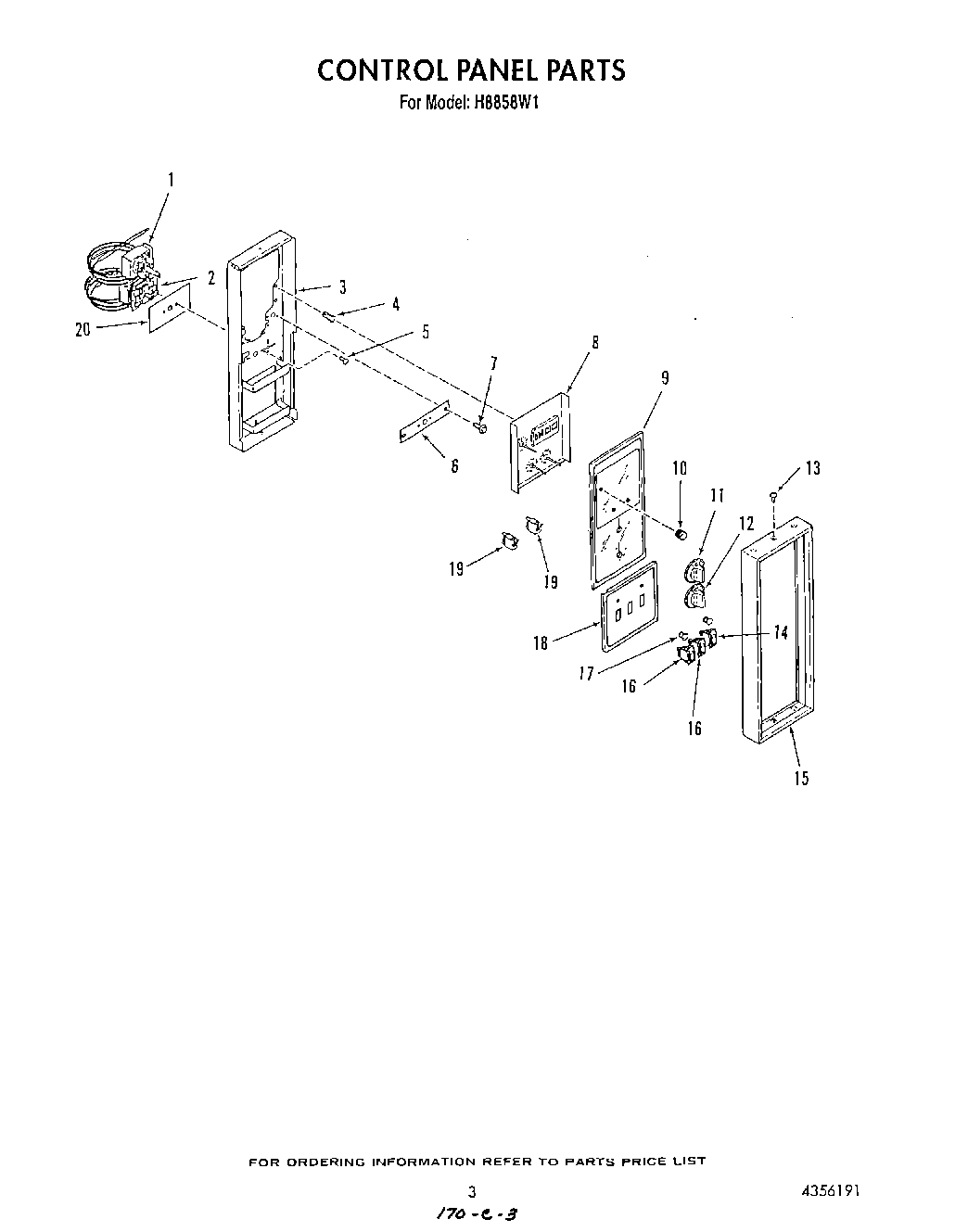

H8858W1 03 – CONTROL PANEL

Written by

Products

Position	Product
1	Thermostat-Upper
2	Thermostat-Lower
3	Mounting Panel
4	Clip
5	Screw
6	Bracket
7	SCREW
8	Clock
9	Glass
10	Knob, Clock
11	Knob, Upper Thermostat
12	Knob, Lower Thermostat
13	Screw No.10-32×1/2
15	Frame, Control Panel
16	WP4314961 Whirlpool Lite Switch
17	WP9750343 Whirlpool Light Lens
18	Panel, Control
19	Indicator Light, (Surface Unit)
20	Barrier
