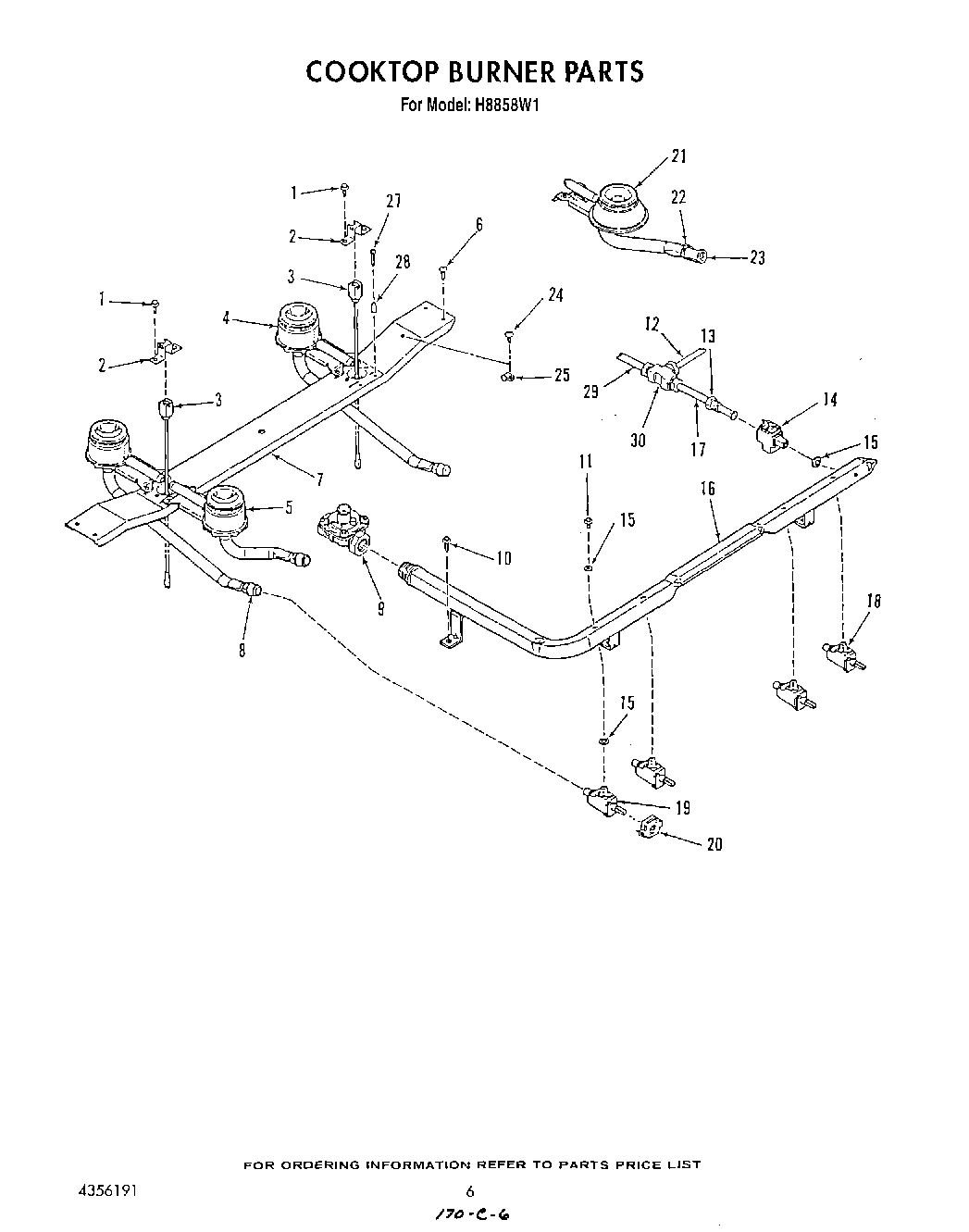

H8858W1 05 – COOK TOP BURNERadmin2025-04-26T11:24:04+00:00H8858W1 05 – COOK TOP BURNER
Products
| Position | Product |
|---|
| 1 | WP489128 Whirlpool Refrigerator Screw |
| 2 | Bracket-Ignitor (Lt or Rt) |
| 3 | Electrode (Left) |
| 3 | Electrode (Right) |
| 4 | Burner-Rear, Lt. or Rt. (Incl. No.8) |
| 5 | Burner, Front-Lt. or Rt. (Incl. No.8) |
| 6 | Screw No.6-20x3/8 |
| 7 | Support, Top Burner |
| 8 | Air Shutter (3) |
| 9 | Regulator-Pressure |
| 10 | SCREW |
| 11 | Screw, Mounting-1 Each-illus. 10 & 20 |
| 12 | Tubing 3/8``, (Control Valve to tee) |
| 13 | Nut, Inverted 3/8 |
| 14 | Valve, Shut Off |
| 15 | Seal, Valve-1 ea. Illus. 10 & 20 |
| 16 | Manifold |
| 17 | Tubing, 3/8`` |
| 18 | Gas Valve, Right Front (Inc`s No.11) |
| 19 | Gas Valve, Rt Rear Lt. Frt, Lt. Rear (Inc`s No.11) |
| 20 | WP4330739 Whirlpool Igniter Switch |
| 21 | Rt. Front Burner (Inc`s 22 & 23) |
| 22 | Screw-Adjustment, (Air Shutter) |
| 23 | Air Shutter |
| 24 | Rivet |
| 25 | Clamp |
| 27 | Screw No.6-32x7/8 |
| 28 | Eyelet |
| 29 | Tubing 3/8`` (Tee To Control Valve) |
| 30 | Fitting |
