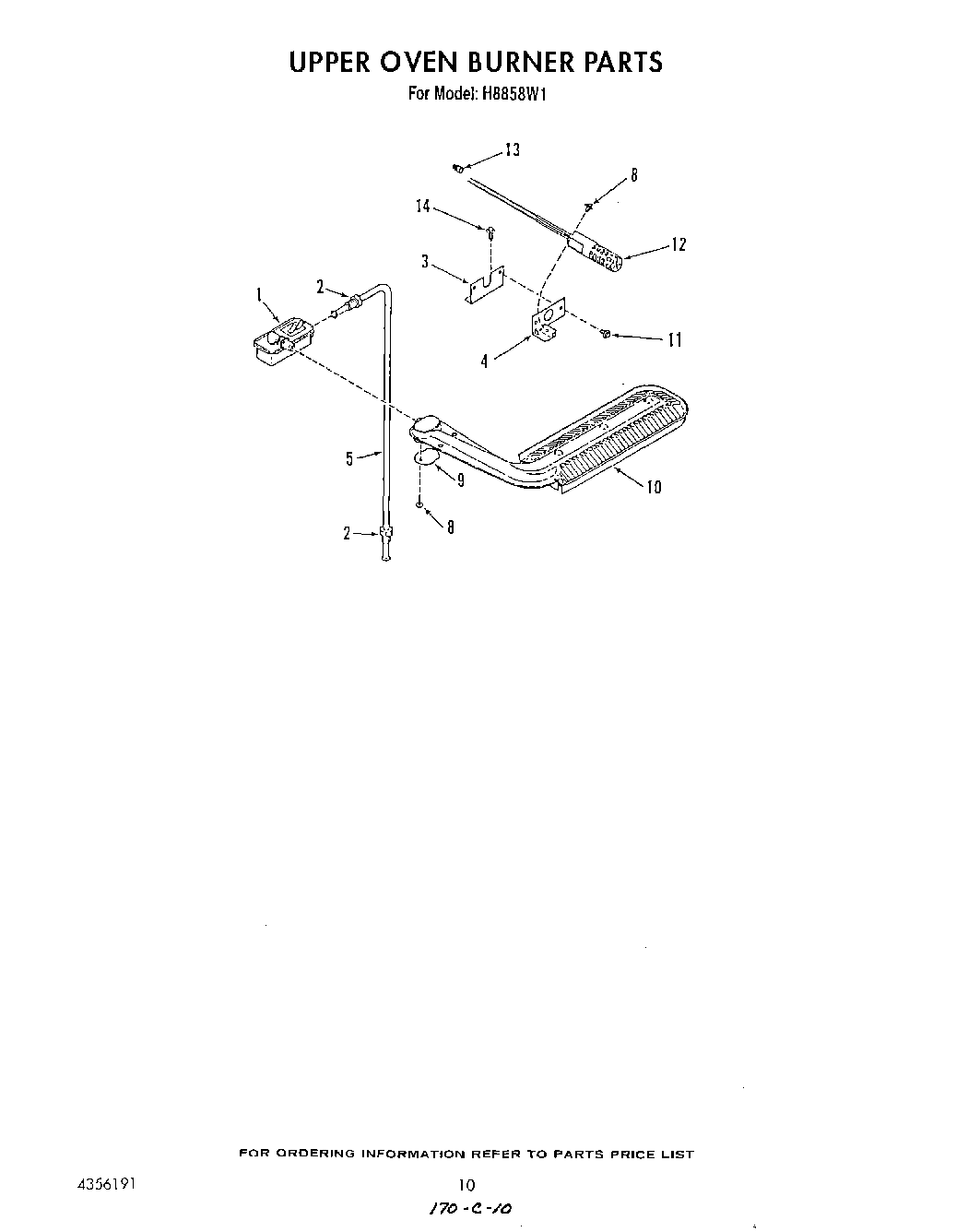

H8858W1 08 – UPPER OVEN BURNERadmin2025-04-26T11:25:51+00:00H8858W1 08 – UPPER OVEN BURNER
Products
| Position | Product |
|---|
| Repair Parts List |
| 1 | Valve, Control |
| 2 | Nut, Inverted 3/8 |
| 3 | Bracket, Igniter |
| 4 | Bracket, Igniter |
| 5 | Tubing 3/8`` (Tee To Control Valve) |
| 8 | Screw No.10-32x1/4 |
| 9 | Air Shutter |
| 10 | Oven Burner |
| 11 | Screw, No.10 x 3/8 |
| 12 | Ignitor-Bake/Broil |
| 13 | WP4323866 Whirlpool Connector |
| 14 | Harness, Wire (Igniter) |
| 14 | Harness, Wire (Main - Lower) |
| 14 | Harness, Wire (Main - Upper) |
| 14 | Harness, Wire (Switches, Valve) |
| 14 | W10850756 Whirlpool Screw |
