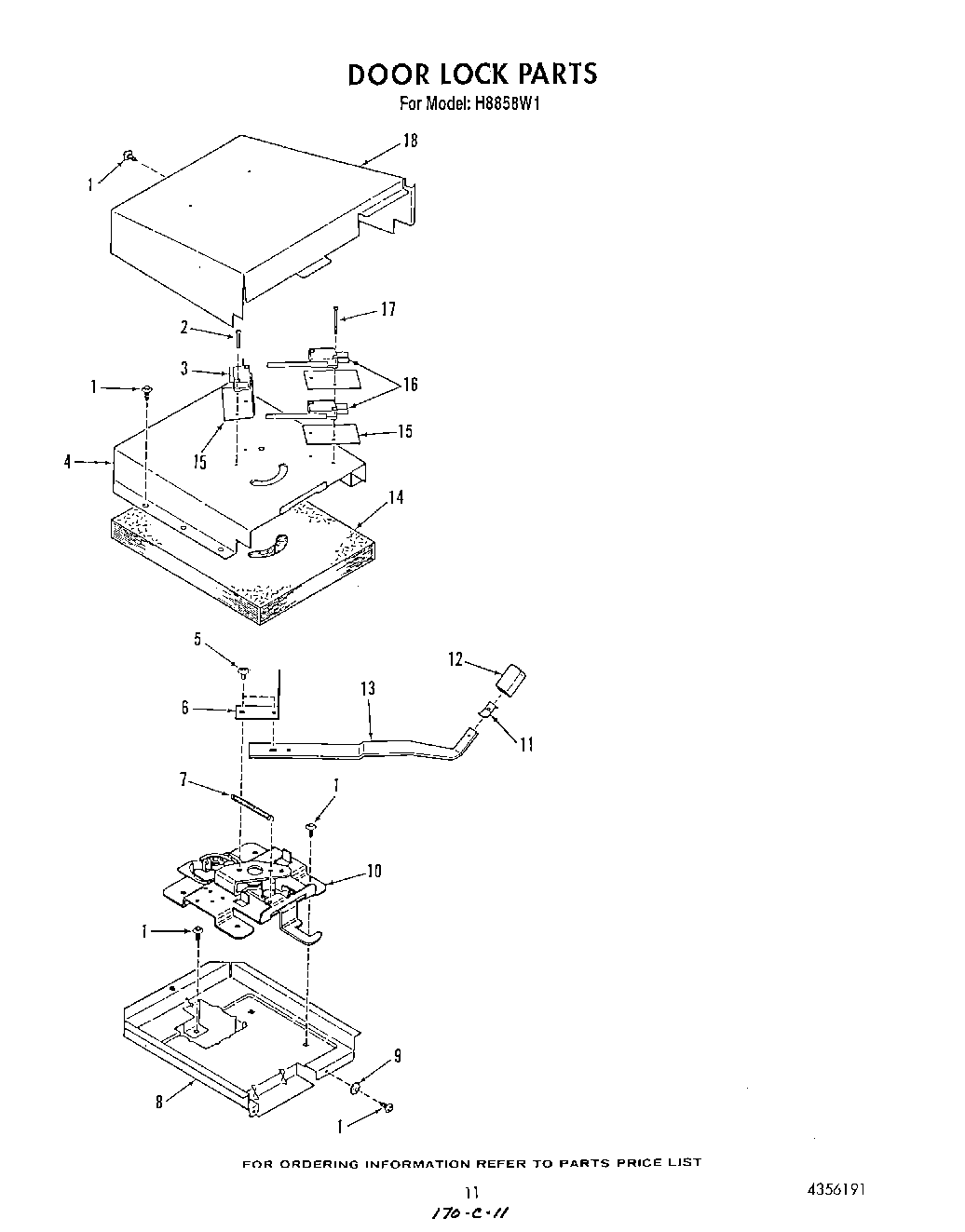

H8858W1 09 – DOOR LOCKadmin2025-04-26T11:24:05+00:00H8858W1 09 – DOOR LOCK ProductsPositionProduct1SCREW2Screw No.4-40x11/163Switch, Micro4Cover, Lock Box5Screw, No.10-24 x 1/46Extension, Handle7Spring8Box, Lock9Washer10Latch Assembly (Inc`s No.7)11Clip12Knob, Lock13Handle, Latch14Insulation15Insulator16Switch, Micro17Screw, No.4-40 x 1 9/1618Cover, Wire
